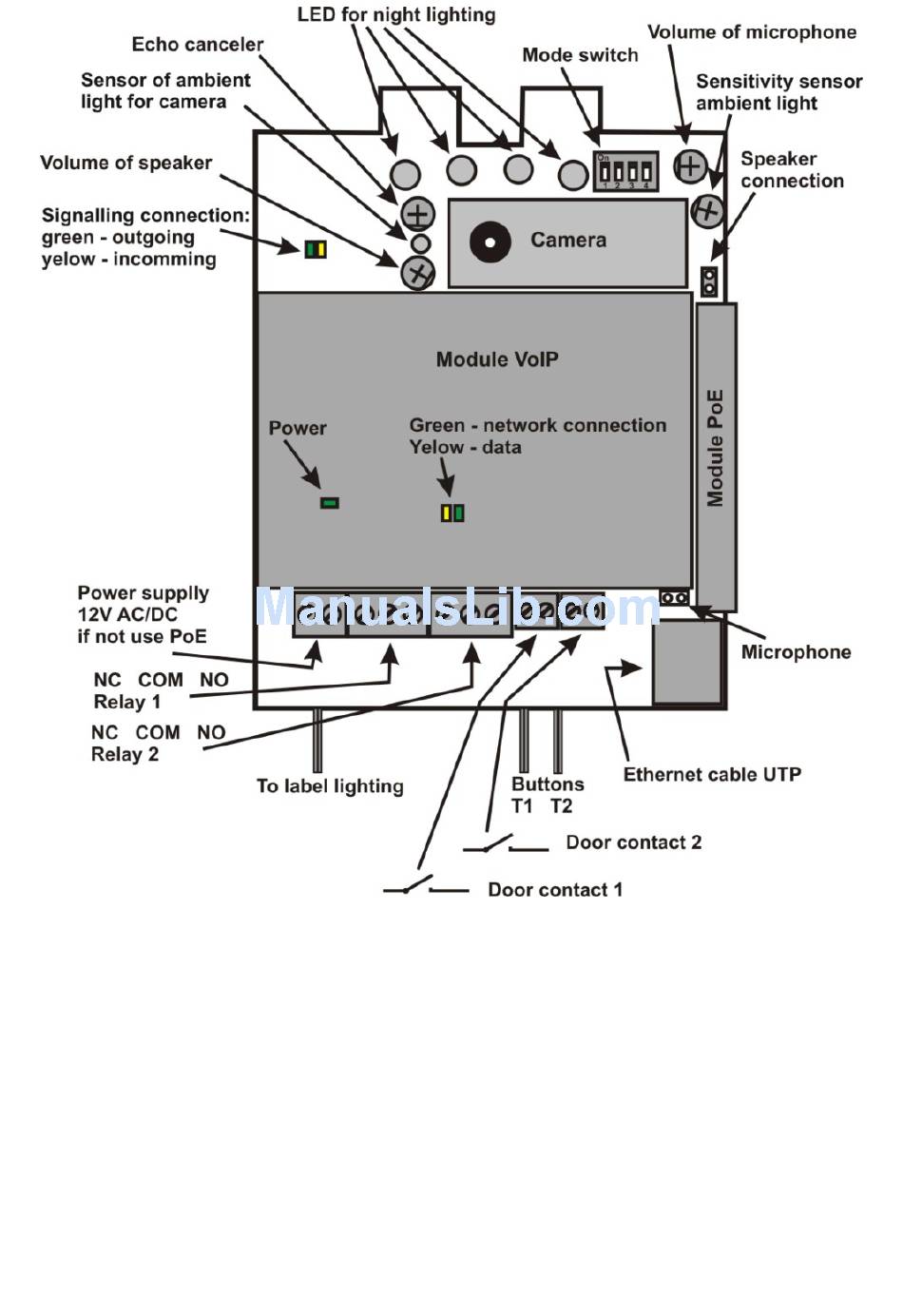

Picture 1 Basic module - motherboard
The connection of relay contact terminals is shown on pict. 2. The "NO"
designation means an idle-disconnected contact, "COM" means a pin contact
(middle) and "NC" means an idle-connected contact. The contacts of both
switches are galvanically isolated each other and from other guard circuits. The
variants of connection are shown on picture. 3 and 4.
The camera is mounted so that it can be tilted in the vertical direction (up-
down) so that optimal image occupy space in front of, or granted for the
installation of disabled people.
8
IPDP - installation and operating instructions
