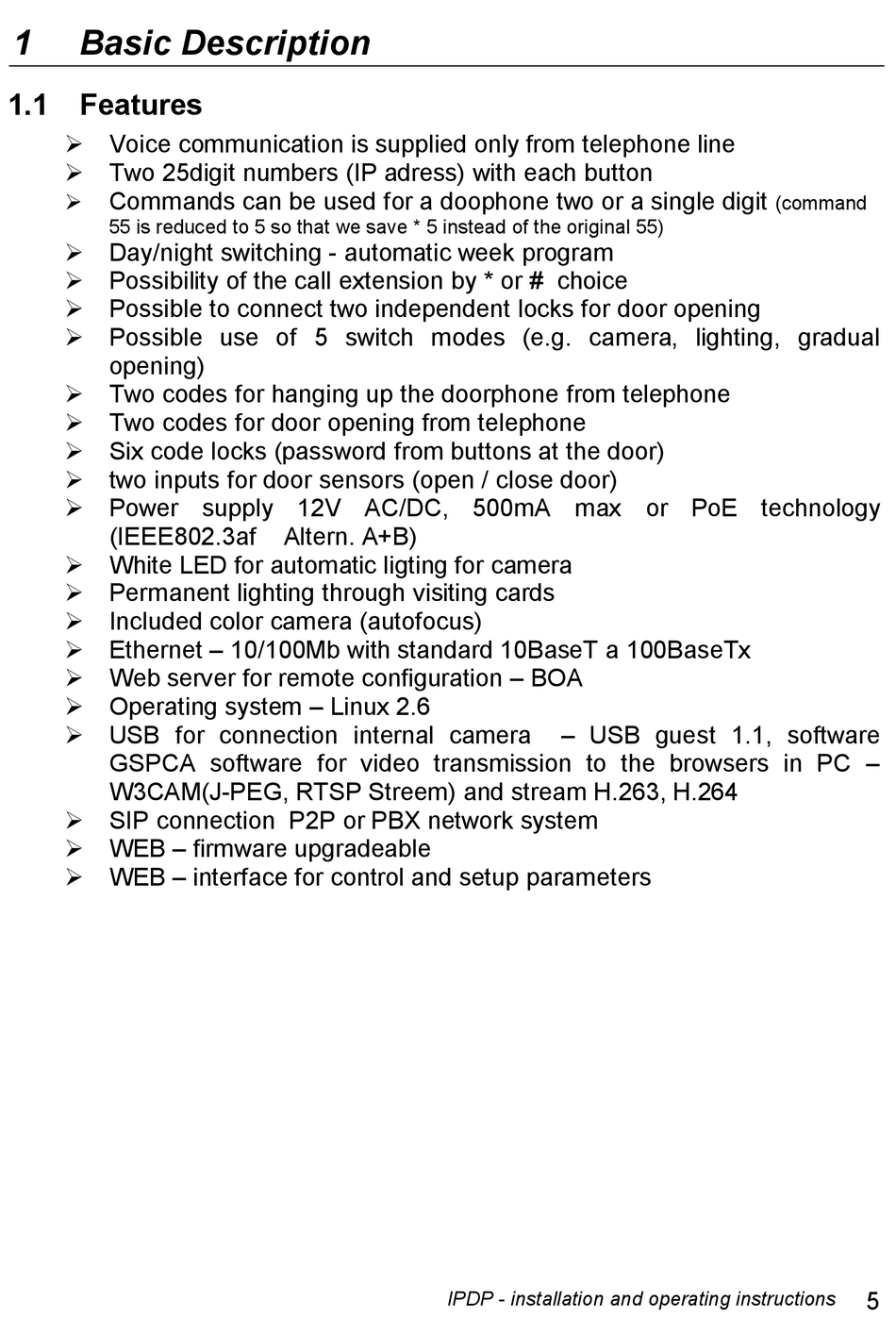

Basic Description; Features - Alphatech Slim IPDP – 01 Installation And Operating Instructions Manual

1

Basic Description

1.1 Features

 Voice communication is supplied only from telephone line
 Two 25digit numbers (IP adress) with each button
Commands can be used for a doophone two or a single digit

55 is reduced to 5 so that we save * 5 instead of the original 55)
 Day/night switching - automatic week program
 Possibility of the call extension by * or # choice
 Possible to connect two independent locks for door opening
 Possible use of 5 switch modes (e.g. camera, lighting, gradual
opening)
 Two codes for hanging up the doorphone from telephone
 Two codes for door opening from telephone
 Six code locks (password from buttons at the door)
 two inputs for door sensors (open / close door)
 Power supply 12V AC/DC, 500mA max or PoE technology
(IEEE802.3af
 White LED for automatic ligting for camera
 Permanent lighting through visiting cards
 Included color camera (autofocus)
 Ethernet – 10/100Mb with standard 10BaseT a 100BaseTx
 Web server for remote configuration – BOA
 Operating system – Linux 2.6
 USB for connection internal camera
GSPCA software for video transmission to the browsers in PC –
W3CAM(J-PEG, RTSP Streem) and stream H.263, H.264
 SIP connection P2P or PBX network system
 WEB – firmware upgradeable
 WEB – interface for control and setup parameters
Altern. A+B)
IPDP - installation and operating instructions
– USB guest 1.1, software
(command
5
