3.2.3 All about relays

After making changes use the save changes button.

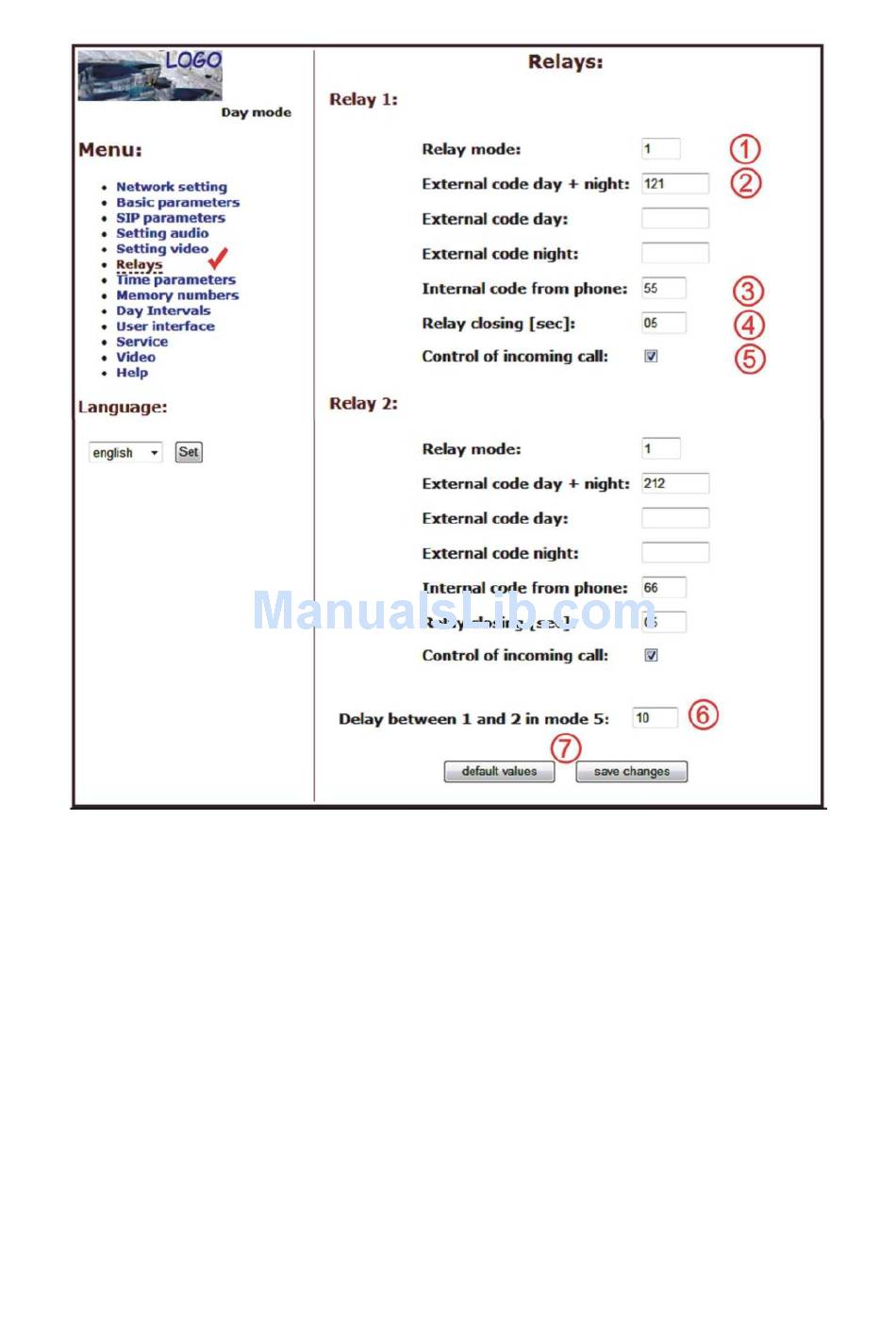

1. Relay mode:
=1 switch mode – it will close on command or password for period t
(used for electrical locks, gate opening etc.)
=2 camera mode – it will close by guard pick up and open by hanging up.
=3 lighting mode – it will close by guard pick up and stay closed even for
period t
1/2
=4 bell mode – it will close after button pressing and open after period t
(used for e.g. external bell or horn connections).
=5 gradual opening mode – in this mode the only relay 2 will be set
together with relay 1 set to mode 1. The relay 1 is activated for period t
then the time t
activated for t
Note: The only relay 1 can be activated from phone and all sequence started.
Besides that the relay 2 can be separately activated from buttons by password.
after guard hanging up.
is proceeding before relay 2 closing. Then the relay 2 is
