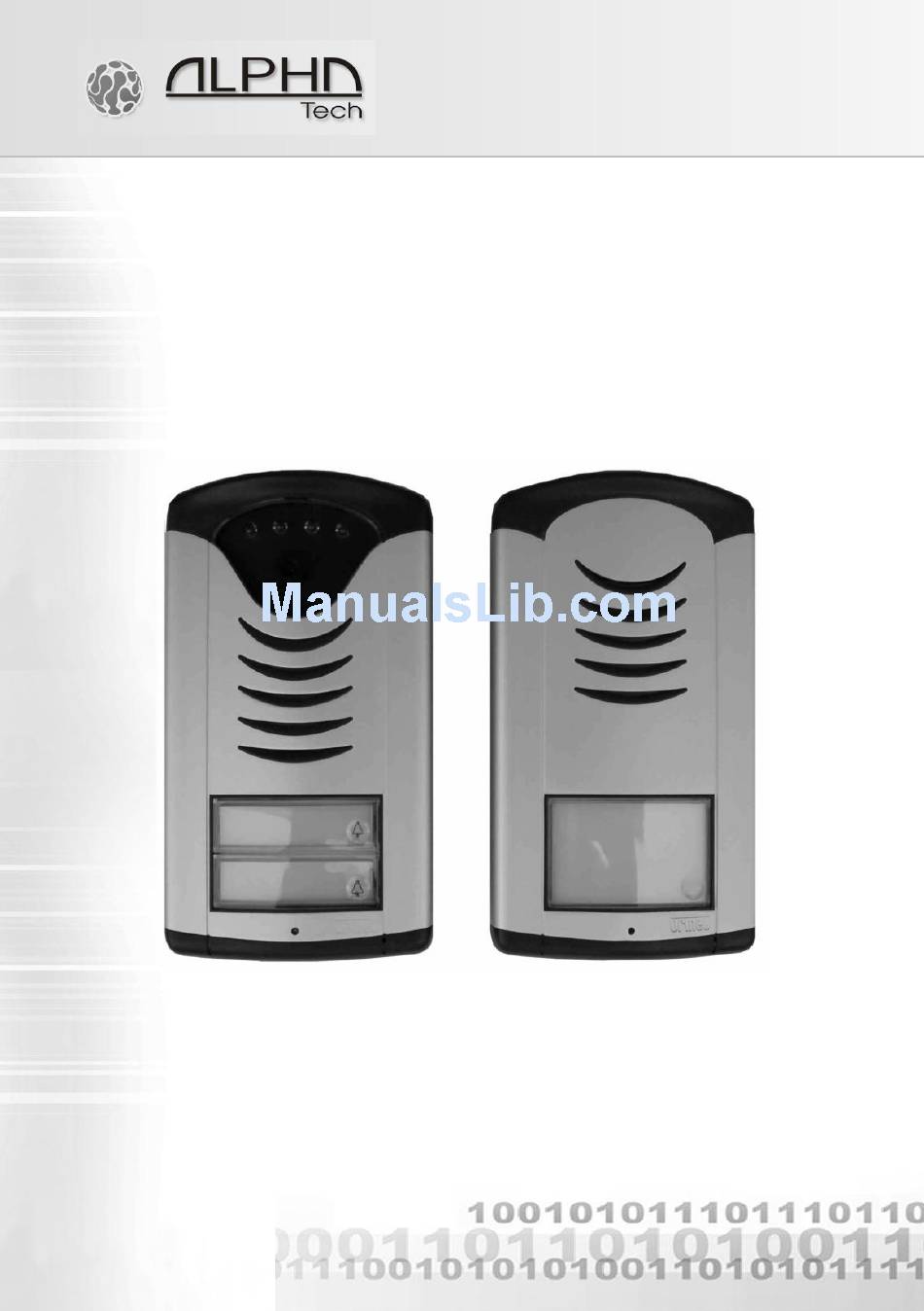

Page 1: Doorphone Voip

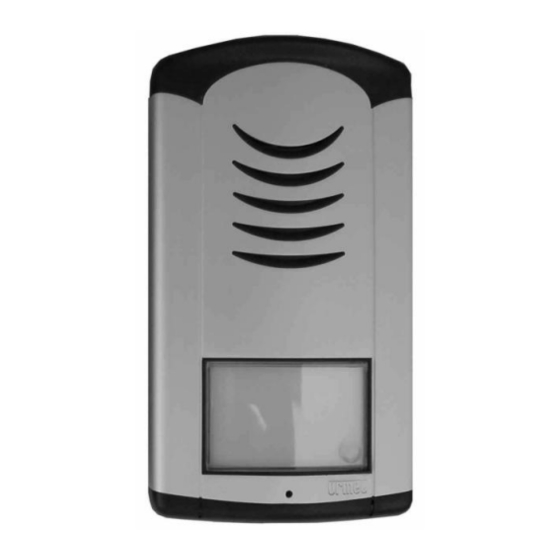

s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz Door Phone VoIP IPDPS – 01C IPDPS – 02C IPDPS – 01 IPDPS – 02 User manual... - Page 2 Welcome We congratulate you on purchase of “DoorPhoneSlim VoIP” (VoIP = Voice over IP), which is the improved version of successful “New DoorPhone” (NUDV). This DoorPhone VoIP will widely manage to satisfy your needs of communication with persons at the building front door or your company entry, or family house doorway.
-
Page 3: Table Of Contents
Table of Contents DOORPHONE VOIP ....................1 BASIC DESCRIPTION ..................4 ...................... 4 EATURES ..................5 ODULE SSEMBLY ..................5 ODULE EATURES 1.3.1 IPDPS Basic Module ................5 Connect to Network – Ethernet ..............8 1.3.2 IP A ......... 9 NSTALLATION OF HONE SSEMBLY... -
Page 4: Basic Description
Basic Description 1.1 Features Voice communication is supplied only from telephone line Two 16digit numbers (IP adress) with each button Day/night switching Possibility of the call extension by * or # choice Possible to connect two independent locks for door opening ... -
Page 5: Module Assembly
1.2 Module Assembly The IPDPS are the basic modules with color camera IPDPS-01/02C or without camera IPDPS-01/02. IPDPS-01 IPDPS-02 IPDPS-01C IPDPS-02C 1.3 Module Features 1.3.1 IPDPS Basic Module The IPDPS basic module assembling from modulus IP and motherboard. Positioning setting elements and connectors is on picture 1. For IPDPS is necessary used the AC voltage of min. - Page 6 Picture 1 Basic module - motherboard The connection of relay contact terminals is shown on fig. 1. The “NO” designation means an idle-disconnected contact, “COM” means a pin contact (middle) and “NC” means an idle-connected contact. The contacts of both switches are galvanically isolated each other and from other guard circuits.
- Page 7 Picture 2 Examples of relays connections – Setting voice communication position trimmers are presetting from manufacture and in majority case agree with, therefore changes setting altering only in necessary case Basic position of trimmers, sense of rotation and meaning trimmers are illustration on picture 3.
-
Page 8: Connect To Network - Ethernet
DIP switch setting basic operation and default setting. See on picture 4. Picture 4 DIP switch settings 1.3.2 Connect to Network – Ethernet IPDP - installation and operating instructions... -
Page 9: Installation Of Doorphone Voip Assembly
1.4 Installation of DoorPhone VoIP Assembly 1.4.1 Open and close the cover of IPDPS 1.4.2 Dismounting lighting of nameplate IPDP - installation and operating instructions... -
Page 10: Assembly Ipdps On The Wall
1.4.3 Assembly IPDPS on the wall The installation is made by screwing to the wall by means of dowels. 1.4.4 Return lighting name plate after mounting on the wall. IPDP - installation and operating instructions... -
Page 11: Change Of Nameplates
1.4.5 Change of nameplates Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on www.alphatechtechnologies.cz). IPDP - installation and operating instructions... -
Page 12: Focus Camera And Description Of Front Panel
1.5 Focus camera and description of front panel If is need focus picture from camera, so everything is illustration on picture basic module on Picture 5 . Picture 5 camera in IPDPS 1. VoIP module 2. connect microphone 3. connect speaker 4. -
Page 13: Doorphone Voip Operation
2 DoorPhone VoIP Operation 2.1 Signaling Overview The all-purpose guard signals an acoustic conditions they may occur during operation. Another signaling can be done by means of red LED (placed under microphone hole). You can listen the signaling samples in Nset setting program. -
Page 14: Person Inside Object
set in m=1 or m=5 modes) to the period given by seting in parameters. Then it will hang up. 2.3 Person Inside Object The person inside object is considered a person that is in phone contact with DoorPhone. 2.3.1 Outgoing Call The outgoing call is the call from DoorPhone (caused by visitor). -
Page 15: Programming Of Parameters
3 Programming of Parameters 3.1 Basic VoIP settings 3.1.1 Choosing a mode and login It is important to choose a DoorPhone mode first. The DoorPhone can work in the PeerToPeer mode or SIP server mode. The mode setting can be made by a relevant switch (DIP switch see on picture 8). -
Page 16: Language Option
3.1.2 Language option Language setting can be made in a menu on the left panel. 3.1.3 Network settings Network settings are located in the Network seting menu item. It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button. - Page 17 DHCP configuration: After making changes click on a save and restart button. 1 – Enable/disable ethernet settings via DHCP 2 – show automatic DHCP generate IP adress and othet settings 3 – Default value – presetings to the firm settings. After making changes click on a save and restart button (display screen - see page 20).
-
Page 18: Peer To Peer Or Sip Server Connection
3.1.4 Peer to peer or SIP server connection The DoorPhone can be set to the peer to peer (P2P) mode or to the SIP server mode by DIP switch (page 15). In P2P mode DoorPhone calling IP adress – in memory buttons (page 25). -
Page 19: Setting Video
3.1.6 Setting video After making changes use the save changes button. 1 – Resolution display video 2 – Number picture per second (frequency restoring picture) 3 – Setting next parameters of camera 4 – Default value – presetings to the firm settings. After making changes use the save changes button. -
Page 20: Service Settings
3.1.7 Service settings 1 – display current version of firmware in module VoIP and in module doorphone, button switching if is has save history events in basic or enhanced mode - it is important to analyses mistakes and problems. This file it is possible save to PC by click on download log file. -
Page 21: Setting Doorphone Parameters
3.2 Setting DoorPhone parameters 3.2.1 Basic Parameters After making changes use the save changes button. 1 – Mode of DoorPhone choice selects number per Day/Night DoorPhone mode or selects numbers of the first and second groups. 2 – Sign for call extension * or # (10sec before call end the DoorPhone will send a notice, then the call may be extended) 3 –... -
Page 22: All About Relays
3.2.2 All about relays After making changes use the save changes button. – Relay mode: =1 switch mode – it will close on command or password for period t (used for electrical locks, gate opening etc.) =2 camera mode – it will close by guard pick up and open by hanging up. =3 lighting mode –... - Page 23 2 – password for relay closing from buttons or keyboard [2 to 6 digits]. Total 6 passwords, they are controlled by Day/Night; the combination is entered either by DoorPhone buttons (first 1/2 buttons) or from attached keyboard (after pressing of key symbol). The relay closing influences the set switch mode and Day/Night switchover.
-
Page 24: Time Parameters
3.2.3 Time Parameters After making changes use the save changes button. 1 – max. time, for which the DoorPhone is hanging up, this time can be extended during call by sign choice from telephone (* or #) – see page 21. 2 –... -
Page 25: Direct Dialing - Memories
3.2.4 Direct Dialing – Memories After making changes use the save changes button. 1 – telephone number up to 16 digits, we want to store. The numbers are the numbers of the first group or numbers of Day mode. In default setting is table memoirs empty. -
Page 26: Technical Parameters
4 Technical Parameters 4.1 Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported 300Hz – 3400 Hz Band width Power supply of lighting through, 12Vss ± 2V , 10-12Vst ± 2V switches and heating Max. consumption 300mA 12Vss Max. - Page 27 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 28 s.r.o LPHATECH ECHNOLOGIES Jeremenkova 88, Praha 4, Czech Republic www.alphatechtechnologies.cz s.r.o. LPHATECH ECHNOLOGIES Jeremenkova 88 140 00 Praha 4 Czech Republic VAT: CZ27577350 Company is registered in the Commercial Register administered by the Municipal Court in Prague, Section C, Record 116886 Banking details: Komerční...
