1.3 Module Assembly

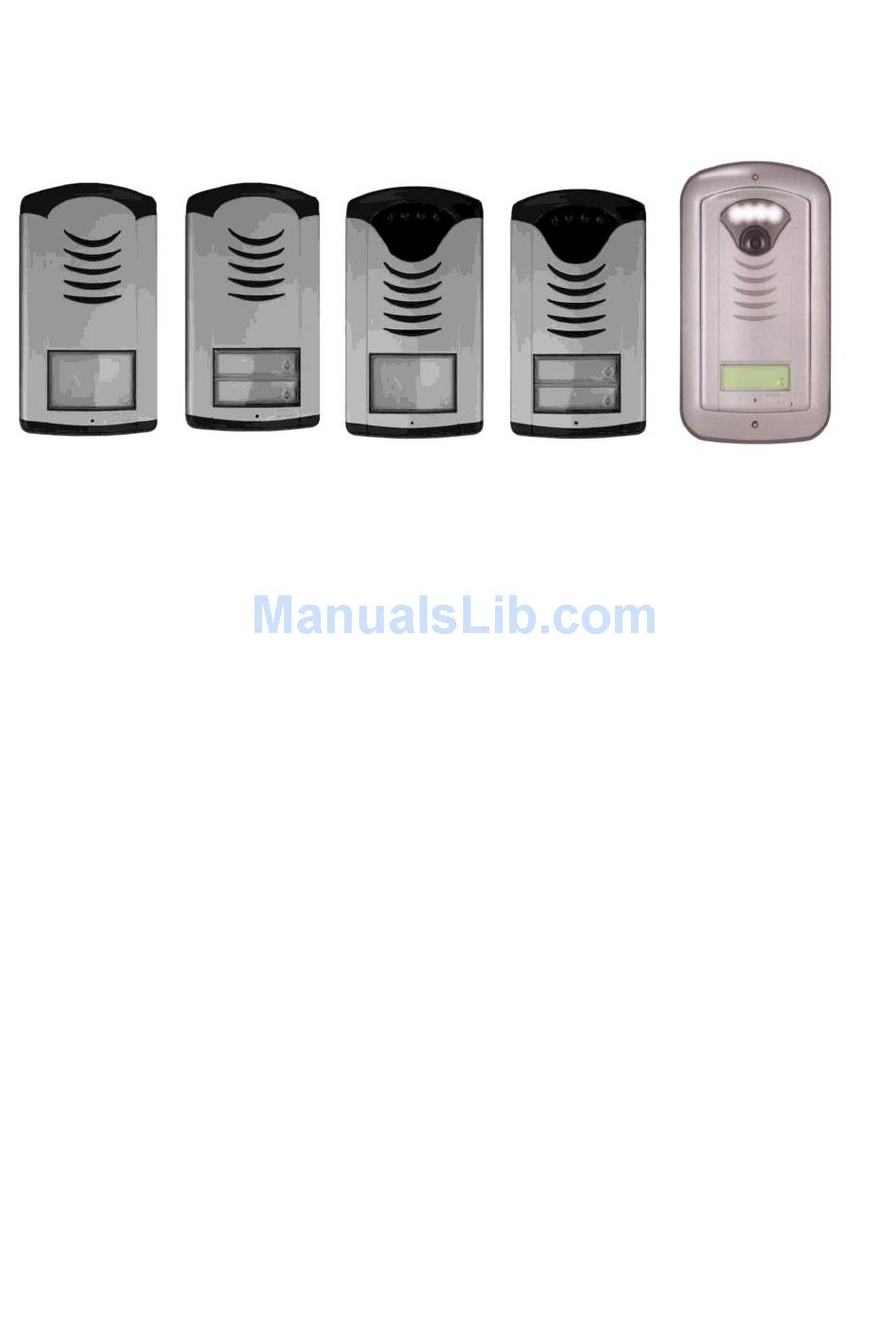

The Slim IPDP is supply in two basic models with color camera Slim
IPDP-01/02C or without camera Slim IPDP-01/02. Antivandal version Slim
IP01C Antivandal is made from stainless steel and it is designed as
antivandalism solution.
Slim IPDP-01

1.4 Module Features

1.4.1 Slim IPDP Basic Module

The Slim IPDP basic module includes IP module, PoE mudul, camera
module and motherboard. Schematics of each components is shown on picture
1 ( page 8).
We recommend use for powering of Slim IP DP the PoE technology or AC
voltage min.11Vst - max.15Vst eventually DC voltage min.12Vss - max.18Vss.
This voltage you connect to screws "12V". Consumption of Slim IPDP is
max.300mA. This power supply is used also for powering of el.locks. You have
to consider consumption of el.locks . In practise is mostly recommended power
supply AC/DC 12V/1A ÷ 2A.
PoE (Power over Ethernet). When you use IP Switch with PoE or you use PoE
power (small box inserted into UTP cable connection) then you don't need 12V
for door phone operation. When is used el.lock for door opening and you want
to be powered by PoE then you must use low consumption lock (12V/350mA
max). Then for lock powering you use screw on card ( card lighting) ( picture 4
at page 10). When you use normal lock then you must use 12V power supply (
in circuit with relay - contact).
Slim IPDP-02 Slim IPDP-01C
The Slim IPDP includes circuit for powering via UTP cable –
Slim IPDP-02C
IPDP - installation and operating instructions
Slim IPDP-01C
antivandal
