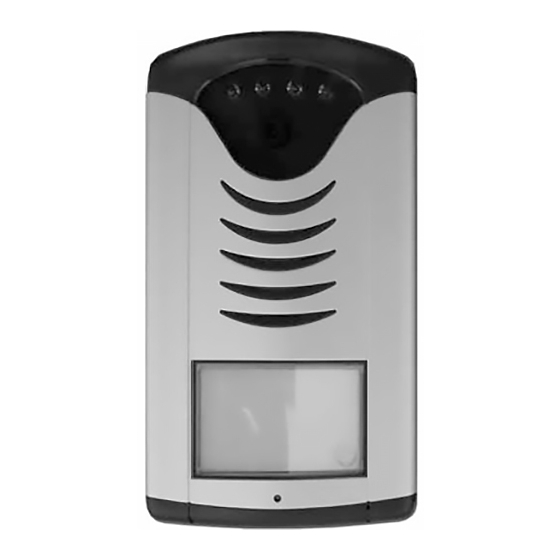

- Page 1 DoorPhone VoIP Slim IPDP – 01 Slim IPDP – 02 Slim IPDP – 01C Slim IPDP – 02C Slim IPDP – 01C antivandal Installation and Operating Instructions...
- Page 3 Manual version V5.9 12-8-2010 Version of firmware V1.39 and V5.8 Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 Tel/fax: 272103334 www.alphatech.cz info@alphatech.cz...
-
Page 4: Table Of Contents
Table of Contents BASIC DESCRIPTION ..................5 ...................... 5 EATURES ....................6 ERMINOLOGY ..................7 ODULE SSEMBLY ..................7 ODULE EATURES 1.4.1 Slim IPDP Basic Module ................. 7 IP A ........12 NSTALLATION OF HONE SSEMBLY 1.5.1 Open and close the cover of Slim IPDP ..........12 1.5.2 Dismounting lighting of nameplate ............ -
Page 5: Basic Description
Basic Description 1.1 Features Two 25digit numbers (IP adresses) under each button ( includes *, #) DAY/NIGHT switching – automatically or manually Possibility to dial * or # to prolong the communication Possibility to connect 2 independent locks ( magnetic, electrical) for door opening ... -
Page 6: Terminology
1.2 Terminology Ethernet is a family of frame-based computer networking technologies for local area networks (LANs). A local area network (LAN) is a computer network covering a small physical area, like a home, office, or small group of buildings, such as a school, or an airport 10BASE-T runs over four wires (two twisted pairs) on a Category 3 or Category 5 cable. -
Page 7: Module Assembly

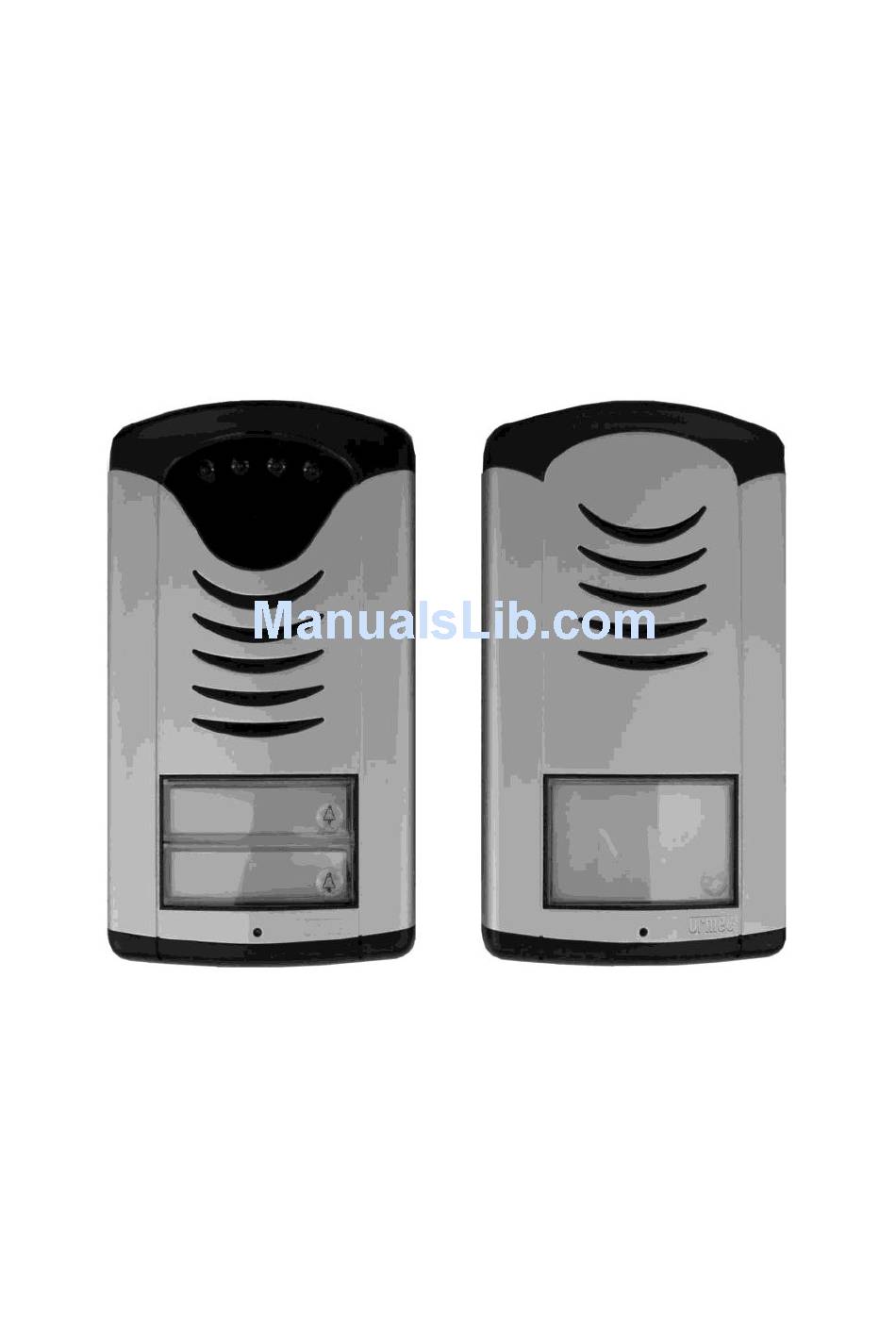

1.3 Module Assembly The Slim IPDP is supply in two basic models with color camera Slim IPDP-01/02C or without camera Slim IPDP-01/02. Antivandal version Slim IP01C Antivandal is made from stainless steel and it is designed as antivandalism solution. Slim IPDP-01 Slim IPDP-02 Slim IPDP-01C Slim IPDP-02C... - Page 8 Picture 1 Basic module - motherboard The relay connection is shown on pict. 2.(page 9) The “NO” designation means an idle-disconnected contact, “COM” means a pin contact (middle) and “NC” means an idle-connected contact. The contacts of both relays are galvanically isolated each other and from other circuits as well.
- Page 9 Picture 2. Connect Slim IPDP IPDP - installation and operating instructions...
- Page 10 Picture 3 Examples of relays connection Picture 4 Examples of relays connection powered by PoE ATTENTION - lock is must be low power consumption, max 350mA. IPDP - installation and operating instructions...
- Page 11 Setting voice communication – trimmer position is done by manufacturer major installations it meets volume inquiry. Therefore changes of trimmer setting please do in necessary cases only. Basic position of trimmers, sense of rotation and meaning trimmers are illustration on picture 5. (page 11).
-
Page 12: Installation Of Doorphone Voip Assembly
1.5 Installation of DoorPhone VoIP Assembly 1.5.1 Open and close the cover of Slim IPDP IPDP - installation and operating instructions... -
Page 13: Dismounting Lighting Of Nameplate
1.5.2 Dismounting lighting of nameplate 1.5.3 Assembly Slim IPDP on the wall The installation is made by screwing to the wall by means of dowels. IPDP - installation and operating instructions... -
Page 14: Return Lighting Name Plate After Mounting On The Wall
1.5.4 Return lighting name plate after mounting on the wall. 1.5.5 Change of nameplates Each button has its separate nameplate hold by means of plastic flag (see figure). The paper nameplates can be printed from Excel form (to be downloaded on http://www.alphatech.cz/manualy/jmenovky1128_9.xls. IPDP - installation and operating instructions... -
Page 15: Doorphone Voip Operation
2 DoorPhone VoIP Operation 2.1 Signaling Overview The IPDP is signalling acoustically stages during its operation which can happen. Further signalling is by red LED (placed under microphone hole). Condition Tones Tone frequency –▄–■–▀– Line OFF HOOK 425-850-1275 Lighting –▀–■–▄ Line ON HOOK 1275-850-425 Light off... -
Page 16: Person Inside Building
Manual switching DAY/NIGHT is by code which is programmed in “switching codes” parametr. mode 2 numbers groups = first press of button – always dials number saved in 1 column ( 1st group) . When you press the same button again, when busy tone is detected or when preprogrammed number of rings is over the IPDP dials number from 2 column ( 2nd group). - Page 17 IPDP - installation and operating instructions...
-
Page 18: Programming Of Parameters
3 Programming of Parameters 3.1 Basic VoIP settings 3.1.1 Choosing a mode and login Very important is select firstly mode of IPDP in which will work inside IP network. It is P2P (peer to peer) or IPDP is registrated to SIP server. It is selected by DIP switch 2 –... - Page 19 Picture 8 First site - video from camera Enter user name and password. User name is „admin“, default password is „1234“. See picture 9. Picture 9 Login to setup IPDP - installation and operating instructions...
-
Page 20: Language Option
3.1.2 Language option Language setting can be made in a menu on the left panel. How add new language is descripe on page 29 IPDP - installation and operating instructions... -
Page 21: Network Settings
3.1.3 Network settings Network settings you find at the Network seting menu . It is possible to use DHCP service (1) or you can enter IP addresses manually. Manual configuration: After making changes click on a save and restart button. 1. - Page 22 DHCP configuration: After making changes click on a save and restart button. 1. Hostname – name of doorphone for resolution in nets (e.g . when you use more doorphones – more entrance) 2. Enable/disable ethernet settings via DHCP 3. DHCP client ID is name, which using for assigning two IP address to only one MAC address (in IPDP has a sense meaning as far as will be including internal SIP server) 4.
-
Page 23: Peer To Peer Or Sip Server Connection
3.1.4 Peer to peer or SIP server connection The IPDP can operate in peer to peer (P2P) mode or as SIP client ( SIP server registration). This mode in which you desire to operate the unit is selected by DIP switch (page 17) In P2P mode the IPDP calls IP adress – saved in memory numbers (page 37). - Page 24 When you set SIP server (client) mode by DIP switch then contents of „SIP setting“ item in menu is changed. You will set different parametres than in P2P mode. After making changes do not forget click on „save changes“ button. 1.
-
Page 25: Audio Codec Setting
3.1.5 Audio codec setting After making changes do not forget click on „save changes“ button. 1. Here you select priority of audio codec usage. Voice codec is selected automatically and in SIP protocol it is confirmed by both sides. 2. DEFAULT – factory setting. After making changes click on button „ save changes“... -
Page 26: Setting Video
3.1.6 Setting video After making changes do not forget click on „save changes“ button. 1. Resolution of showing video 2. Number picture per second (frequency restoring picture ) 3. Setting next parameters of camera 1. DEFAULT – factory setting. After making changes click on button „ save changes. -
Page 27: Viewing The Video (Programme Popup)
Very efficient to see video from IPDP is using POP UP software ( UDV GUARD) for Windows. This programm including its manual is free downloadable on http://www.alphatech.cz/engl/e_ipdp.htm. as same as is always added to every unit at attached CD. The POP UP sw has except video... -
Page 28: Day Intervals
3.1.8 Day intervals They will be shown only when at Basic parametres is activated automatic switching DAY/NIGHT. ( since firmware release V 5.8). ( page 33.) After making changes do not forget click on „save changes“ button. 1. Showing of present time of internal clocks – clocks setting you perform in "Service - time server". -
Page 29: User Interface
3.1.9 User interface After making changes do not forget click on „save changes“ button. 1. Video switch ON / OFF from main page of WEB interface (mainly from security reasons, when you switch off the video then is accessable through password registration only). -
Page 30: Service Settings
3.1.10 Service settings 1. Showing of firmware release in VoIP modul and Door phone modul. The button „extended log“ switching way of savings SIP communication history in extended more details but shorter time period) or normal format. It isvery useful during fixing some problems. The button "Basic LOG" or "Extended LOG"... - Page 31 We would like notify you that text file has not standard ending or rows CR LF but LF only. To show correctly the rows we recommend use programm "PSPad". 3. Show calls report – show call report – commands only Show report of registrationsí...
-
Page 32: Restart
3.1.11 Restart IPDP - installation and operating instructions... -
Page 33: Preparation Style, Language Support
3.1.12 Preparation style, language support The file of style is including 3 files which are packed (zip) to archiv „TAR“. is example of Alphatech style. To unpack ( unzip) archiv “TAR” use here programm "PowerArchiver". First file "upload_fw.sh is head of file for style which should be not... -
Page 34: Setting Doorphone Parameters
3.2 Setting DoorPhone parameters 3.2.1 Basic Parameters After making changes do not forget click on „save changes“ button 1. Mode of numbers dial – the numbers are dialled either up DAY/NIGHT mode or from first or second group - explain on page Fel! Bokmärket är inte definierat. -
Page 35: All About Relays
3.2.2 All about relays After making changes do not forget click on „save changes“ button 1. Relay mode: =1 switch mode – it activates relay by code for certain time “time closing” (using for electrical locks, gate opening etc.) =2 camera mode – it activates relay (on) when door phone picks up and deactivate relay ( off) when door phone hang up. - Page 36 delay” and after that is activated Relay 2 automatically for certain time “time closing 2”. Then Door phone hangs up. Note: The only relay 1 can be activated from phone and all sequence started. Besides that the relay 2 can be separately activated from buttons by password. 2.
-
Page 37: Time Parameters
3.2.3 Time Parameters After making changes do not forget click on „save changes“ button 1. max. time of call duration. It might be prolong by dialling characters (* or #) from phone. (page 33.). 2. Number of incoming call rings before picks up. Adjustable from 1 to 9. After detection of first ring starts flashing LED on front panel. -
Page 38: Direct Dialing - Memories
3.2.4 Direct Dialing – Memories After making changes do not forget click on „save changes“ button 1. Button number (memories) – phone number up 25 digits we desire to save. Numbers saved in this column are numbers from first group, or numbers from DAY mode. -
Page 39: Technical Parameters
4 Technical Parameters 4.1 Electrical Parameters Parameter Value Conditions Communication interface Ethernet 10BaseT, 100BaseTx VoIP protocol supported Audio G.711u, G.711a, G.726-32b, GSM série JPEG, MJPG, stream H.263 Video (H.264 – end 2010) 300Hz – 3400 Hz Band width Power supply - adapter 12Vss ±... -
Page 40: Parameters Of Video
4.3 Parameters of video Video for WEB: InternetExplorer - (batch JPEG pictures - port 80) is used over and over again repeated http request ADRESA/video.jpg Mozilla, opera, Firefox … and programme PopUp (UDVguard) - (MJPEG stream - port 80) is used http request ADRESA/video.mjpg (sometimes it is necessary reload than it start up).This video is continuous and has smaller load nets. - Page 41 Guarantee conditions: The product was shop-checked. The producer guarantees that this product will keep the features described in these operating instructions in the course of guarantee provided that the user will be handled with it as described in the operating manual. The guarantee will be extended by period of possible guarantee repair.
- Page 43 © JR 2008-10 version V5.9 VIII/10...
