SBC81700 VIA V4 SBC User's Manual

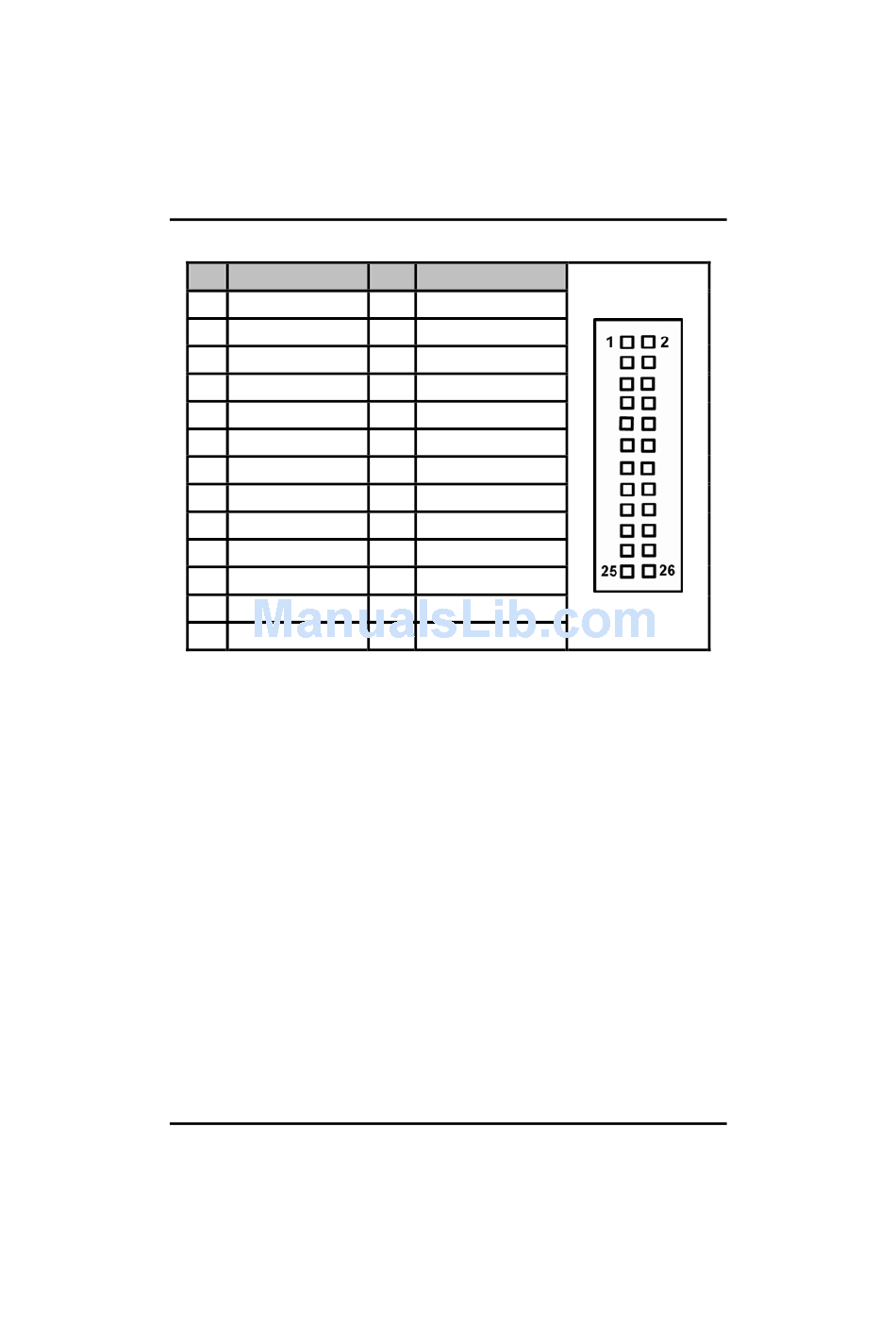

Pin Signal
1 Strobe#
3 Data 0
5 Data 1
7 Data 2
9 Data 3
11 Data 4
13 Data 5
15 Data 6
17 Data 7
19 Acknowledge#
21 Busy
23 Paper Empty#
25 Printer Select
20
Pin Signal
2 Auto Form Feed#
4 Error#
6 Initialize#
8 Printer Select In#
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 NC
Jumpers and Connectors
