SBC81700 VIA V4 SBC User's Manual

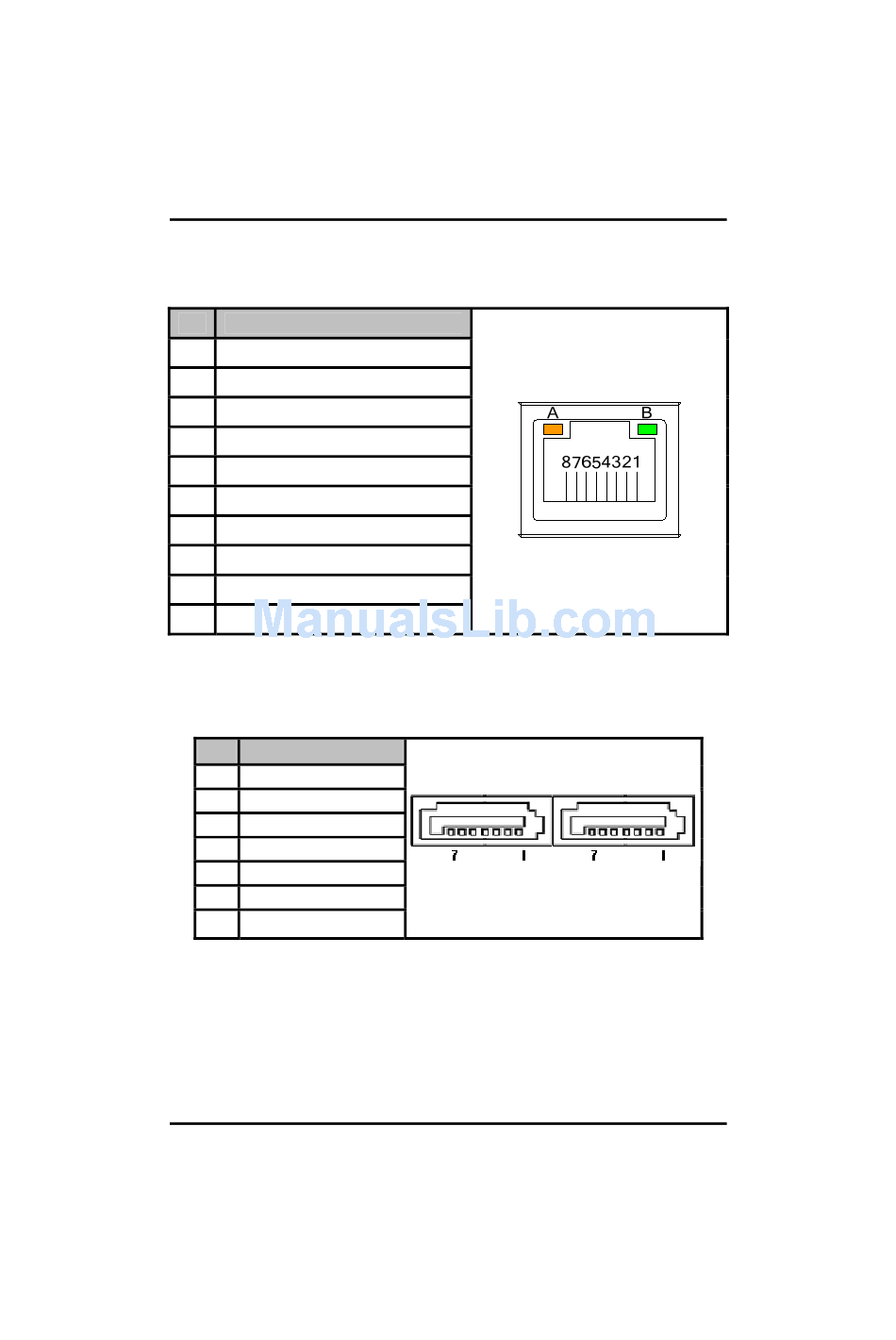

2.4.7 Ethernet RJ-45 Connectors with LED (CN10,
CN13)
The RJ-45 connector CN10 and CN13 are for Ethernet.
Pin Signal
1 Tx+ (Data transmission positive)
Tx- (Data transmission negative)
2
Rx+(Data reception positive)
3
4 RJ45 termination
5 RJ45 termination
Rx- (Data reception negative)
6
RJ45 termination
7
RJ45 termination
8
Active LED
A
B 100 LAN LED

2.4.8 SATA Connector (CN11)

This SATA connector is for high-speed SATA interface ports and it can
be connected to hard disk devices.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 RX-
6 RX+
7 GND
16
Jumpers and Connectors
