SBC81700 VIA V4 SBC User's Manual

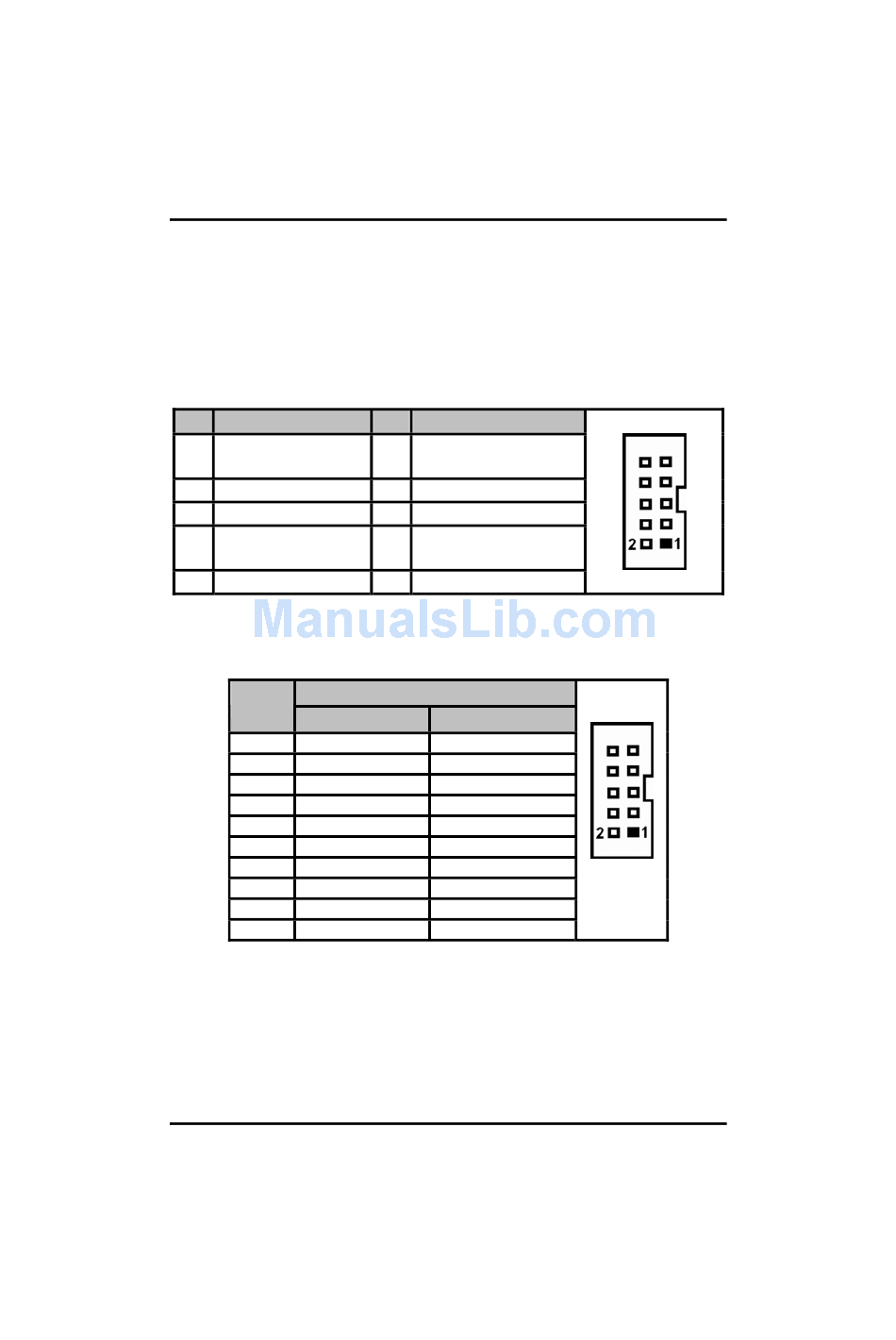

2.4.4 Serial Port Interface (CN5, CN7)

The serial interface for the board consists of COM1 port (CN5) and
COM2 (CN7) to support RS-232/RS-422/RS-485.
CN5 & CN7:
The RS-232 pin assignment is listed on the following table.
Pin
Signal
Data Carrier Detect
1
(DCD)
3
Receive Data (RXD)
5
Transmit Data (TXD)
Data Terminal Ready
7
(DTR)
9
Ground (GND)
CN7:
The RS-422/485 pin assignment is listed on the following table.
Pin #
RS-422
1
TX-
2
No connector
3
TX+
4
No connector
5
RX+
6
No connector
7
RX-
8
No connector
9
GND
10
No connector
2.4.5

USB 1 ~4 Connectors (CN6, CN2)

These Universal Serial Bus (USB) connectors on this board are for
installing versatile USB interface peripherals. These are 10-pin
standard USB connectors.
14
Pin
Signal
2
Data Set Ready (DSR)
4
Request to Send (RTS)
6
Clear to Send (CTS)
8
Ring Indicator (RI)
10 NC
Signal Name
RS-485
DATA-
No connector
DATA+
No connector
No connector
No connector
No connector
No connector
GND
No connector
