Time Screen

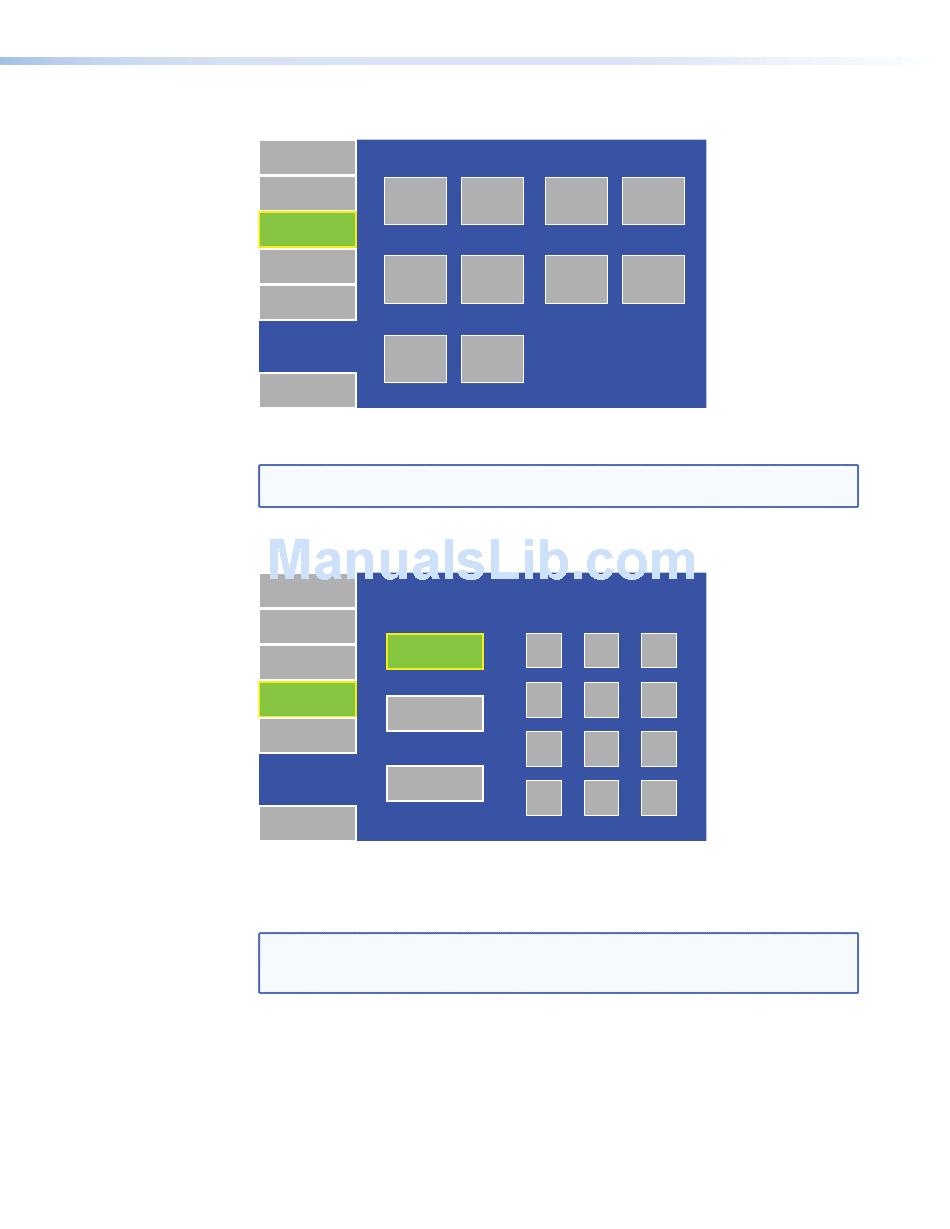

Figure 13.
Use the
NOTE:

Network Screen

Figure 14.
To set the IP Address or Subnet Mask, press the appropriate button. When one of the buttons
is selected, an on-screen keypad appears that allows the user to select digits between 0 and 9,
"Clear," or "." (dot).
NOTE:
Toggle between
This determines whether the unit will have a permanent IP address or will have one provided by
the network, when required. The default setting is Off.
Main
Month: 06
Volume
Down
Time
Day: 06
Network
Down
Video
Year: 2011
Down
Exit
Time Screen
or buttons to adjust the Month, Day, Year, Hours, and Minutes.
Down Up
The Hours value uses the 24-hour clock. For 10 am, set hours to 10; for 10 pm, set
hours to 22.
Main
IP Address
Volume
192.168.254.254
Time
Subnet Mask
Network
255.255.0.0
Video
DHCP
Off
Exit
Network Screen
The factory default IP address for the TLP 710CV is 192.168.254.254 and the
default subnet mask is 255.255.0.0. Consult your IT department to ensure these
addresses are correctly assigned.
and to enable or disable Dynamic Host Configuration Protocol (DHCP).
On Off
Hours: 13
Up Down Up
Minutes: 32
Up Down Up
Up
MAC: 00-05-A6-07-3A-55
1 2 3
4 5 6
7 9
8
. 0 Clear
