5.
Click . The Add Device screen closes. The start-up screen, which was behind it, is now
OK
visible, showing the IP Link control processor and the available ports:

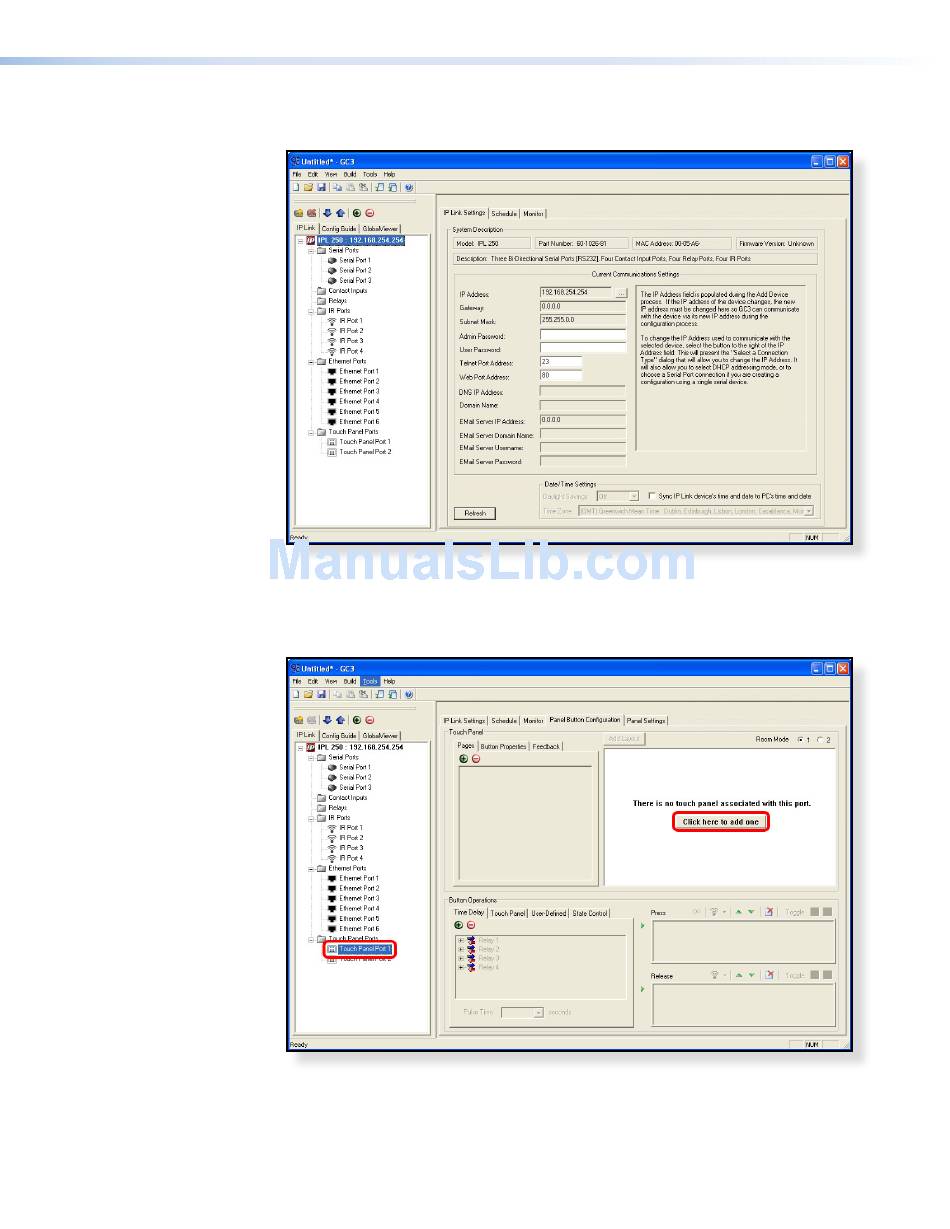

Figure 35.
Configuring an IP Link Device
6.
Select
TouchPanel Port 1
touchpanel. To add the GUI Configurator project that was uploaded to the TouchLink
touchpanel, click
Click here to add one
Figure 36.
Adding a TouchLink touchpanel
. The screen shows the available options for the TouchLink
.
TLP 710CV • Configuration Software 36
