TLP 700TV • Setup Guide
Overview
The Extron TLP 700TV is a free-standing TouchLink
for a range of control systems. The panel can be wall-mounted using the optional Extron mounting kit. See the Extron website
(www.extron.com) for a list of compatible models.
Graphic and text objects are displayed on the screen. Functions associated with those objects are initiated by touching the screen.
The TLP 700TV communicates with the units that it controls through an Ethernet connection to an IP Link unit. An MTP twisted pair
cable allows the screen to be used to preview composite video or S-video.
NOTE:
The RJ-45 output on the rear panel of the TLP 700TV must be connected to a network switch, hub, or router that is
connected to an Ethernet LAN or the Internet. An Extron IP Link controller must also be connected to the same network domain.
See the Extron website (www.extron.com) for a list of compatible models.
This guide provides instructions for experienced installers to mount and perform initial configuration on the TLP 700TV. For more
detailed information, see the TLP 700MV and TLP 700TV User Guide, which is available at www.extron.com.
TLP 700TV Front Panel Features
1 1 1
2 2 2
3 3 3

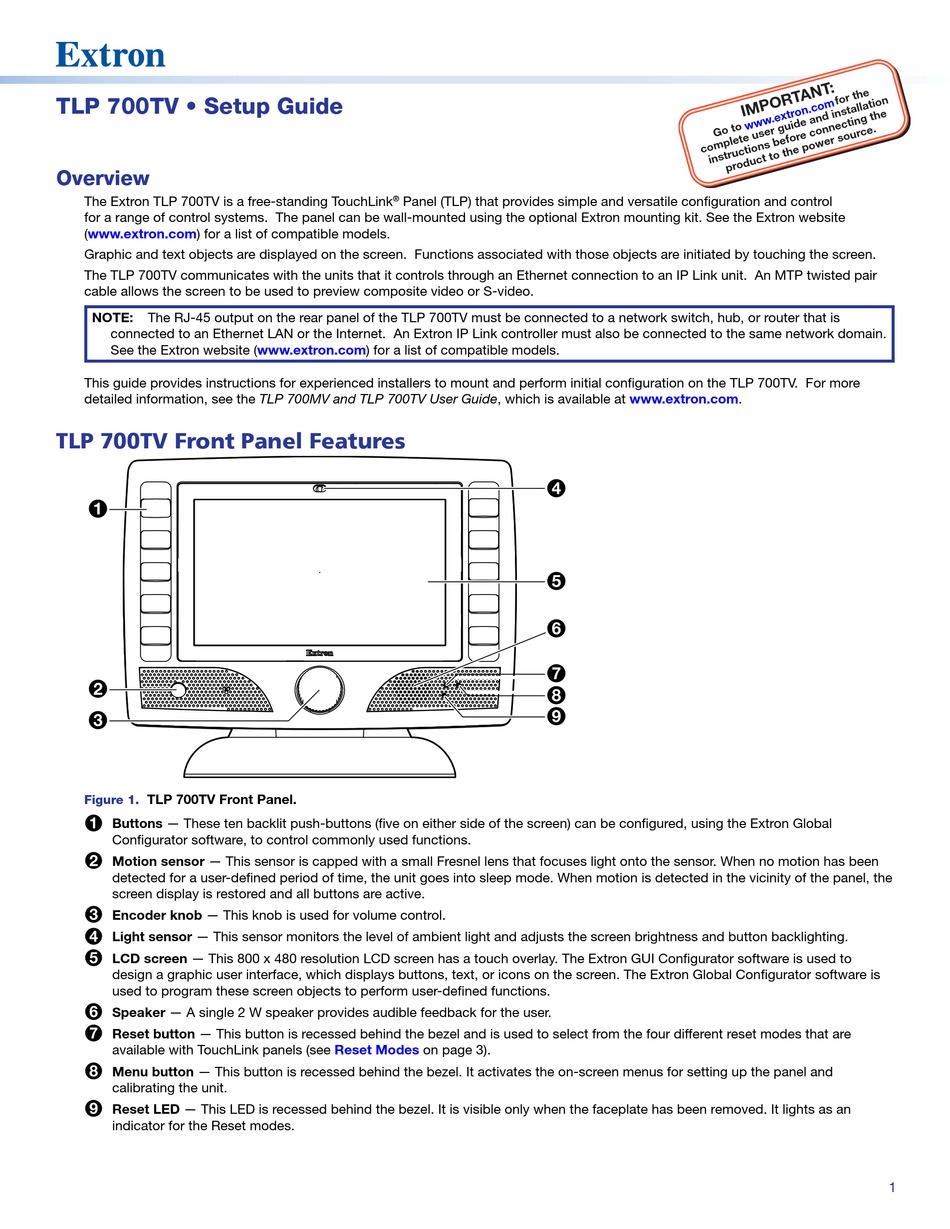

TLP 700TV Front Panel.
Figure 1.
1
Buttons — These ten backlit push-buttons (five on either side of the screen) can be configured, using the Extron Global
Configurator software, to control commonly used functions.
2
Motion sensor — This sensor is capped with a small Fresnel lens that focuses light onto the sensor. When no motion has been
detected for a user-defined period of time, the unit goes into sleep mode. When motion is detected in the vicinity of the panel, the
screen display is restored and all buttons are active.
3
Encoder knob — This knob is used for volume control.
4
Light sensor — This sensor monitors the level of ambient light and adjusts the screen brightness and button backlighting.
5
LCD screen — This 800 x 480 resolution LCD screen has a touch overlay. The Extron GUI Configurator software is used to
design a graphic user interface, which displays buttons, text, or icons on the screen. The Extron Global Configurator software is
used to program these screen objects to perform user-defined functions.
6
Speaker — A single 2 W speaker provides audible feedback for the user.
7
Reset button — This button is recessed behind the bezel and is used to select from the four different reset modes that are
available with TouchLink panels (see
8
Menu button — This button is recessed behind the bezel. It activates the on-screen menus for setting up the panel and
calibrating the unit.
9
Reset LED — This LED is recessed behind the bezel. It is visible only when the faceplate has been removed. It lights as an
indicator for the Reset modes.
Panel (TLP) that provides simple and versatile configuration and control
®
Reset Modes
on page 3).
4 4 4
5 5 5
6 6 6
7 7 7
8 8 8
9 9 9
