4.
Click . The Project Settings screen closes and is replaced by the Add Device dialog box:
OK

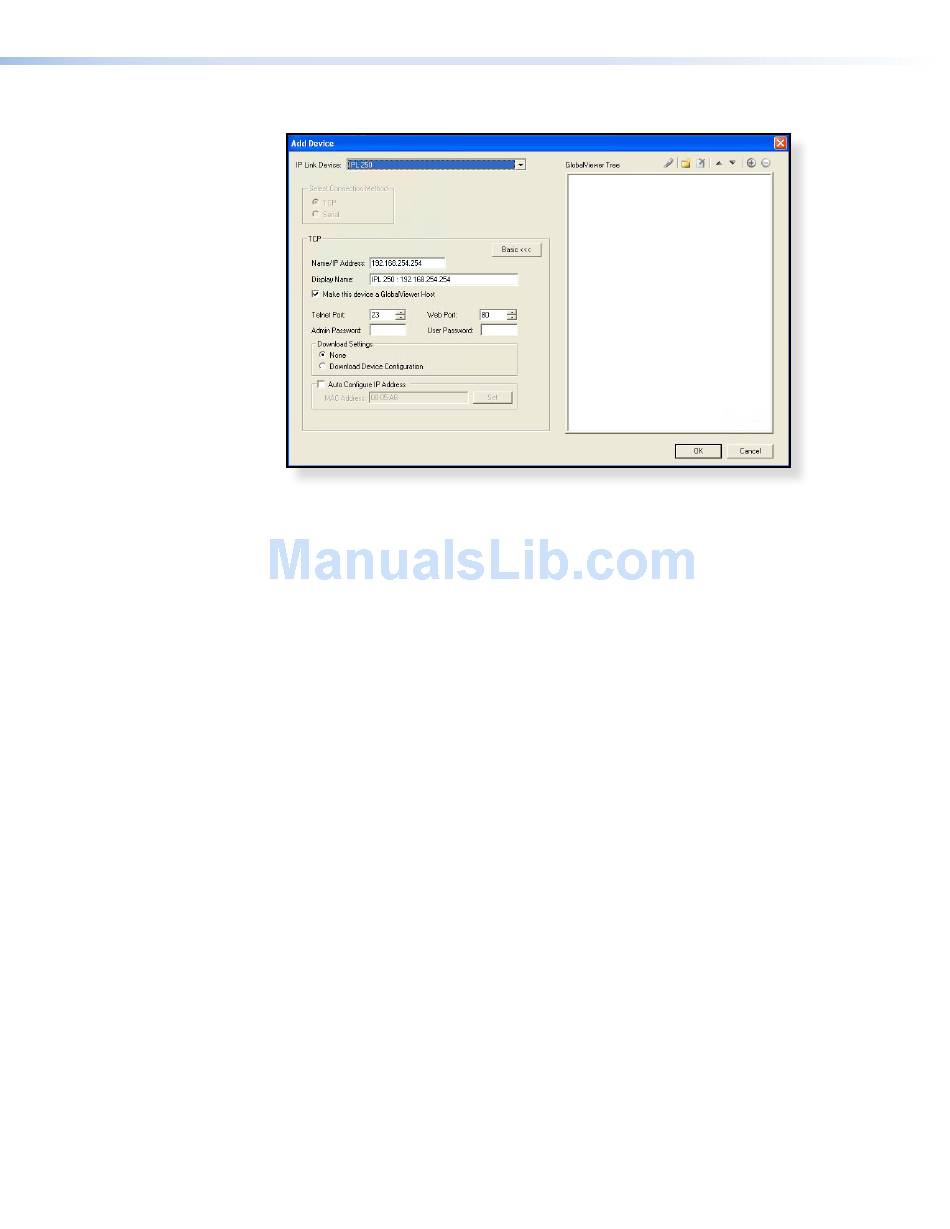

Figure 34.
Global Configurator Add Device Dialog Box
To see all the options, click the
(as shown in the figure above).
<<<
a.
Select the IP Link device from the drop-down menu. In figure 34, above, an IPL 250
controller is added.
b.
Enter the IP address of the IP Link control processor. The default value is
192.168.254.254, but this may have been changed. Check with your IT department to
verify the address.
c.
Enter a display name into the text box. This is what the device will be known as in the
Global Configurator project.
d.
Checking the
Make this device a GlobalViewer Host
e.
Set the Telnet port (usually 23) and the web port (usually 80).
f.
If the controller is password protected, enter the password now.
g.
In the right pane, set up a GlobalViewer tree. For information about this, see the
Global Configurator help file.
button. The button name changes to
Advanced >>>
TLP 710CV • Configuration Software
Basic
check box is optional.
