3.
Attach the AAP loosely to the bracket with the supplied #4-40 captive washer nuts.
NOTE:
4.
When using pass-through AAPs, ensure they are in the correct orientation with the
opening in the grommet facing forward (see figure 4).
5.
Insert one cable through the opening of each grommet. Cables can only be inserted into
the pass-through AAP while the front edge is exposed. Securing the next AAP in place
closes the opening on the previous AAP and ensures that the cable cannot escape.
6.
Add AAPs until the bracket is filled. Spaces that are not required can be filled with a blank
AAP.

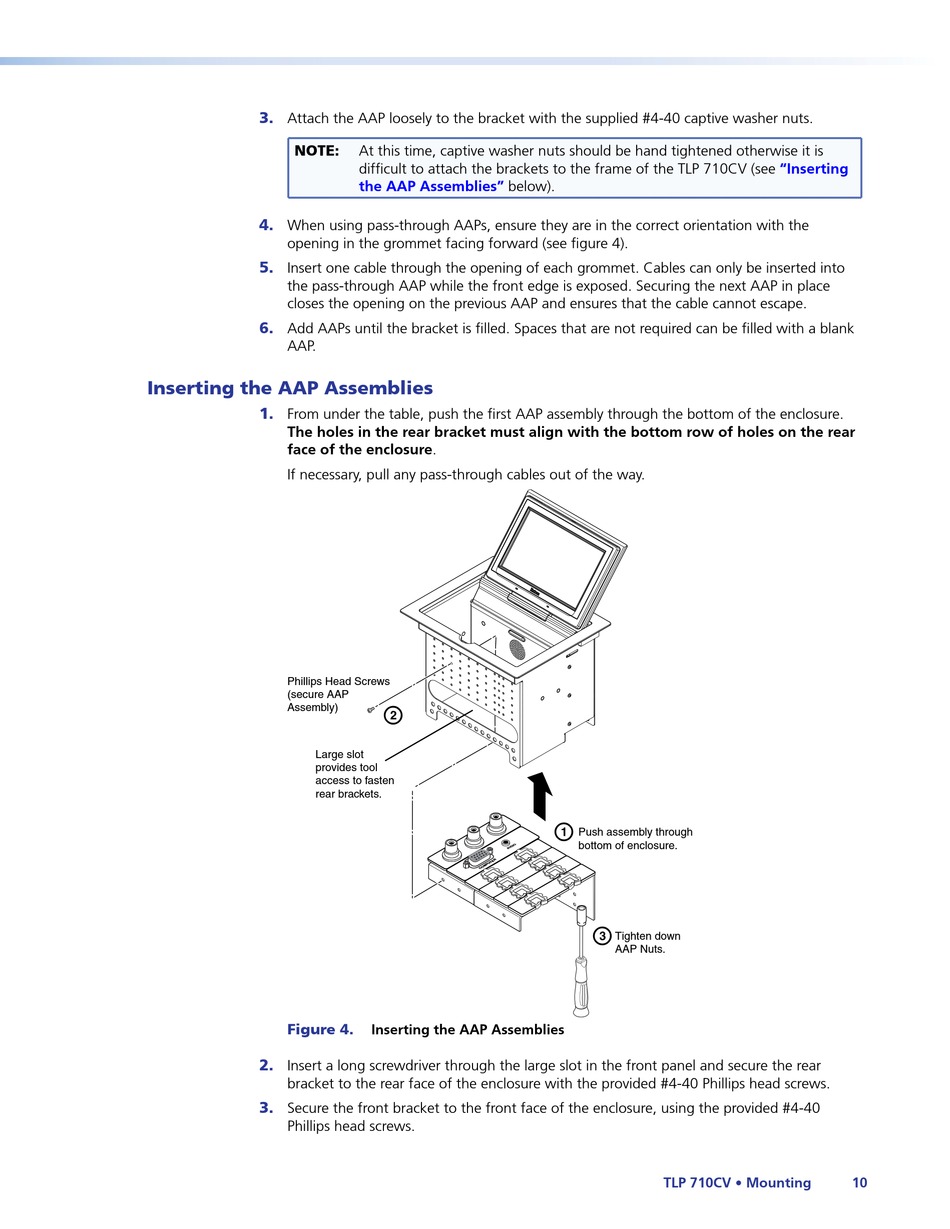

Inserting the AAP Assemblies

1.
From under the table, push the first AAP assembly through the bottom of the enclosure.
The holes in the rear bracket must align with the bottom row of holes on the rear
face of the enclosure.
If necessary, pull any pass-through cables out of the way.
Phillips Head Screws
(secure AAP
Assembly)
Large slot
provides tool
access to fasten
rear brackets.
Figure 4.
2.
Insert a long screwdriver through the large slot in the front panel and secure the rear
bracket to the rear face of the enclosure with the provided #4-40 Phillips head screws.
3.
Secure the front bracket to the front face of the enclosure, using the provided #4-40
Phillips head screws.
At this time, captive washer nuts should be hand tightened otherwise it is
difficult to attach the brackets to the frame of the TLP 710CV (see
the AAP Assemblies" below).
b
Inserting the AAP Assemblies
a
Push assembly through
bottom of enclosure.
c
Tighten down
AAP Nuts.
TLP 710CV • Mounting
"Inserting
10
