Network and Power over Ethernet Connector

The TLP 710CV connects to a network using a twisted pair cable,
terminated with an RJ-45 connector. Use a straight-through Ethernet
cable to connect the touchpanel to a switch or router. Use a crossover
cable to connect the touchpanel directly to a computer. An Extron IP
Link control interface must also be connected to the same network
Suggested models
domain.
The network port has two LEDs. The green LED lights solidly to indicate that the touchpanel is
connected correctly to a network. The yellow LED flashes to indicate that data is being passed
to or from the touchpanel.
Extron recommends using a PoE power supply. Run a straight-through cable from the LAN-IN
connector of the power supply to a network switch or router. This cable carries network
information. Run a second straight-through cable from the PWR LAN-OUT connector of the
power supply to the LAN and PoE connector on the TLP 710CV. This cable carries network
information and 48 VDC. Connect the IEC power cord from the power supply to a convenient
100 VAC to 240 VAC, 50-60 Hz power source.
If a 12 VDC power supply is being used
LAN/PoE connector directly to a switch or router.

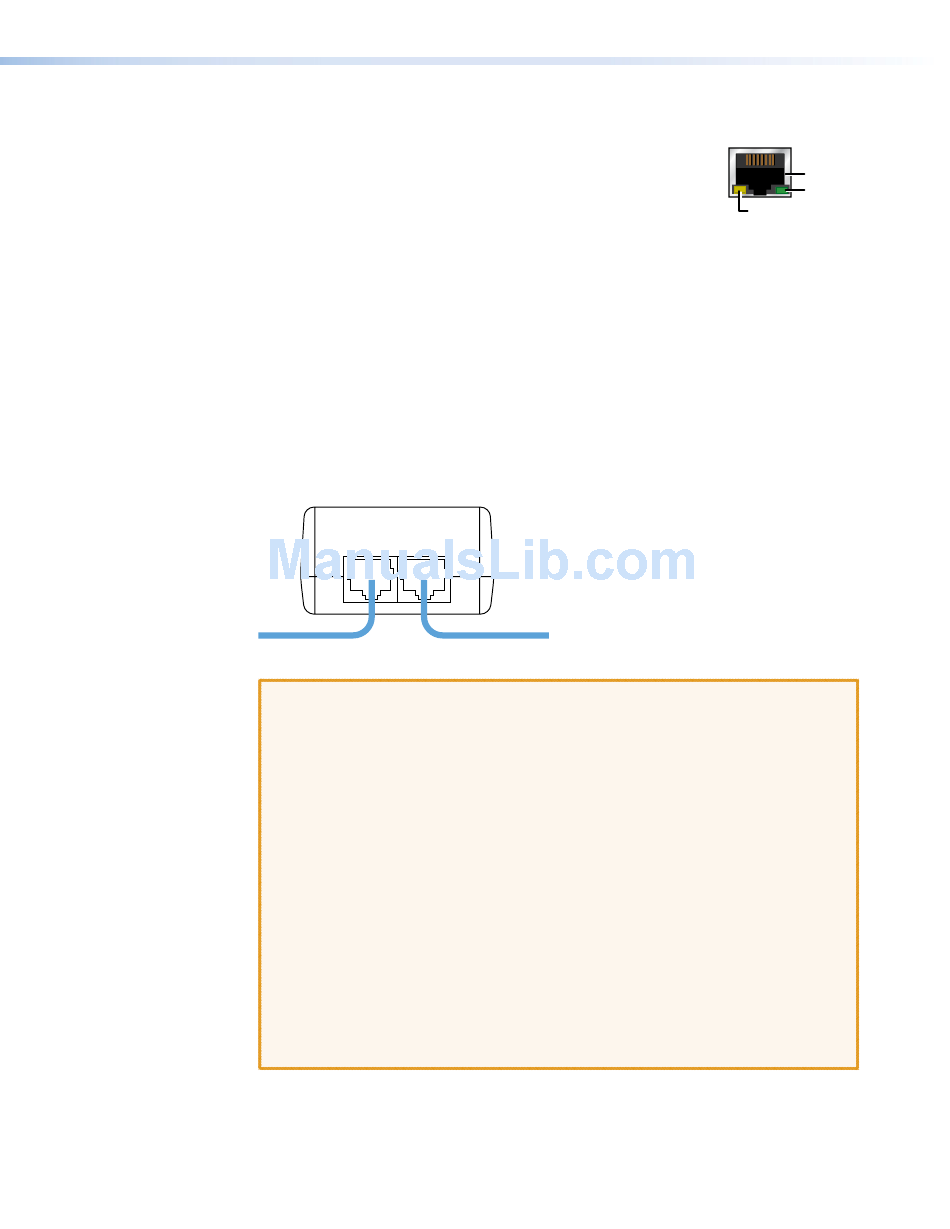

Power over Ethernet (PoE) Power Supply
To TLP 710CV
Figure 9.
CAUTIONS:
are listed on page
(see page
PWR LAN-OUT LAN-IN
To Network Switch
Connecting the Power over Ethernet Power Supply
• The TLP 710CV is intended for connection to a Power Over Ethernet circuit
for intra-building use only and are considered a Network Environment 0
per IEC TR62101.
• Always use a power supply supplied or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification
and may damage the supply and end product.
• Extron power supplies are certified to UL/CSA 60950-1 and are classified as
LPS (Limited Power Source). Use of a non-LPS or unlisted power supply will
void all regulatory compliance certification.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in
air handling spaces or in wall cavities. The power supply is to be located
within the same vicinity as the Extron AV processing equipment in an
ordinary location, Pollution Degree 2, secured to the equipment rack
within the dedicated closet, podium or desk. Power over Ethernet (PoE) is
intended for indoor use only. No part of the network that uses PoE can be
routed outdoors.
• The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and the
Canadian Electrical Code part 1, section 16. The power supply shall not be
permanently fixed to building structure or similar structure.
TLP 710CV • Touchpanel Features and Connectors
LAN/PoE
3.
16) run one straight-through cable from the
RJ-45 Port
Link LED
Activity LED
