TLP 710CV and TLE 710 • Setup Guide
Overview
The Extron TLP 710CV 7-inch Cable Cubby
convenient pullout cables. The TLP 710CV also provides simple and versatile configuration and control for a range of IP Link
control systems using a touch screen. The touchpanel communicates through an Ethernet connection to a configurable IP Link
control processor. Video and audio input is provided by a twisted pair cable connected to an MTP transmitter.
NOTE:
The network output must connect via a network switch, hub, or router to an Ethernet LAN or the Internet, with
an Extron IP Link controller on the same network. Suggested controllers include IPL T S series (for example, IPL T S4),
IPL 250, IPL T CR48, IPL T SFI244, or IPCP series.
The first four pages of this guide provides basic instructions for experienced installers to mount either the TLP 710CV or the
TLE 710. The last four pages show initial configuration for the TLP 710CV. For reference material and full instructions about
configuring the touchpanel, see the TLP 710CV User Guide (see www.extron.com).

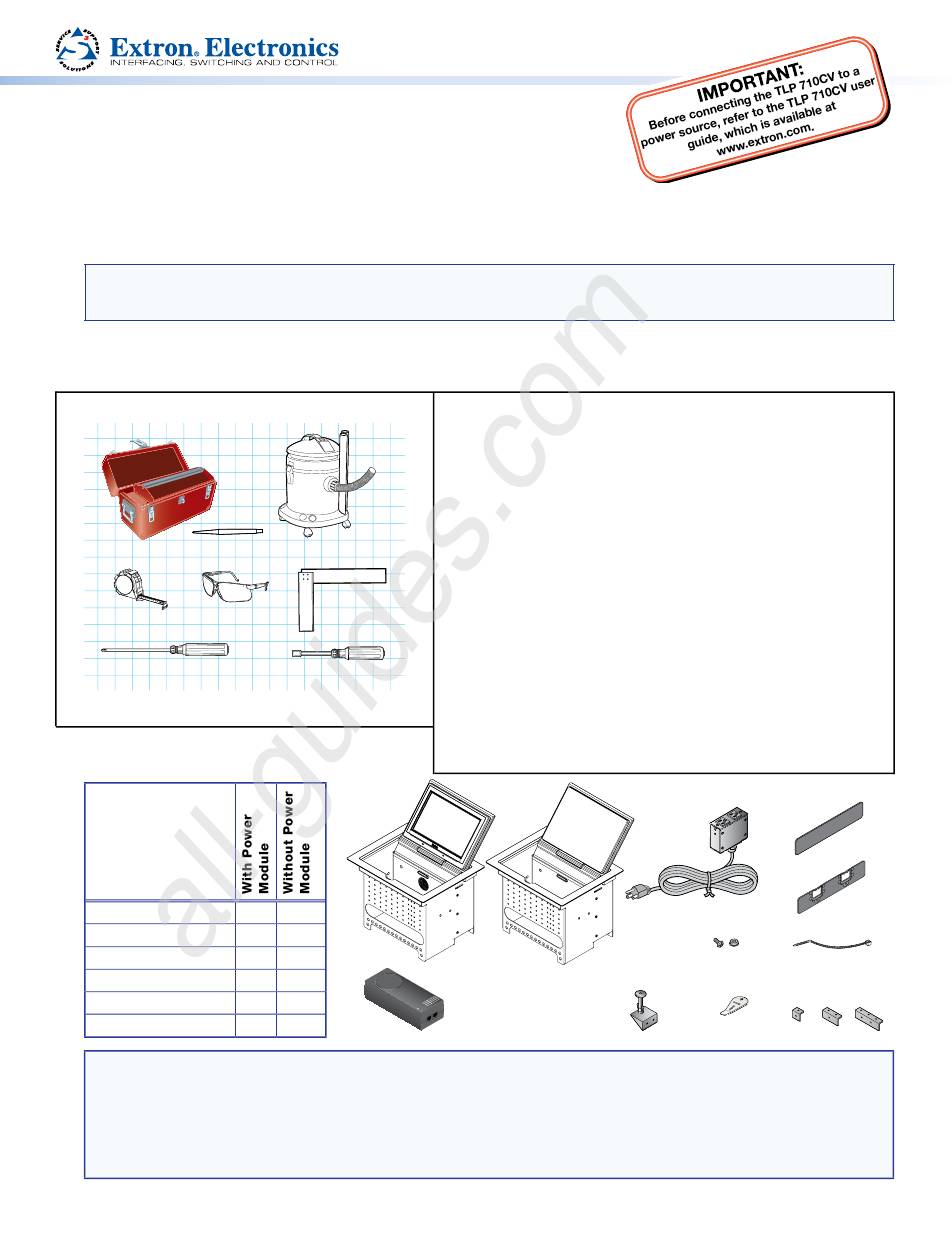

Tools Required for Installation
Marking Pen
Tape Measure
Safety Glasses
Phillips Screw Driver
Included Parts
AC Power Module*
Pass-through AAPs
Blank AAPs
1-space bracket kit
2-space bracket kit
3-space bracket kit
NOTES:
*
Inside the US, the TLP 710CV may be purchased with or without an AC power module. If required, a power module for
the TLE 710 must be purchased separately. Outside the US, see
your country.
Active or Passive AAPs must be purchased separately (see www.extron.com).
The Power over Ethernet injector is provided only with the TLP 710CV.
All manuals and user guides at all-guides.com
TouchLink
®
Vacuum Cleaner
Square
1/4" Hex Nut Driver
1
0
3
3
6
6
0
1
3
4
T
N OU
R LA
PW
1
1
touchpanel and TLE 710 enclosure provide AV connectivity using
Planning
Before making any cuts, select the best location for the
TLP 710CV or TLE 710.
Ensure that the edge that opens on the lid is oriented correctly.
Ensure there is enough space for all the system cables and
components, including cable retractors, if they are to be
installed.
Decide on the method for cutting a hole in the table:
Hand router and template
z
CNC wood router
z
Jigsaw and paper template
z
Verify that you have the correct template or dimensions.
Check all relevant regulations.
Ensure the installation complies with local, state, and
z
national building and electrical codes.
Ensure the installation complies with the Americans with
z
Disabilities Act or other accessibility requirements.
TLP 710CV or TLE 350
Power over Ethernet
(PoE) Injector
LA N-
IN
(TLP 710CV only)
www.extron.com
AC Power Module*
#4−40 Screws
and Nuts
AAP Shelf Bracket Kits
Extron
1 Pos
Table Clamps
Removal Tool
to find an AC power module for
®
Blank AAPs
Pass-thru AAPs
Zip Ties
(2 brackets/kit)
2 Pos
3 Pos
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TLP 710CV and is the answer not in the manual?

Questions and answers

Summary of Contents for Extron electronics TLP 710CV

  • Page 1 Table Clamps Removal Tool NOTES: Inside the US, the TLP 710CV may be purchased with or without an AC power module. If required, a power module for the TLE 710 must be purchased separately. Outside the US, see www.extron.com to find an AC power module for your country.
  • Page 2 Ensure the table surface is at least 0.375 inches (0.95 cm) thick. If using a hand router, you should purchase the Extron TLP 710CV routing template (part number 70-980-01). If using a CNC wood router, use the exact cut-out dimensions (see below).
  • Page 3 It may be installed with AAPs on either side. Secure the power module Secure the power module into position with #4-40 Phillips head to the TLP 710CV frame with #4-40 Phillips head screws and star washers. screws and star washers.
  • Page 4: Step 8 - Mounting The Enclosure

    All manuals and user guides at all-guides.com TLP 710CV and TLE 710 • Setup Guide (Continued) Step 7 — Install the AAP Assembly From under the table, push the first AAP assembly through the bottom of the enclosure. The holes in the rear bracket must align with the bottom row of holes on the rear face of the enclosure.
  • Page 5 TLP 710CV User Guide, which is available at www.extron.com. Extron strongly recommends using PoE to provide power to the TLP 710CV. To use a 12 VDC, 1.0 A power supply (not provided), connect the two pole, 3.5 mm captive screw connector from the power supply (part number 70-775-01) to the power supply socket on the rear panel (...
  • Page 6: Front Panel Features

    For a complete description of all these features and their function, see the TLP 710CV User Guide. Light Sensor — monitors ambient light level and adjusts screen brightness. LCD screen — has a 800x480 resolution with a touch overlay. Extron software is used to design and configure a graphic user...
  • Page 7: Initial Configuration

    All manuals and user guides at all-guides.com Initial Configuration Before use, configure the touchpanel, using the on-screen menus. Remove the bezel, using the Extron removal tool. Press the Menu button once ( in the figures on page 6). The Main menu screen opens. Main Sleep timer: 005 Min Auto Backlight...
  • Page 8: Calibration Screen

    All manuals and user guides at all-guides.com TLP 710CV and TLE 710 • Setup Guide (Continued) Calibration Screen To access the calibration screen, press the Menu button a second time ( in the figures on page 6). The calibration screen opens with the on-screen button in the top left corner highlighted.
