TLP 710CV Connectors

The rear panel of the TLP 710CV has a compartment that can be accessed from beneath the
unit. This compartment contains the connectors for power, LAN and PoE, and MTP inputs to
the touchpanel.

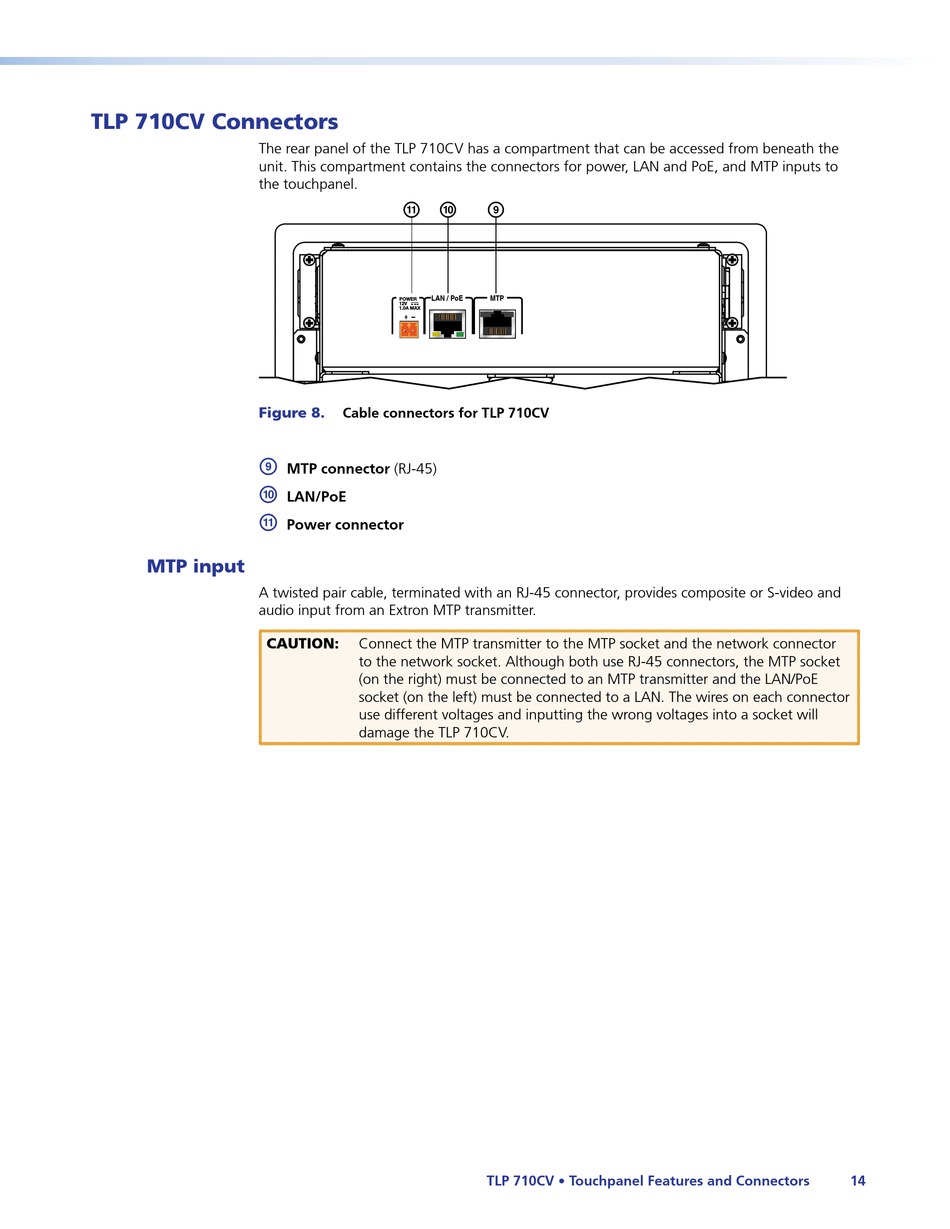

Figure 8.
i
j
k

MTP input

A twisted pair cable, terminated with an RJ-45 connector, provides composite or S-video and
audio input from an Extron MTP transmitter.
CAUTION:
k j
LAN / PoE
POWER
12V
1.0A MAX
Cable connectors for TLP 710CV
MTP connector (RJ-45)
LAN/PoE
Power connector
Connect the MTP transmitter to the MTP socket and the network connector
to the network socket. Although both use RJ-45 connectors, the MTP socket
(on the right) must be connected to an MTP transmitter and the LAN/PoE
socket (on the left) must be connected to a LAN. The wires on each connector
use different voltages and inputting the wrong voltages into a socket will
damage the TLP 710CV.
i
MTP
TLP 710CV • Touchpanel Features and Connectors 14
