Touchpanel
Features and
Connectors
This section discusses the features and connectors of the TLP 710CV touchpanel.

Front Panel

With the lid down, the light sensor (
are disabled. All three activated by opening the lid.
With the lid open, remove the front panel bezel, as shown in figure 6, using the Extron removal
tool.

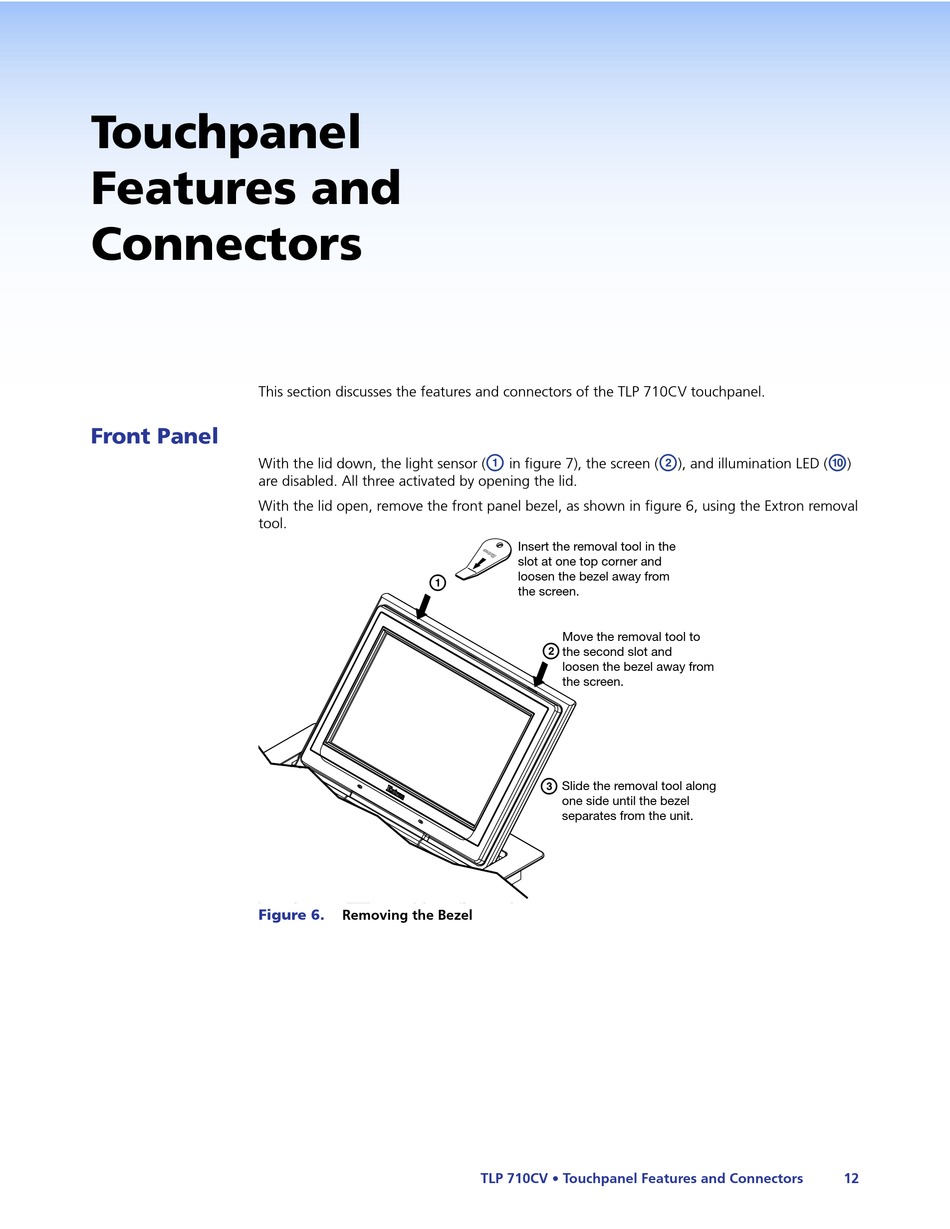

Figure 6.
a
in figure 7), the screen (
Insert the removal tool in the
slot at one top corner and
a loosen the bezel away from
the screen.
Removing the Bezel
TLP 710CV • Touchpanel Features and Connectors
b
), and illumination LED (
Move the removal tool to
b
the second slot and
loosen the bezel away from
the screen.
c
Slide the removal tool along
one side until the bezel
separates from the unit.
