Logging In - Minicom Smart CAT5 Switch 16 IP Operating Manual

All the above interfaces are accessed using the TCP/IP protocol. They can thus be
used via the built-in Ethernet adapter or modem.
This chapter deals with the HTTP interface. The other two interfaces are
explained on pages 34 and 47.
The Web browser must come with a Java Runtime Environment version 1.1 or
higher. Without Java support, you can still maintain the remote host system using
the administration forms displayed by the browser.
We recommend the following browsers for an unsecured connection:
•
Microsoft Internet Explorer version 5.0 or higher with Windows 98, ME,
2000 and XP
•
Netscape Navigator 7.0 or Mozilla 1.0 with Windows 98, ME, 2000, and
XP, Linux and other UNIX like operating systems
To access the remote host system using a securely encrypted connection you need
a browser that supports the HTTPS protocol. Strong security is only assured by
using key length of 128 Bit. We recommend the following browsers.
•
Microsoft Internet Explorer version 5.5 or higher with Windows 98, ME,
2000 and XP
•
Netscape Navigator 7.0 or Mozilla 1.0 with Windows 98, ME, 2000, and
XP, Linux and other UNIX like operating systems

8. Logging in

Type the configured IP address into the Web browser. Either http://192.168.0.220
for an unsecured connection. Or https://192.168.0.220 for a secured connection.
The Login screen appears. See Figure 4
Initially there is only one user configured who has unrestricted access to all Smart
16 IP features. Type the default Login name 'super' and Password 'smart' and
click Login. The Smart 16 IP Home page appears. See Figure 5.
OPERATING GUIDE

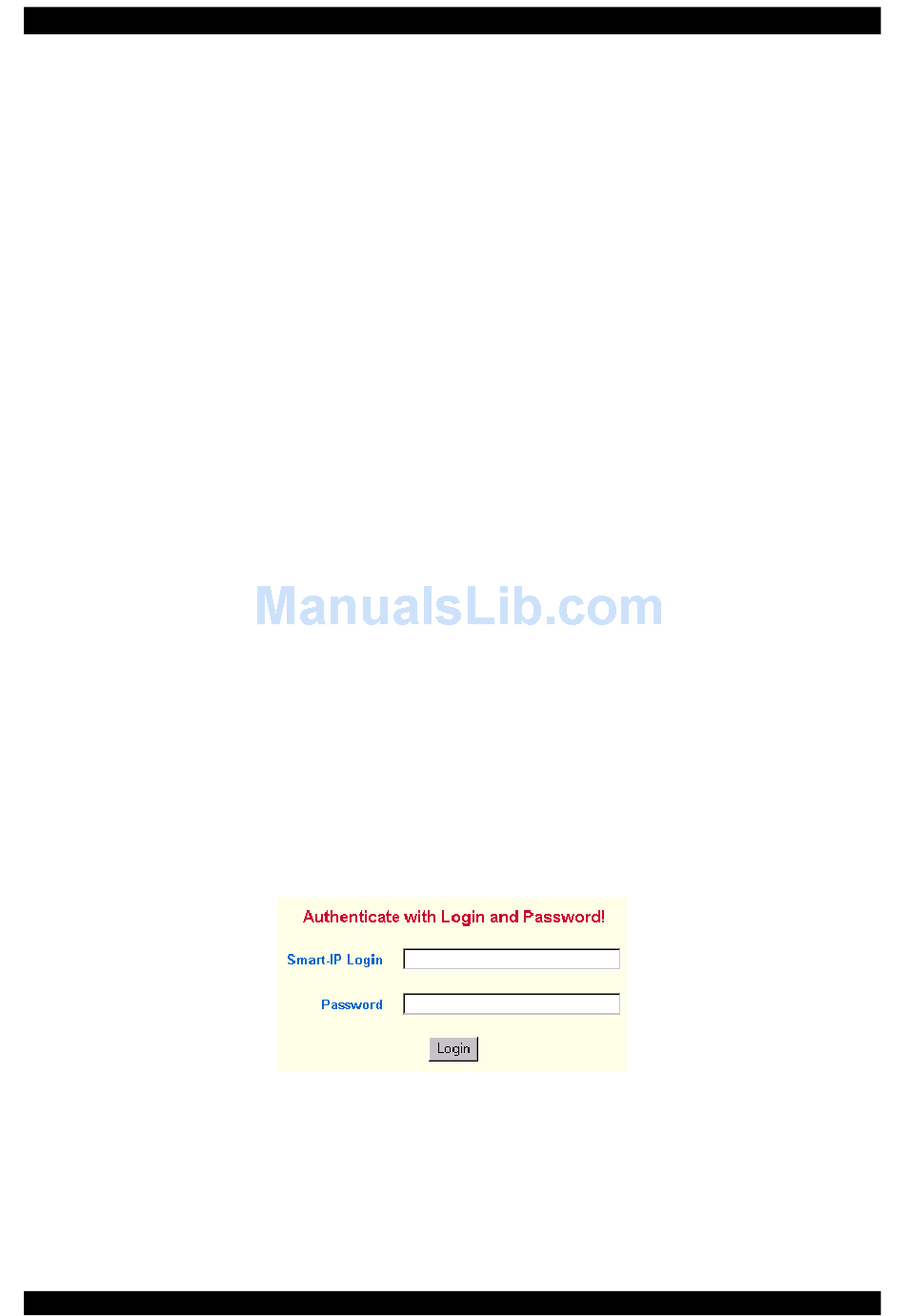

Figure 4 The Login screen
.
8
.
