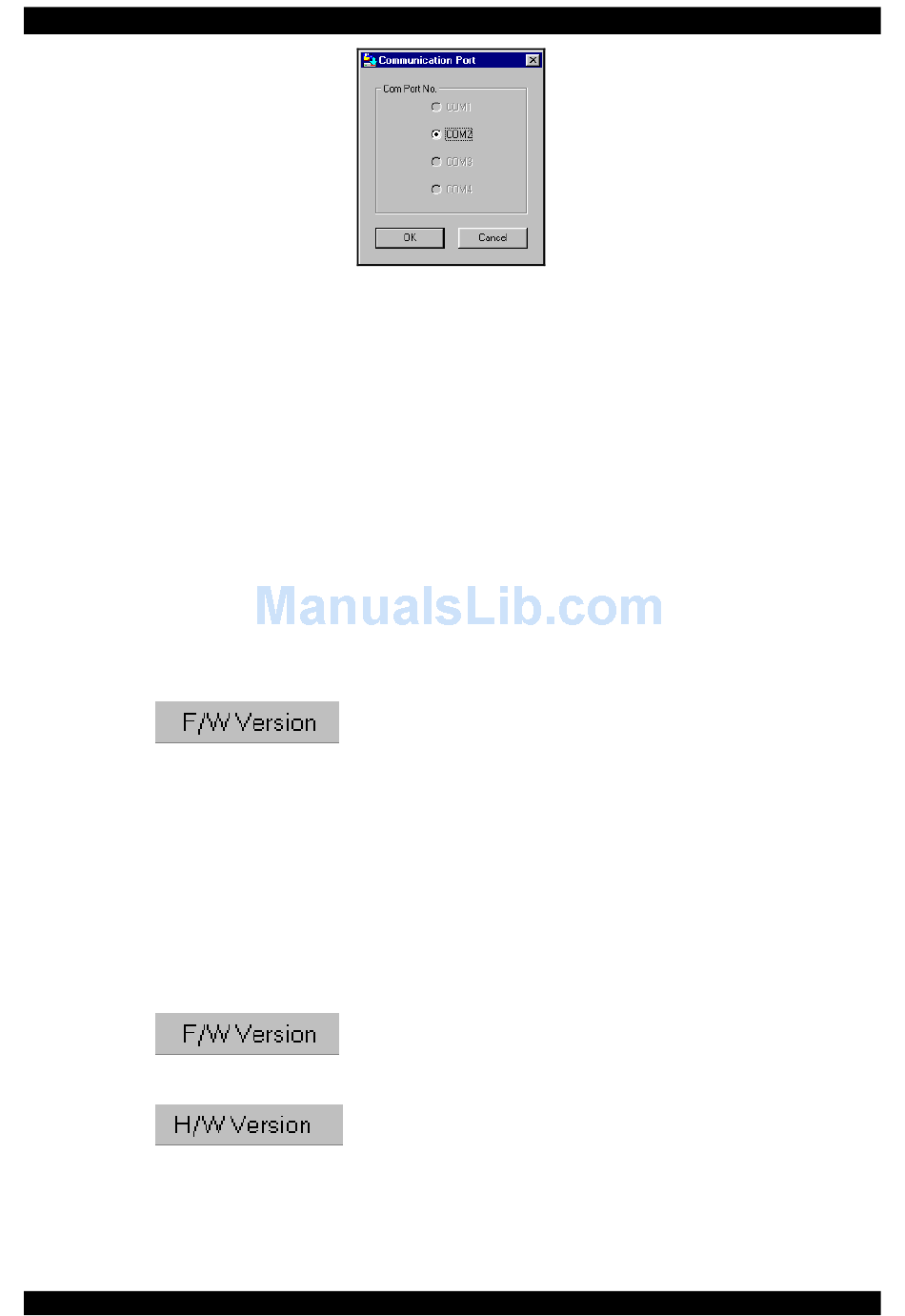

3. Choose an available Com Port and click OK.
Note! The RS232 Serial cable must be connected to the selected Serial port.

109. Verifying the version numbers

Before upgrading the firmware, you must first verify which firmware and
hardware versions you have.
The OSD version number
To verify the OSD version number:
1. Open the Smart CAT5 Switch Update program.
2. In the Switch Unit box, check the OSD option. See Figure 46.
3. Click
The H/W Version button is grayed out, as there is no hardware relevant to the
OSD.
The Smart 16 IP Manager version number
To verify the Smart 16 IP version number:
1. Open the Smart CAT5 Switch Update program.
2. In the Switch Unit box, check the Smart Switch Manager option.
3. Click
Switch Unit box.
4. Click
Switch Unit box.
Verifying the RICC version number
Before you can check a RICC, you must uncheck the Switch Unit box options.
SMART CAT5 SWITCH 16 IP
Figure 47 The Com Option box
. The version number appears in the Switch box.
. The firmware version number appears in the
. The hardware version number appears in the
.
