Minicom Smart CAT5 Switch 16 IP Operating Manual page 44

.
SMART CAT5 SWITCH 16 IP

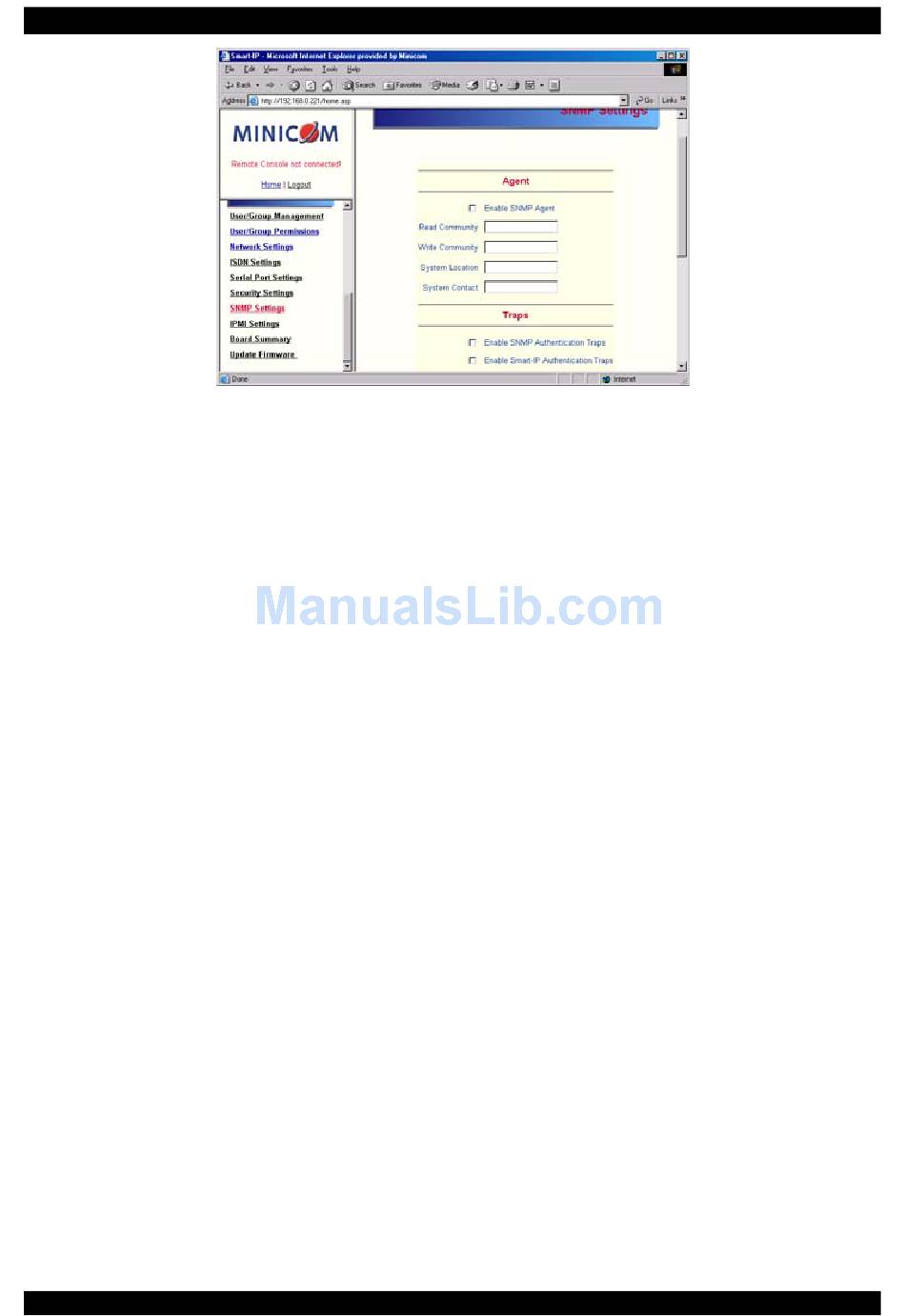

Figure 27 SNMP settings
You can change the following parameters:
Enable SNMP Agent - When checked, Smart 16 IP will answer to SNMP
requests. If a community is blank, you cannot perform the request. E.g. if you
want to disable the possibility to reset Smart 16 IP via SNMP, don't set a write
community.
Read Community - This is the SNMP community, which allows you to retrieve
information via SNMP.
Write Community - This community allows you to set options and reset Smart
16 IP or the host via SNMP.
System Location - Type a description of the physical location of the host. This
will be used in reply to the SNMP request "sysLocation.0".
System Contact - Type a contact person for the host. This will be used in reply to
the SNMP request "sysContact.0".
Enable SNMP Authentication Traps -When checked, an SNMP trap will be
sent in case somebody has tried to access Smart 16 IP via SNMP using a wrong
SNMP community.
Enable Smart 16 IP Authentication Traps - When checked, an SNMP trap will
be sent if somebody tries to login via the Web front-end. Both successful and
failed logins trials will be indicated. Furthermore, there will be notification about
other security violations like trying to perform an action via Web front-end for
which a user has no permission.
Enable Host Traps -When checked, Smart 16 IP will send SNMP traps
whenever the host is reset, powered down or powered up.
.
43
