3. Fill in the connection details. Select COM 1 in the Connect using box and
click OK. The COM 1 properties box appears. See Figure 2.
4. Set the port settings to the following values:
•
Bits/second - 115200
•
Data bits - 8
•
Parity - None
•
Stop bits - 1
•
Flow Control - None
5. Click OK. The Hyperterminal appears. See Figure 3.
SMART CAT5 SWITCH 16 IP

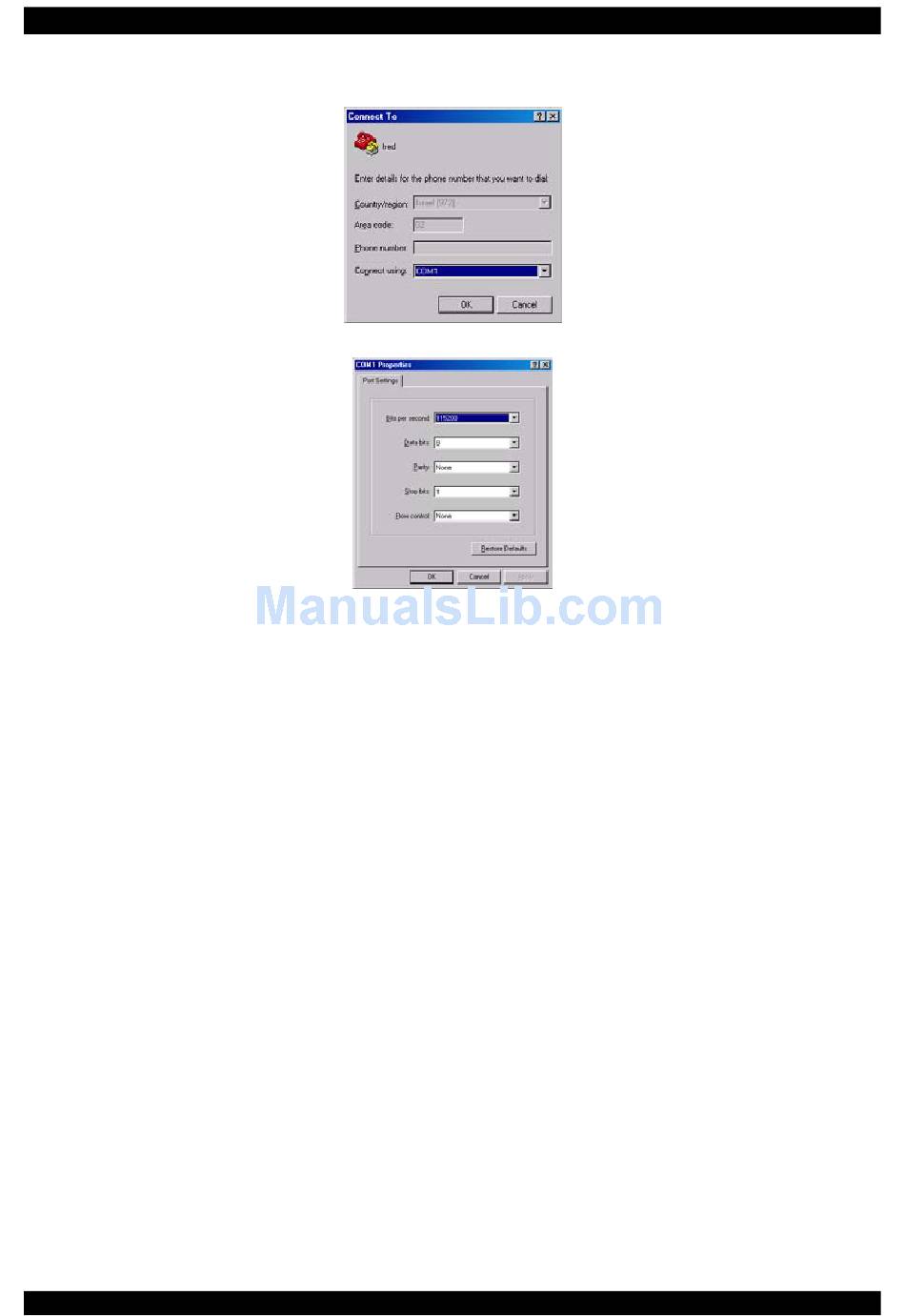

Figure 1 Connect To box
Figure 2 COM 1 Properties box
.
5
.
