Smart
Switch
RICCs
Status
box
The table below explains the functions of the buttons and boxes in the Update
window.
Button or Box
2. From the Options menu choose Com Port. The Com Port box appears.
See Figure 47.
OPERATING GUIDE

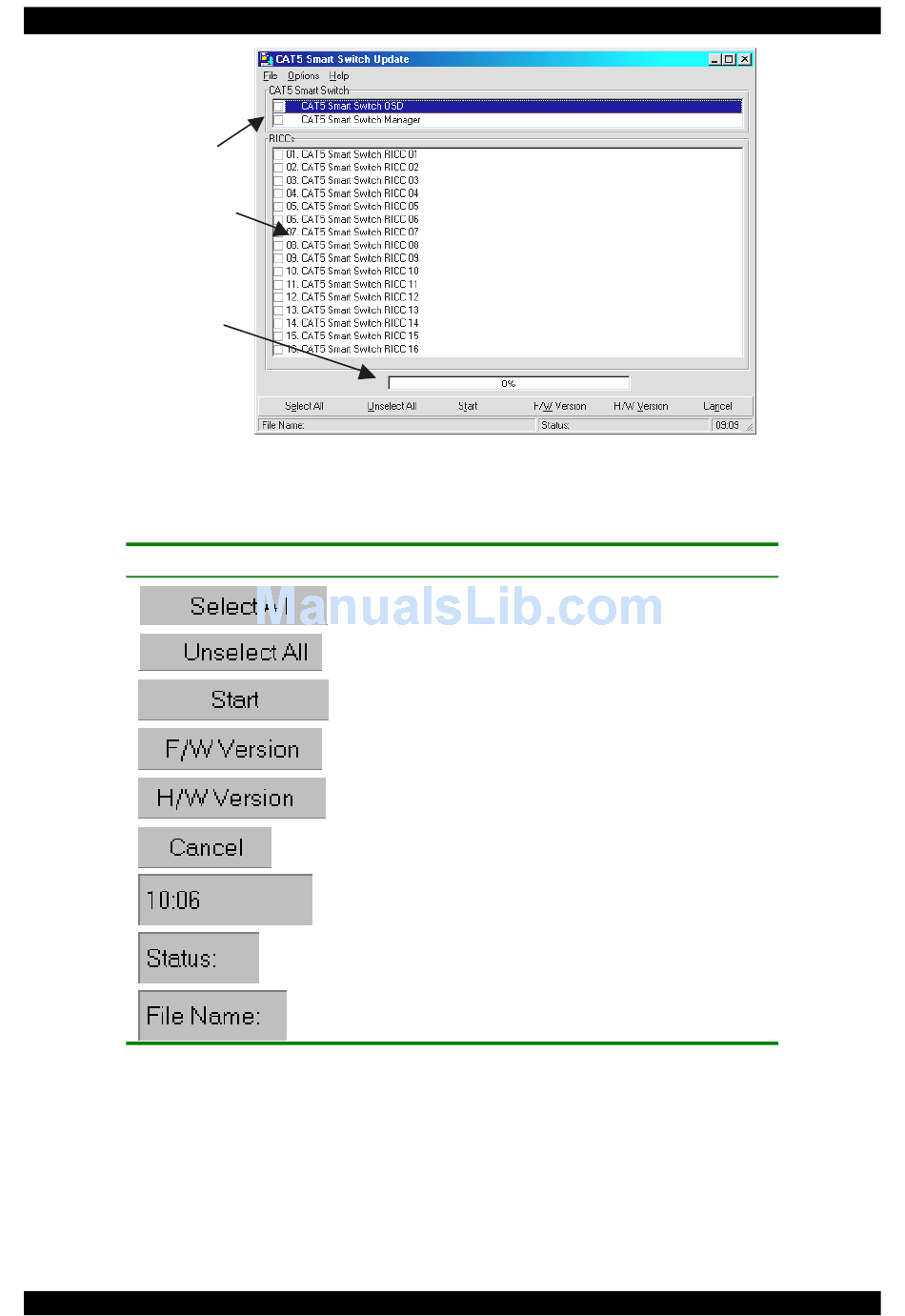

Figure 46 The Smart CAT5 Switch Update window
Function
Selects all RICCs
Unselects selected RICCs
Starts firmware download
Displays the firmware version number
Displays the hardware version number
Cancels selected function
System time
Displays download status
Name of Update file
.
.
72
