The Time Settings; Users - Minicom Smart CAT5 Switch 16 IP Operating Manual

76.

The Time settings

In the Settings window navigate to the Time line and press Enter. The Time
settings window appears see Figure 36.
Scan (SCN) - Label (LBL) - Time out (T/O)
SCN - In the SCN column, change the scan period.
LBL - In the LBL column, change the display period of the Confirmation label
showing which computer is currently accessed.
T/O - When password protection is activated you can automatically disable the
Management keyboard, mouse and screen after a preset time of non-use. Set this
Timeout period in the T/O column.
To set the above periods:
1. On the desired line press Tab to jump to the desired column.
2. Place the cursor over one of the 3 digits and type a new number. Enter a
leading zero where necessary. For example, type 040 for 40 seconds.
Typing 999 in the LBL column displays the label continuously. Typing 000 –
the label will not appear.
Typing 999 in the T/O column disables the Timeout function. Typing 000 –
the Timeout function works immediately.
Typing 999 in the SCN colum
000 – the computer screen is skipped.
77.

Users

In the Settings window navigate to the Users line and press Enter. The Users
settings window appears see Figure 37.
OPERATING GUIDE

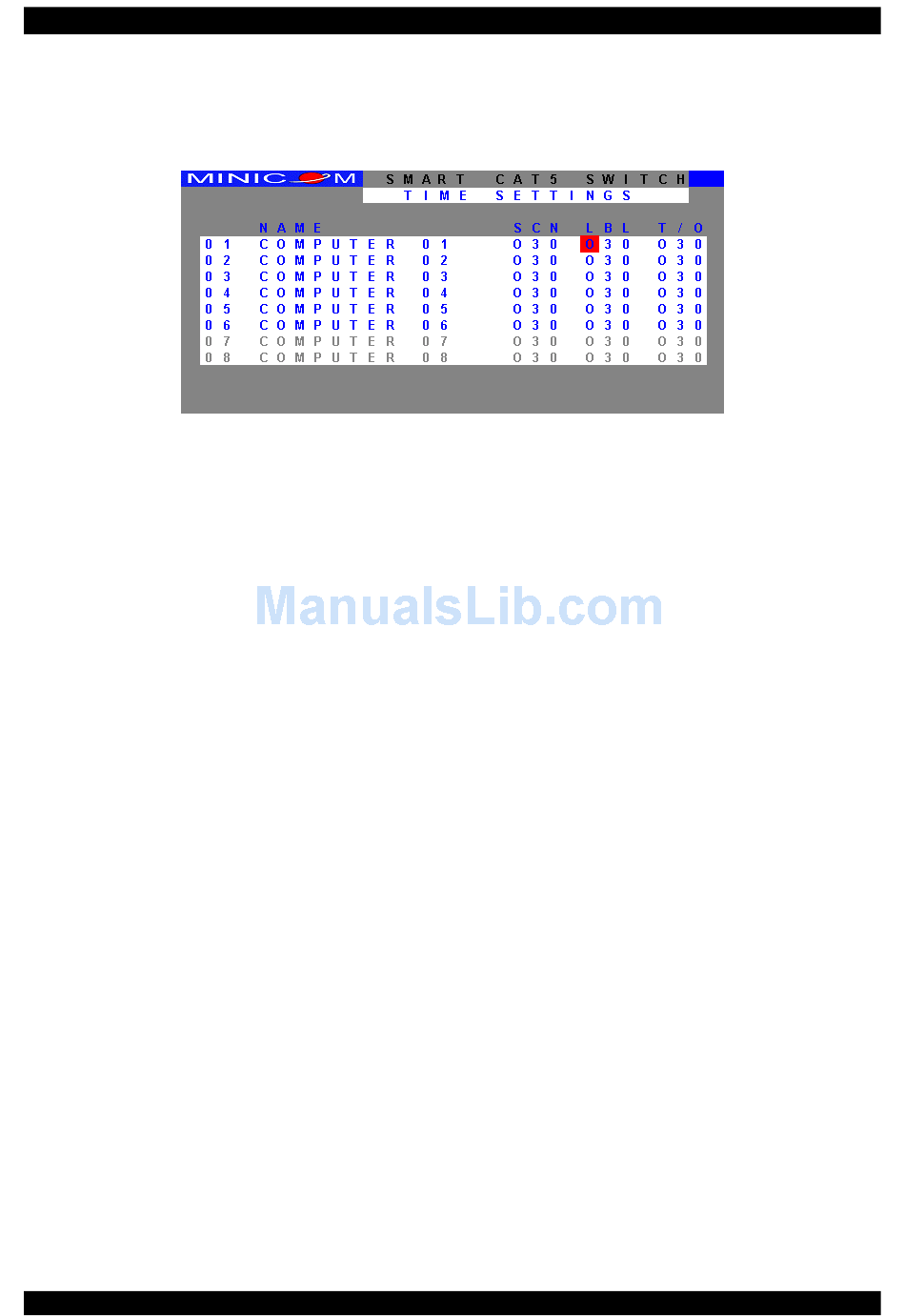

Figure 36 Time settings window
n displays the screen for 999 seconds. Typing
.
60
.
