OPERATING GUIDE

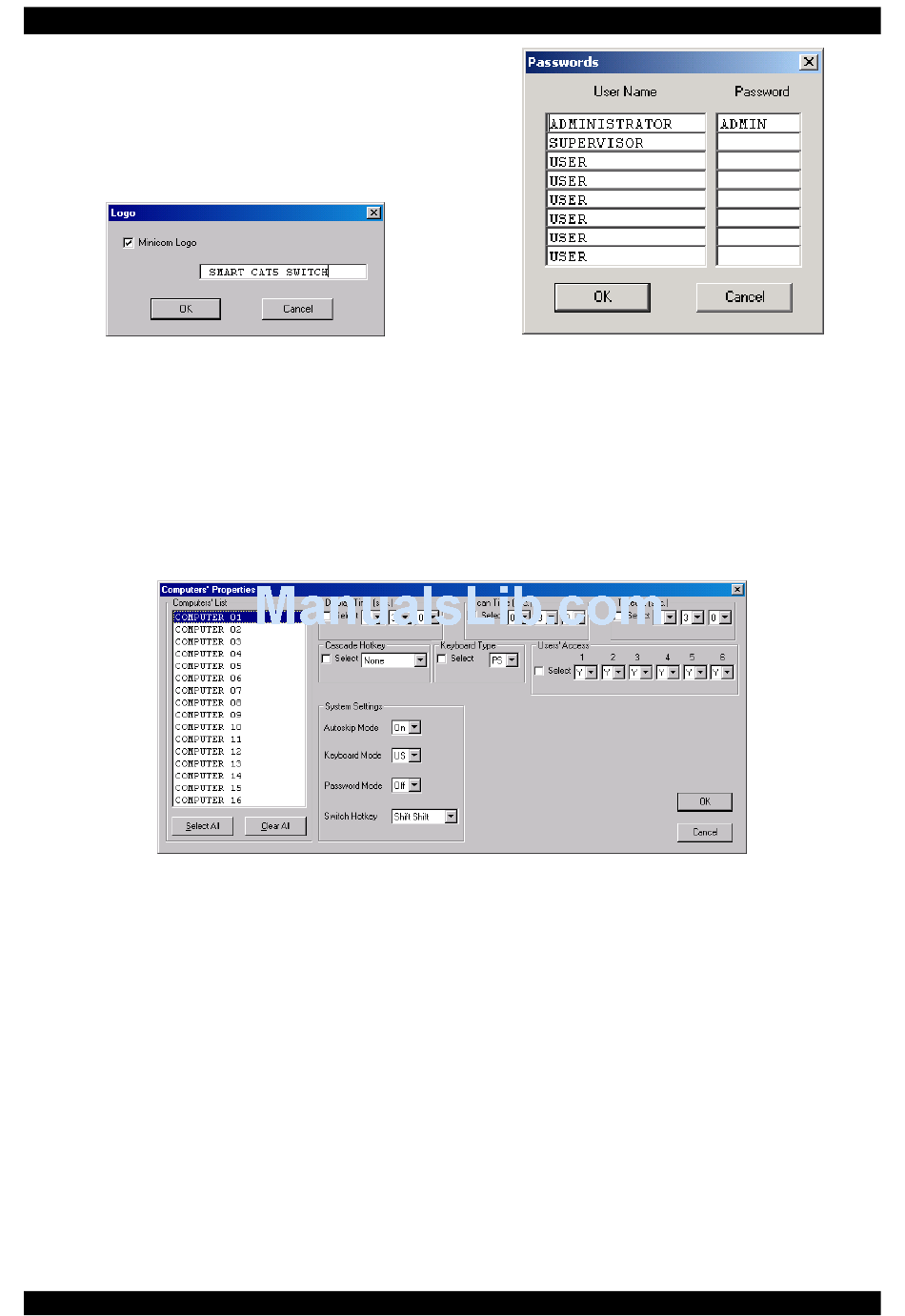

Figure 43 The names and passwords
Figure 42 The logo
2. Make the desired changes.
3. Click OK.
98.

Settings

Choose Settings from the Edit menu. The Computers' Properties box appears. See
Figure 44.
Figure 44 The Computers' Properties box
Here you can edit all the data that can be edited in the OSD. This includes:
Scan times, Timeout, Confirmation label display time, Keyboard type/mode, User
access, Password mode, Autoskip mode, and Switch/System hotkey. These
features are explained in the OSD section of this Appendix.
To edit a setting:
1. In the Computer List, select the desired computer or group of computers.
2. Make the desired changes.
3. Check the Select box next to the changed setting.
.
68
