9.

Timeout

After half an hour of non-activity the system automatically logs out. Clicking
anywhere on the screen will lead back to the Login screen.
10.

The Work area

The Work area has a short summary about your Smart 16 IP.
•
Server Power Status - On or Off
•
Firmware Version - installed on your Smart 16 IP
•
Device management – self managed or connected to a management
device
•
Users - all currently logged in users and IP addresses. (Note: when
connected through a proxy server the IP address will be that of the proxy
server).
RC – Remote Control open. Exclusive – Exclusive mode. Idle – time
since last activity.
11.

Remote Console

From the menu click Show Remote Console. The remote console appears. See
Figure 6.
SMART CAT5 SWITCH 16 IP

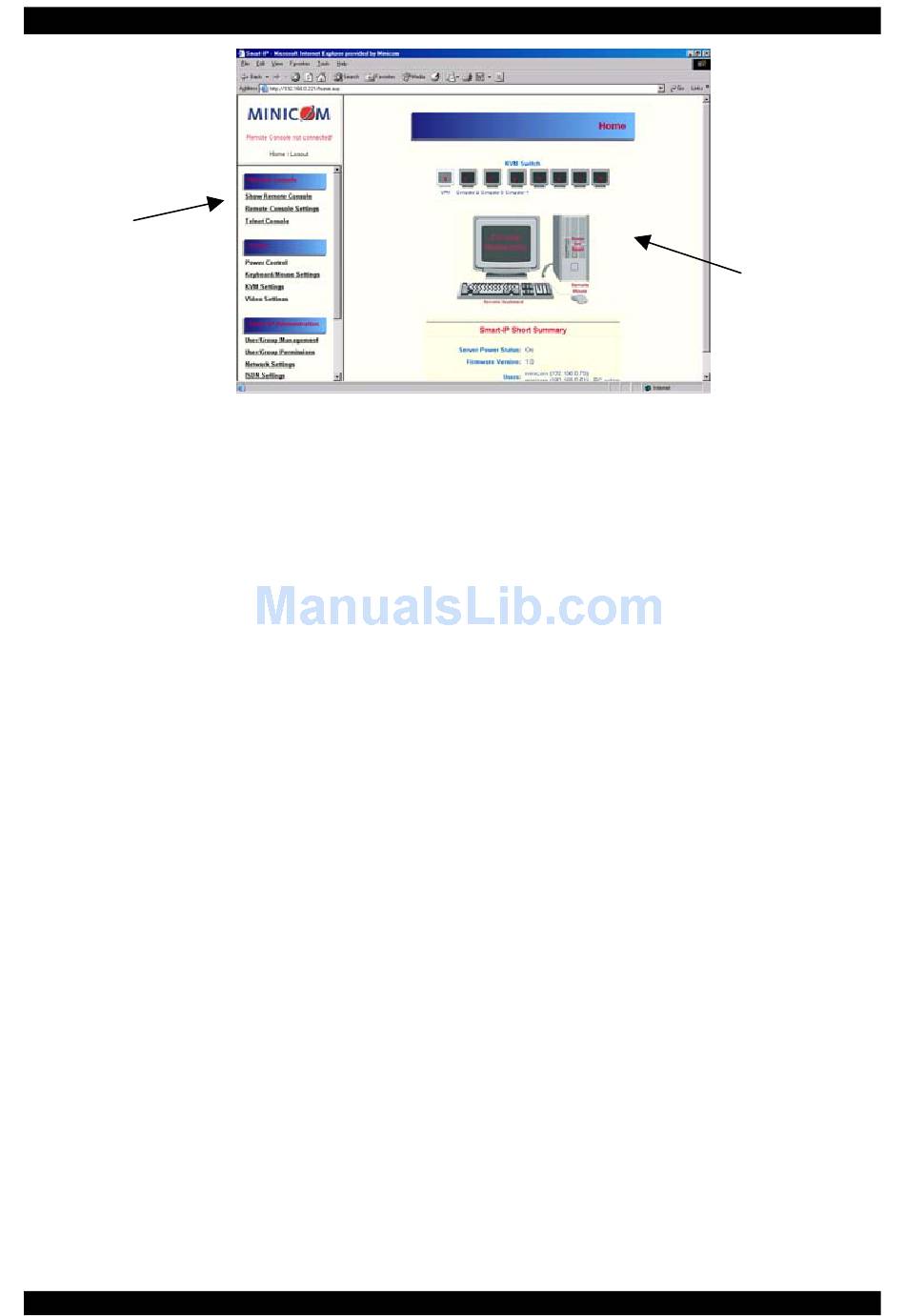

Figure 5 The Smart 16 IP Home page
.
9
.
Work area
