There can only be 1 Administrator password, 1 Supervisor password, and 6 User
passwords.
To change a user name or password:
1. Navigate to the desired line and column.
2. Type a new user name / password. User authentication is done solely via the
password there is no security significance to the names.
By default the User Profile settings are full access.
79. The OSD HELP window – F1
To access the HELP window press F1. The HELP window appears, see Figure 39.
Please note! All the functions set out in the Help window are performed from the
Main window. The Help window is merely a reminder of the hotkeys and their
functions.
80. Scanning computers – F4
Where necessary adjust the scan time in the Time Settings window, see above.
To activate scanning:
1. Press Shift twice to open the OSD.
2. Press F4. Your screen displays each active computer sequentially, with the
Scan label appearing in the top left corner.
To deactivate scanning:
Press F4.
OPERATING GUIDE

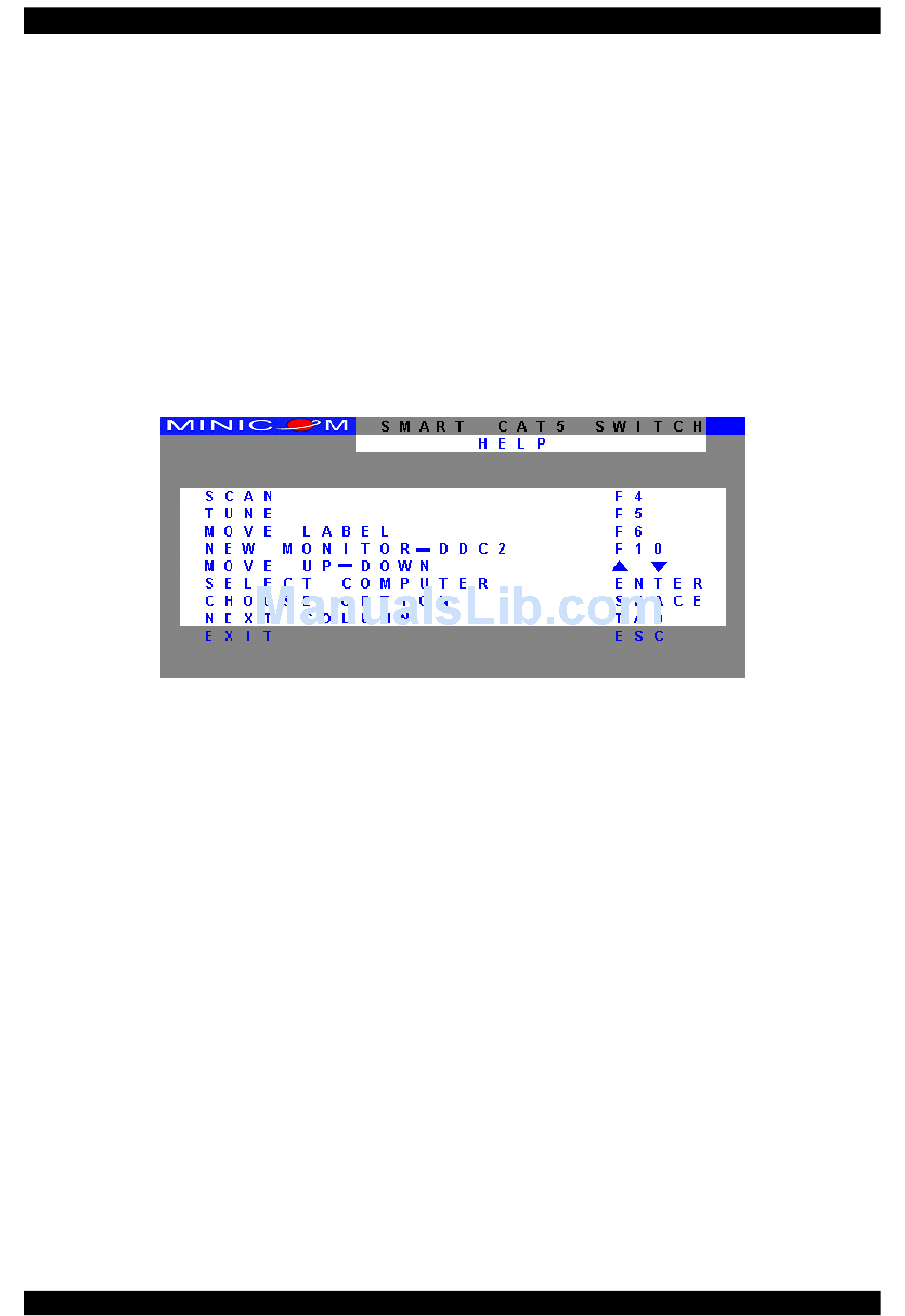

Figure 39 The HELP window
.
