70.

Navigating the OSD

To navigate up and down use the Up and Down arrow keys.

To jump from one column to the next (when relevant) use the Tab key.

To exit the OSD or return to a previous window within the OSD press Esc.

71.

To select a computer:

1. Navigate to the desired computer line.

2. Press Enter. The selected computer is accessed. A Confirmation label appears

showing which computer is accessed.

Note! When the OSD is displayed you cannot select computers using the

keyboard hotkeys.

72.

Press F2. The OSD Settings window appears see Figure 33.

Note! When the OSD is password protected (explained below) only the

Administrator has access to the F2 settings window.

73.

With the blue line on the word GENERAL, press Enter. The General settings

window appears see Figure 34.

SMART CAT5 SWITCH 16 IP

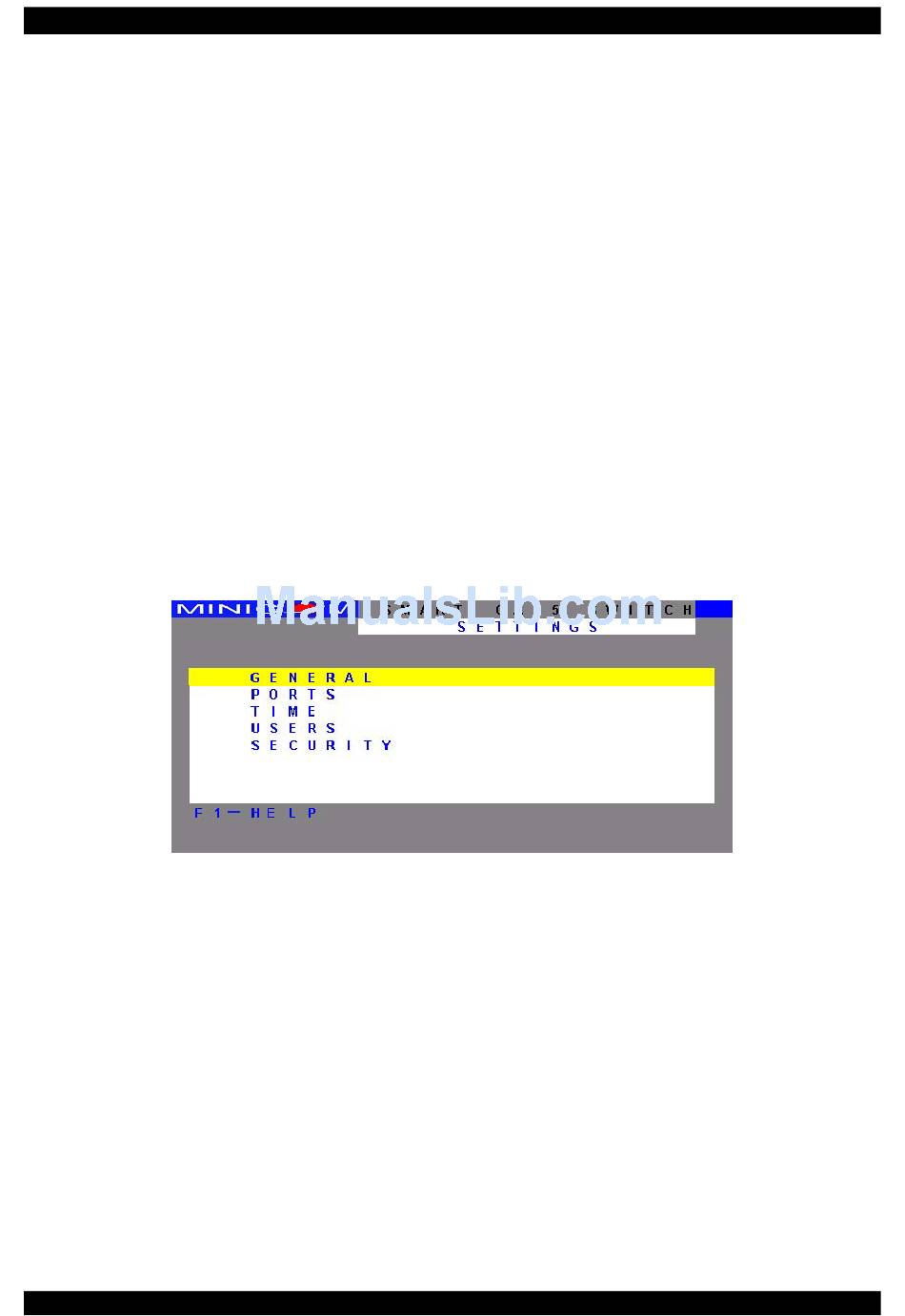

Figure 33 The Settings window
