Computer icons

Icon Meaning
Computer is connected and switched on
Computer is switched off or unconnected
Computer that you are presently connected to
Connected and switched on computer with a Local
Workstation attached and presently being used locally.
After remaining idle for the Timeout period, it changes to
yellow.
When you first open the Control window the software automatically gets the
status of the system, including the security access settings.
88.

Communication Error

If a Communication Error box appears when trying to scan the system – see
Figure 41.
Check that:
•
The RS232 Serial cable is connected to the computer's and Smart 16 IP
Manager's serial ports.
•
The Com Port settings in Options / Com Port are set correctly. After
changing the Com port exit and re-enter the Control software.
SMART CAT5 SWITCH 16 IP

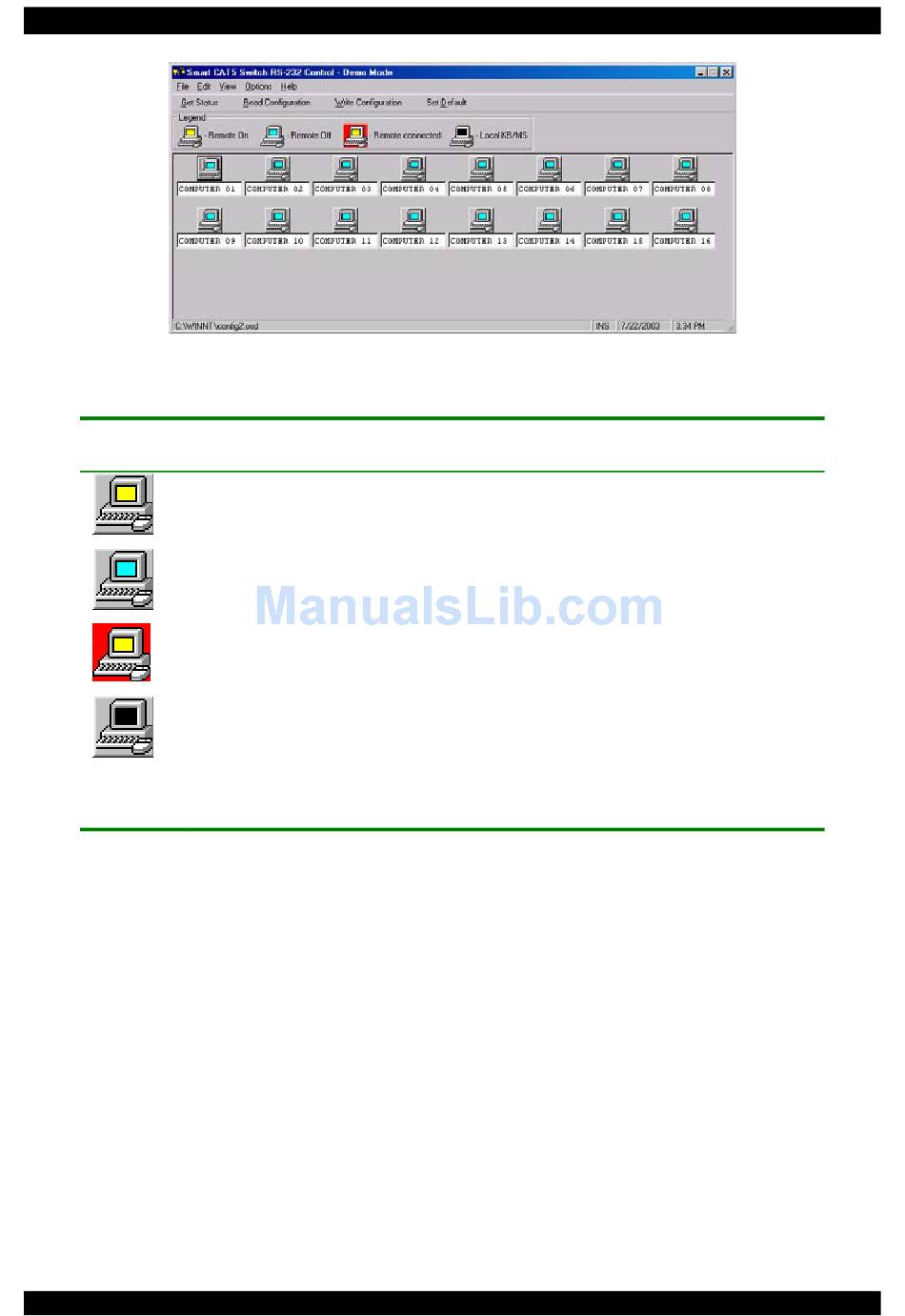

Figure 40 The Control window
.
