SPORT CRUISER

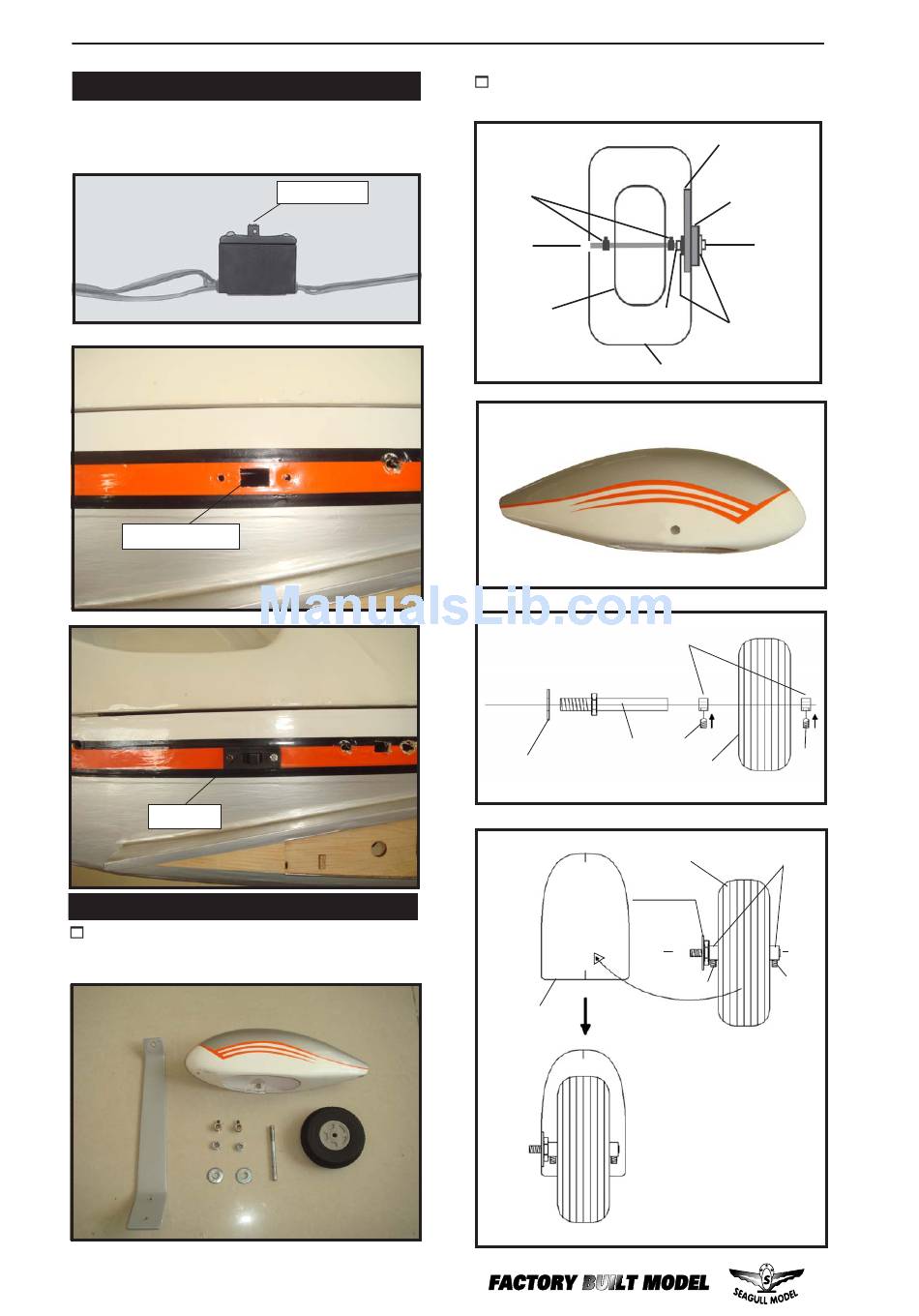

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side, in the fuselage.
Trim and cut.
Switch.
WHEEL AND WHEEL PANTS.
1) Assemble and mounting the landing
gear ,wheels to the wheel pants as shown in
the following pictures.
10
3/ 32" Hole.
Instruction Manual.
2) Follow diagram below for wheel pant
installation:
Wheel Collar.
Axle.
Wheel.
wheel collar.
Axle.
Washer.
Washer.
nut.
wheel Pant.
Lite -Plywood
block.
Landing Gear.
Nut.
Nut.
(2) Washer.
Wheel Pant.
M3.
M3.
wheel.
wheel.
wheel collar.
Axle.
M3.
M3.
