SPORT CRUISER

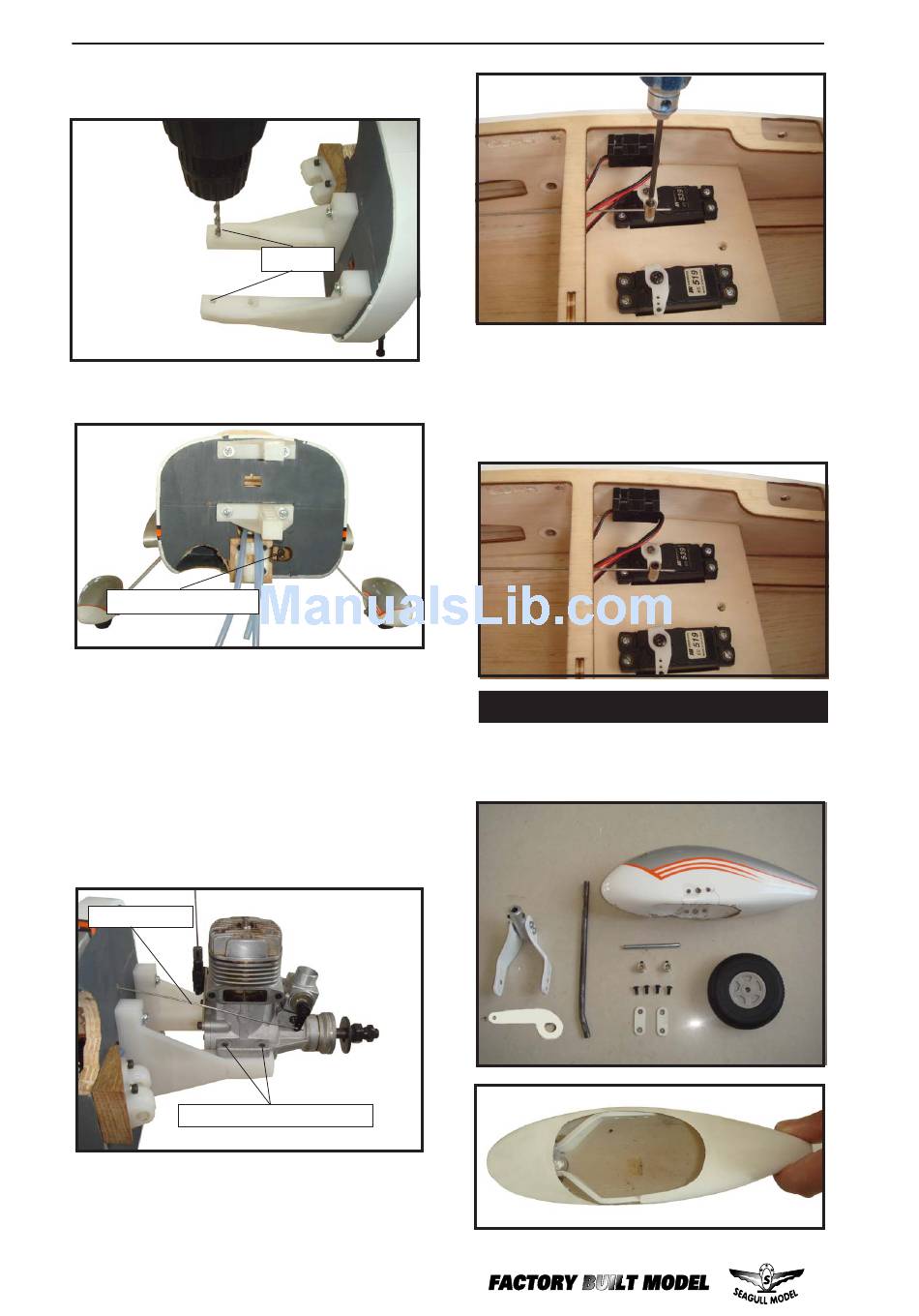

3) Use a drill to drill the four holes in the engine
mount rails.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
Pushrod tube hole.
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 600mm throttle
pushrod to the outer hole of the carburetor arm.
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M4x30mm machine screws to secure the
engine to the mount as shown.
Pushrod wire.
Machine screw M4x30mm.
12
4.5mm.
Instruction Manual.
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.

LANDING GEAR INSTALLATION:

A. NOSE GEAR:
1)Locate the items necessary to attach the nose
landing gear that are included with your model.
2
4
1
8
3
9
6
3
5
7
