Appendices
Optoisolated Inputs
All discrete inputs are optoisolated. Inputs can be configured as either NPN or PNP, but NPN
and PNP cannot be mixed in a system, because the input common is shared by all inputs.

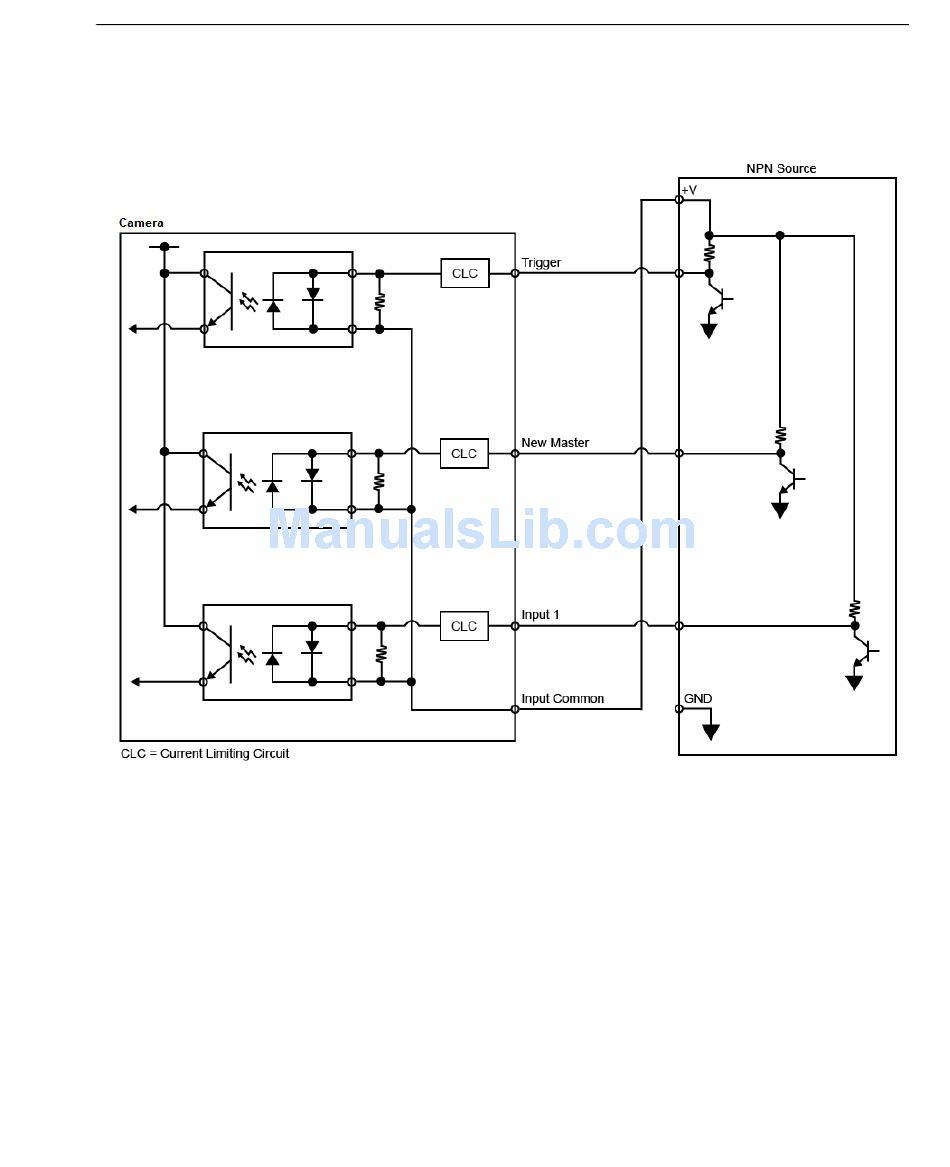

NPN
A-11
MS-4Xi Imager User's Manual
