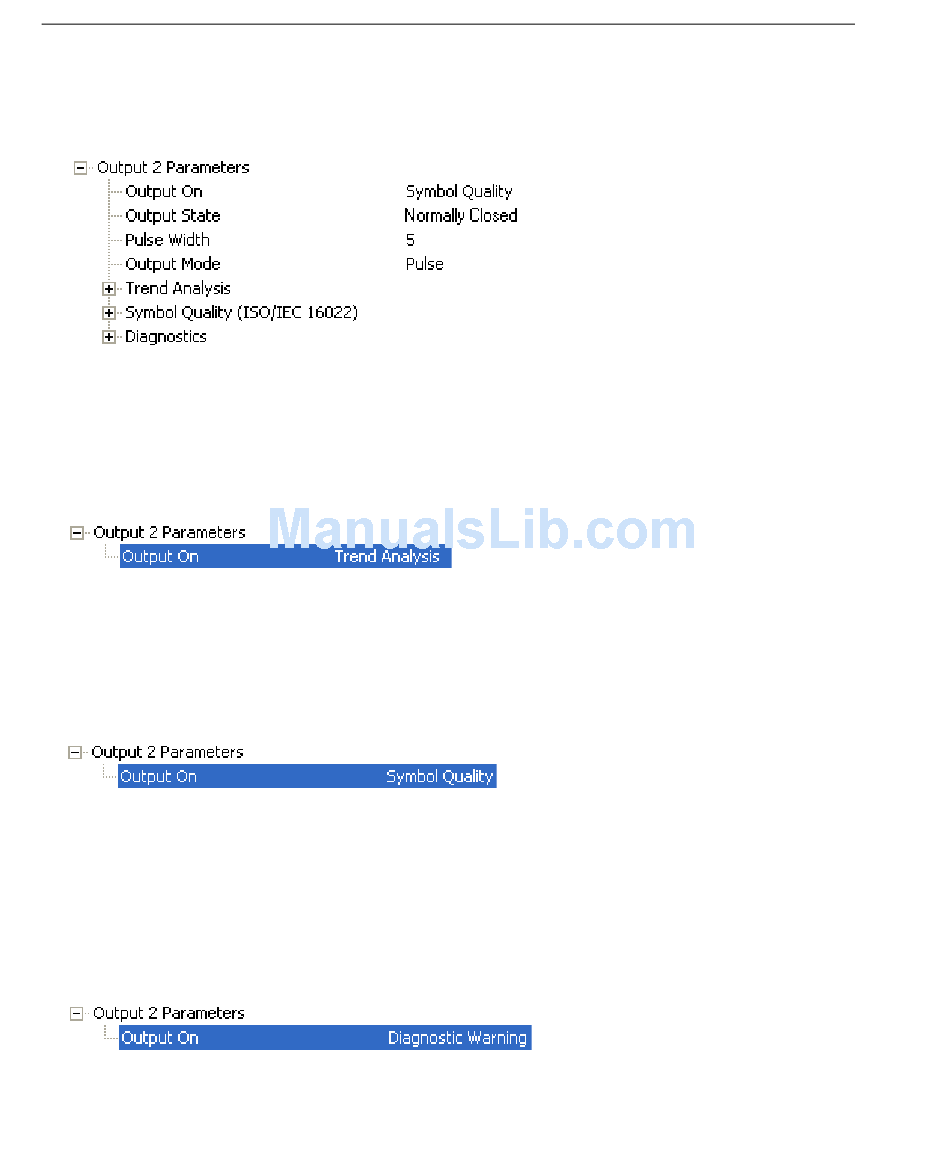

Configurable Output 2
Configurable Output 2
Note: Output 2 has the same parameters and default settings as Output 1.
Serial Cmd:
<K811,output on,output state,pulse width,output mode>
Trend Analysis Output 2
Note: Output On under Output 2 Parameters must be set to Trend Analysis for this output
to function.
Serial Cmd:
<K781,trend analysis mode,trigger evaluation period,number to output on>
ISO/IEC 16022 Symbol Quality Output 2
Note: Output On under Output 2 Parameters must be set to Symbol Quality for this
output to function.
Serial Cmd:
<K801,output on symbol contrast,symbol contrast threshold,output on print
growth,print growth threshold,output on axial non-uniformity,axial non- uniformity
threshold,output on UEC,UEC threshold>
Diagnostics Output 2
Note: Output On under Output 2 Parameters must be set to Diagnostic Warning for
this output to function.
Serial Cmd:
<K791,unused 1,service unit>
