Window of Interest by Serial Command

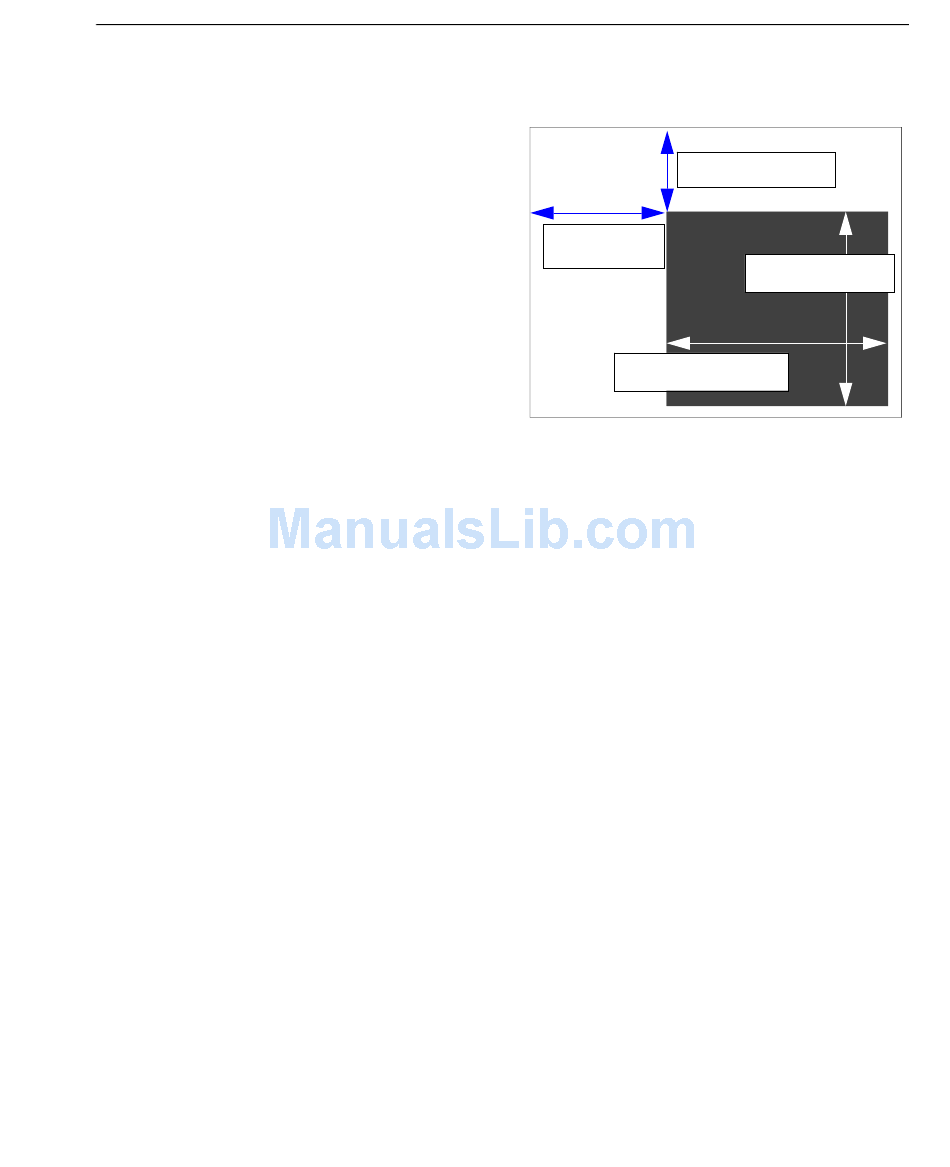

The figure shows where to locate the start
position of the row and column pointers and
how to measure the column depth and row
width dimensions.
Top (Row Pointer)
Definition: Defines the row position of the
upper-left starting point of the
window.
Serial <K516,row
Cmd: pointer,row depth,column width>
Default: 0
Options: 0 to 480
Left (Column Pointer)
Definition: Defines the column position of the upper-left starting point of the window.
Serial Cmd: <K516,row
Default: 0
Options: 0 to 640
Important: The column pointer setting must be an even value.
Height (Row Depth)
Definition: Defines the size, in rows, of the window. Maximum value is defined
as the maximum row size of the image sensor minus the Top value.
Serial Cmd: <K516,row pointer,column
Default: 0
Options: 3 to (480 - row pointer)
Width (Column Width)
Definition: Defines the column position of the upper-left starting point of the
window.
Serial Cmd: <K516,row pointer,column pointer,row
Default: 0
Options: 8 to (640 - column pointer)
MS-4Xi Imager User's Manual
pointer,column
pointer,column
WOI Column
Pointer
WOI Column Width
pointer,row depth,column width>
pointer,row depth,column width>
depth,column
Camera and IP Setup
WOI Row Pointer
WOI Row Depth
width>
