Electrical Specifications
Appendix B — Electrical Specifications
Power: 10-30 VDC, 200 mV p-p max ripple, 132 mA @ 24 VDC (typ.)

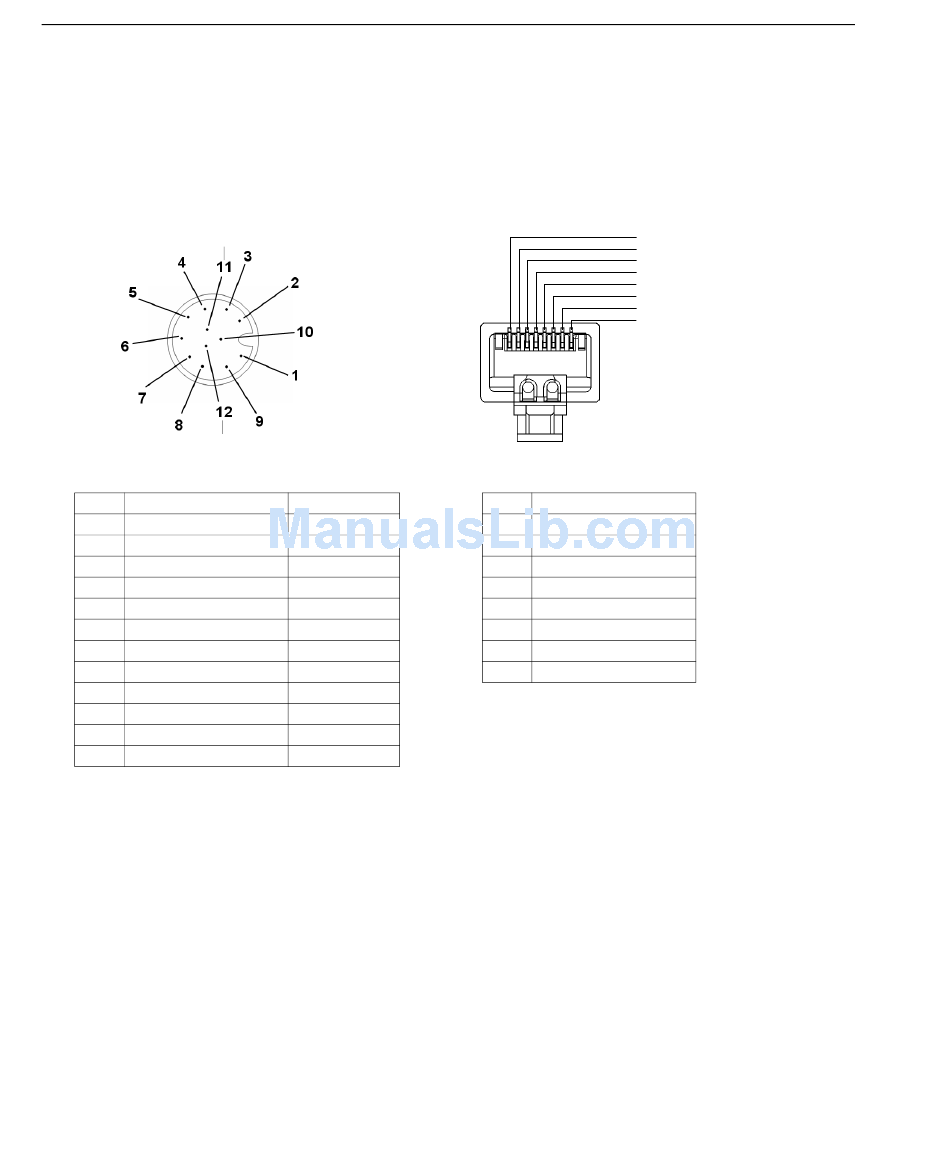

MS-4Xi Connectors
Output 2
New Master
Output 1
Output 3
Ground
Input Common
Output Common
M12 12-pin Plug
Pin
Function
1
Trigger
2
Power
3
Default
4
New Master
5
Output 1
6
Output 3
7
Ground
8
Input Common
9
RS-232 (Host) RxD
10
RS-232 (Host) TxD
11
Output 2
12
Output Common
A-6
Default
Power
RS-232
(Host) TxD
Trigger
RS-232 (Host) RxD
Wire Color
White
Brown
Green
Yellow
Gray
Pink
Blue
Red
Black
Violet
Gray/Pink
Red/Blue
8
NC
7
NC
6
RX (–)
5
NC
4
NC
3
RX (+)
2
TX (–)
1
TX (+)
RJ45 Plug
Pin
Function
1
TX (+)
2
TX (–)
3
RX (+)
4
NC
5
NC
6
RX (–)
7
NC
8
NC
