Lexmark X651de Service Manual page 547

4-bin mailbox assembly sensor (deflector gate HP) removal
1. Remove the 4-bin mailbox assembly left cover. See
page 4-218.
2. Remove the 4-bin mailbox assembly rear door assembly. See
assembly removal" on page
3. Remove the 4-bin mailbox assembly left rear inner cover.

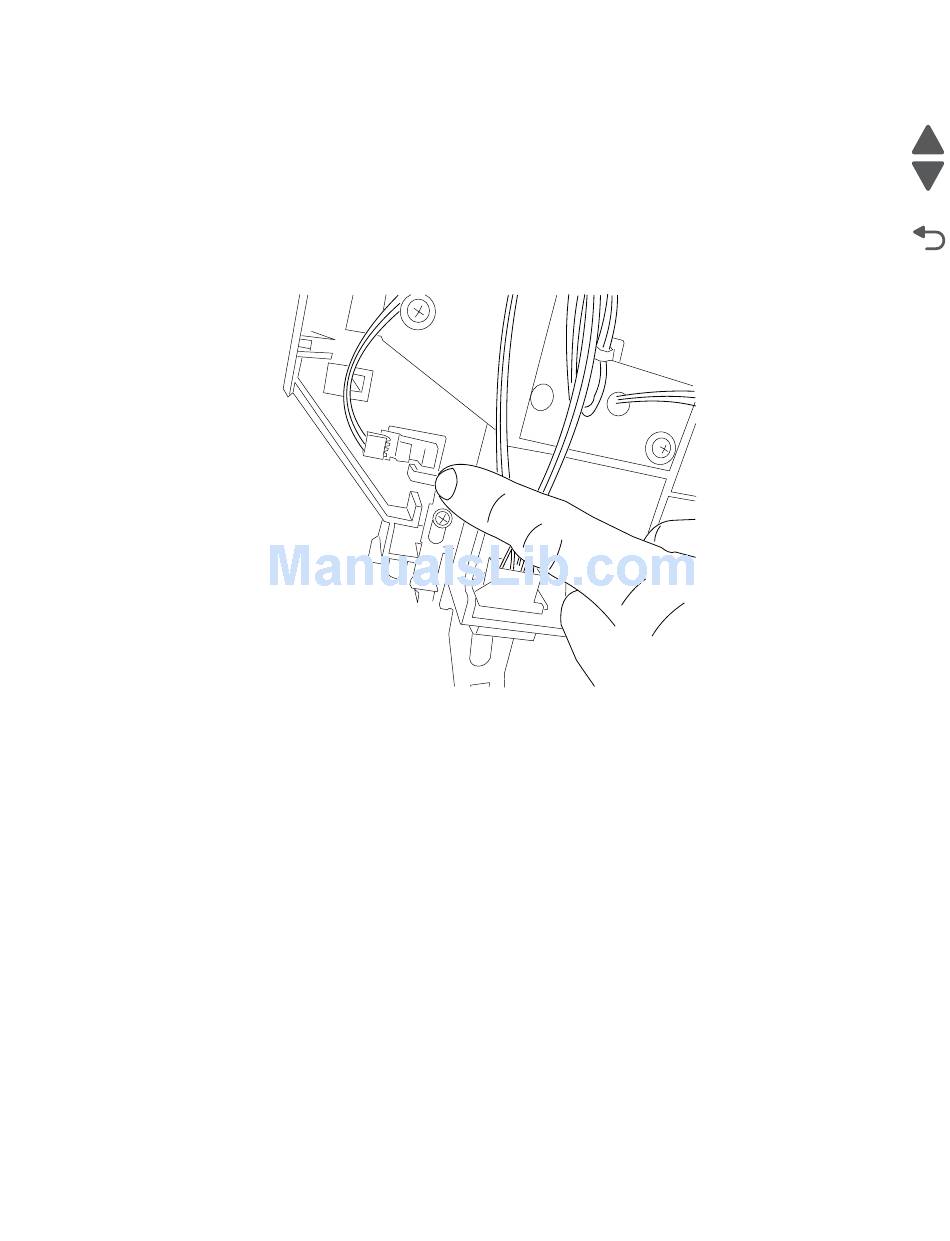

4. Release the tabs securing the sensor (deflector gate HP) and remove the sensor from the 4-bin mailbox
assembly.
5. Disconnect the harness from the sensor (deflector gate HP).
