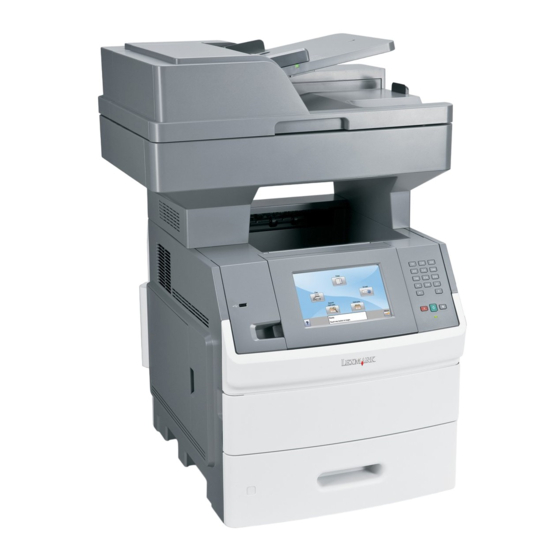

Lexmark X651DE Quick Reference Manual
Lexmark x651de: reference guide
Hide thumbs
Also See for X651DE:
- Service manual (665 pages) ,
- Troubleshooting manual (13 pages) ,
- User manual (318 pages)
Table of Contents
Advertisement
Quick Links
Lexmark™ X65x
Quick Reference
Loading paper and
specialty media
Loading the standard or
optional 250-sheet or 550-sheet
tray
Although the 250-sheet tray and the 550-sheet tray are different
in appearance, they require the same process for loading paper.
Use these instructions to load paper in either tray:
1
Pull the tray out.
Note: Do not remove trays while a job prints or while Busy
appears on the display. Doing so may cause a jam.
2
Squeeze the width guide tab inward as shown, and move the
width guide to the correct position for the paper size being
loaded.
1
3
Unlock the length guide, squeeze the length guide tab inward
as shown, and slide the guide to the correct position for the
paper size being loaded.
Notes:
•
Use the size indicators on the bottom of the tray to help
position the guides.
•
For standard paper sizes, lock the length guide.
4
Flex the sheets back and forth to loosen them, and then fan
them. Do not fold or crease the paper. Straighten the edges on
a level surface.
Advertisement
Table of Contents
Related Manuals for Lexmark X651DE
Summary of Contents for Lexmark X651DE
-
Page 1: Quick Reference
Lexmark™ X65x Quick Reference Loading paper and specialty media Loading the standard or optional 250-sheet or 550-sheet tray Although the 250-sheet tray and the 550-sheet tray are different in appearance, they require the same process for loading paper. Use these instructions to load paper in either tray: Pull the tray out. -
Page 2: Loading The 2000-Sheet Tray
Load the paper stack: • Print side facedown for single-sided printing • Print side faceup for duplex printing Note: Paper must be loaded differently in the trays if an optional StapleSmart II Finisher is installed. For more information, see the User's Guide. Note: Notice the maximum fill line on the side of the tray which indicates the maximum height for loading paper. -
Page 3: Loading The Multipurpose Feeder
Push the length guide release latch to raise the length guide, slide the guide to the correct position for the paper size being loaded, and then lock the guide. Flex the sheets back and forth to loosen them, and then fan them. -
Page 4: Setting The Paper Size And Paper Type
Slide the width guide to the far right. Flex the sheets of paper or specialty media back and forth to loosen them, and then fan them. Do not fold or crease them. Straighten the edges on a level surface. Load the paper or specialty media. Slide the stack gently into the multipurpose feeder until it comes to a stop. -
Page 5: Copying A Document That Contains Mixed Paper Sizes
Copying a document that contains mixed paper sizes Use the ADF to copy an original document that contains mixed paper sizes. Depending on the paper sizes loaded and the “Copy to” and “Copy from” settings, each copy is either printed on mixed paper sizes (Example 1) or scaled to fit a single paper size (Example Example 1: Copying to mixed paper sizes... -
Page 6: Sending A Fax Using The Printer Control Panel
You can print additional copies as long as the job remains stored in memory. Other types of held jobs include: • Profiles from various sources including Lexmark Document Solutions Suite (LDSS) • Forms from a kiosk •... -
Page 7: Printing From A Flash Drive
Supported file types include: .pdf, .gif, .jpeg, .jpg, .bmp, .png, .tiff, .tif, .pcx, and .dcx. Many flash drives are tested and approved for use with the printer. For more information, visit the Lexmark Web site at www.lexmark.com. Notes: •... -
Page 8: Cleaning The Scanner Glass
Wipe only the outside of the printer, making sure to include the standard exit bin. Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer. Make sure the paper support and standard exit bin are dry before beginning a new print job.
