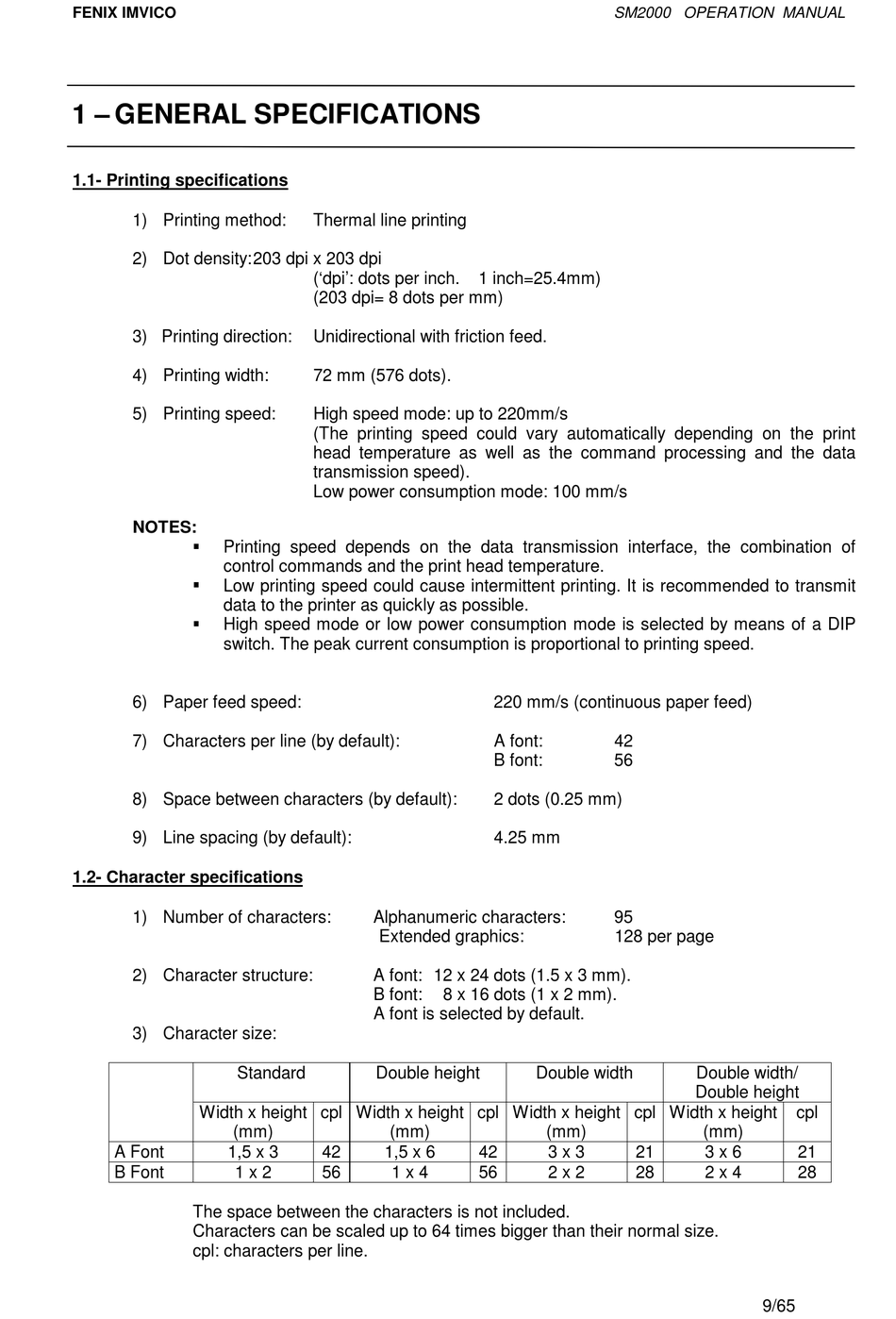

1 – GENERAL SPECIFICATIONS

1.1- Printing specifications

1) Printing method:
2) Dot density:203 dpi x 203 dpi
3) Printing direction:
4) Printing width:
5) Printing speed:
NOTES:
#
Printing speed depends on the data transmission interface, the combination of
control commands and the print head temperature.
#
Low printing speed could cause intermittent printing. It is recommended to transmit
data to the printer as quickly as possible.
#
High speed mode or low power consumption mode is selected by means of a DIP
switch. The peak current consumption is proportional to printing speed.
6) Paper feed speed:
7) Characters per line (by default):
8) Space between characters (by default):
9) Line spacing (by default):

1.2- Character specifications

1) Number of characters:
2) Character structure:
3) Character size:
Standard
Width x height
(mm)
A Font 1,5 x 3
B Font 1 x 2
The space between the characters is not included.
Characters can be scaled up to 64 times bigger than their normal size.
cpl: characters per line.
Thermal line printing
('dpi': dots per inch. 1 inch=25.4mm)
(203 dpi= 8 dots per mm)
Unidirectional with friction feed.
72 mm (576 dots).
High speed mode: up to 220mm/s
(The printing speed could vary automatically depending on the print
head temperature as well as the command processing and the data
transmission speed).
Low power consumption mode: 100 mm/s
Alphanumeric characters:
Extended graphics:
A font: 12 x 24 dots (1.5 x 3 mm).
B font: 8 x 16 dots (1 x 2 mm).
A font is selected by default.
Double height
cpl Width x height cpl Width x height
(mm)
42 1,5 x 6 42
56 1 x 4 56
SM2000 OPERATION MANUAL
220 mm/s (continuous paper feed)
A font: 42
B font: 56
2 dots (0.25 mm)
4.25 mm
95
128 per page
Double width
cpl Width x height
(mm)
3 x 3 21
2 x 2 28
Double width/
Double height
cpl
(mm)
3 x 6 21
2 x 4 28
9/65
