NOTES:
•
Use paper rolls that meet the specifications indicated in this manual.
•
DO NOT open the printer cover during the printing operation.
•
Close the cover correctly, checking that the 'PAPER OUT' LED turns off.

3.2- CLEARING A PAPER JAM

If a paper jam occurs, please proceed as indicated in the following steps:
1) Switch the printer off and press the button in order to try and open the cover.
2) If the paper is jammed with the cutter and the cover can not be opened, then the cutter
position must be restored: remove the screw located on the right side of the printer, inset a
philips screwdriver (Ø 3mm) until search the cutter continuous screw, and turning it until the
cover can be lifted easily.
Warning: Never force the opening of the cover, as the cutter blade could bend and become
permanently damaged if the paper is jammed with it.
Continuous screw to
manually unblock the
cutter.
3) Remove the jammed paper and any other remaining piece of paper. Install the paper roll in the
same way as indicated in the previous section.

3.3- BUTTONS AND SWITCHES

3.3.1- Power supply switch

It is placed on the lower front of the printer and acts as the switch of the external power supply. The front
panel provides a 'POWER' LED that indicates whether the power is on.

3.3.2- Paper advance button (FEED)

The FEED button in the front panel activates the automatic paper advance.
The paper is advanced while the button is kept pressed. The FEED button functionality is not enabled in
the following conditions:
(1) The paper sensor does not detect paper.
(2) The cover is open.
(3) The ESC c 5 command has been sent.

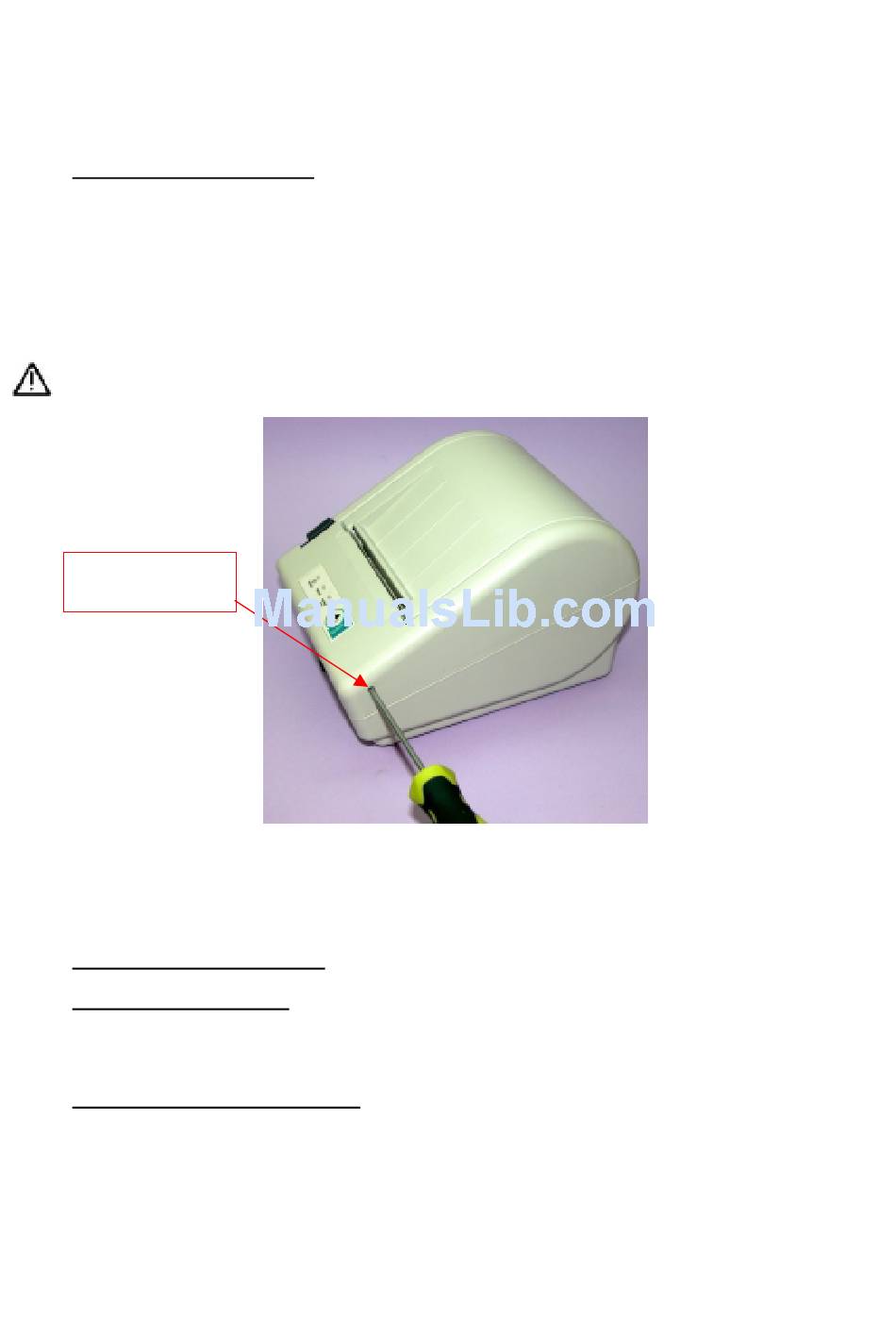

Fig. 3.2- Manual cutter positioning.
