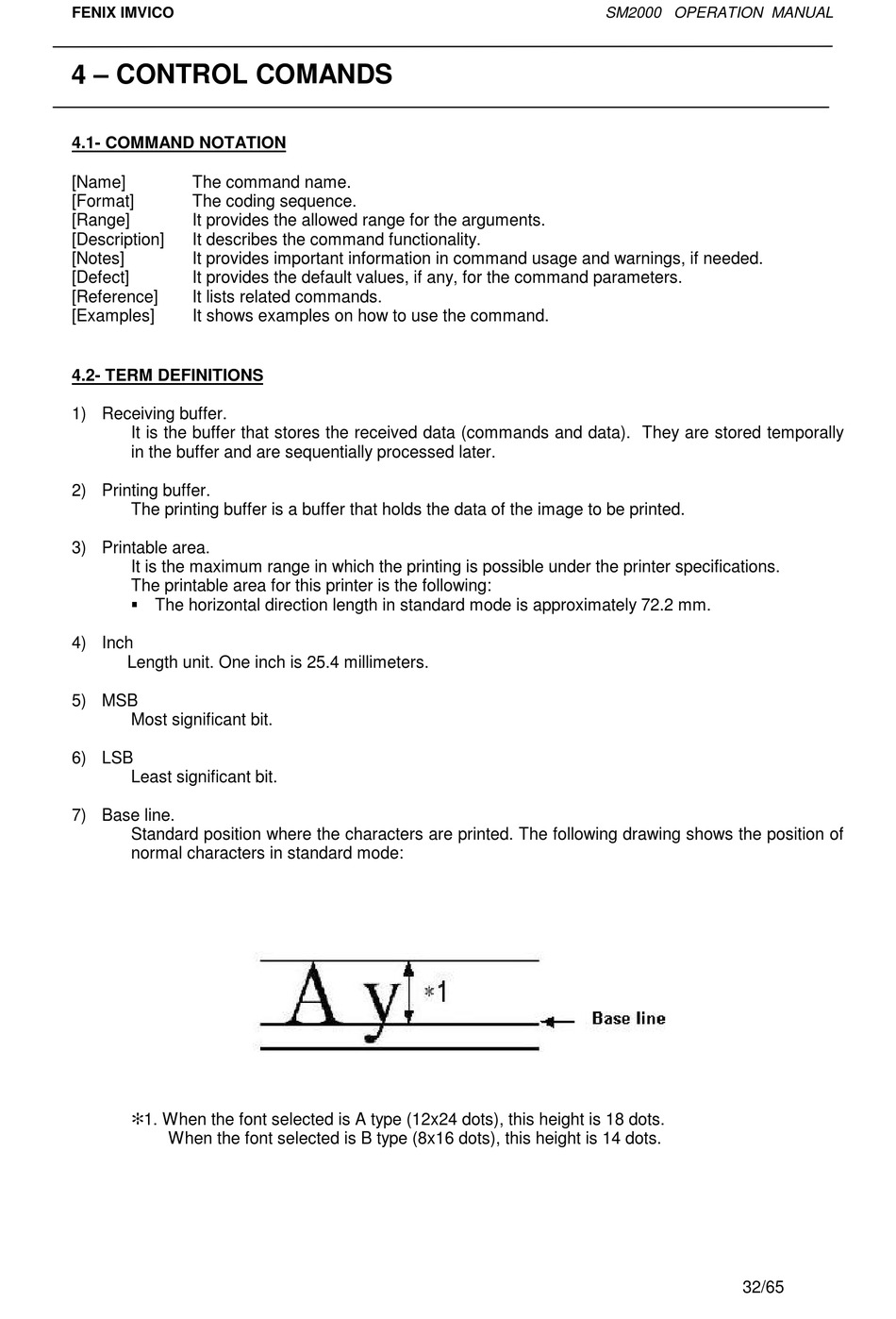

4 – CONTROL COMANDS

4.1- COMMAND NOTATION

[Name] The command name.
[Format] The coding sequence.
[Range] It provides the allowed range for the arguments.
[Description] It describes the command functionality.
[Notes] It provides important information in command usage and warnings, if needed.
[Defect] It provides the default values, if any, for the command parameters.
[Reference] It lists related commands.
[Examples] It shows examples on how to use the command.

4.2- TERM DEFINITIONS

1) Receiving buffer.
It is the buffer that stores the received data (commands and data). They are stored temporally
in the buffer and are sequentially processed later.
2) Printing buffer.
The printing buffer is a buffer that holds the data of the image to be printed.
3) Printable area.
It is the maximum range in which the printing is possible under the printer specifications.
The printable area for this printer is the following:
# The horizontal direction length in standard mode is approximately 72.2 mm.
4) Inch
Length unit. One inch is 25.4 millimeters.
5) MSB
Most significant bit.
6) LSB
Least significant bit.
7) Base line.
Standard position where the characters are printed. The following drawing shows the position of
normal characters in standard mode:
1. When the font selected is A type (12x24 dots), this height is 18 dots.
When the font selected is B type (8x16 dots), this height is 14 dots.
