FENIX IMVICO

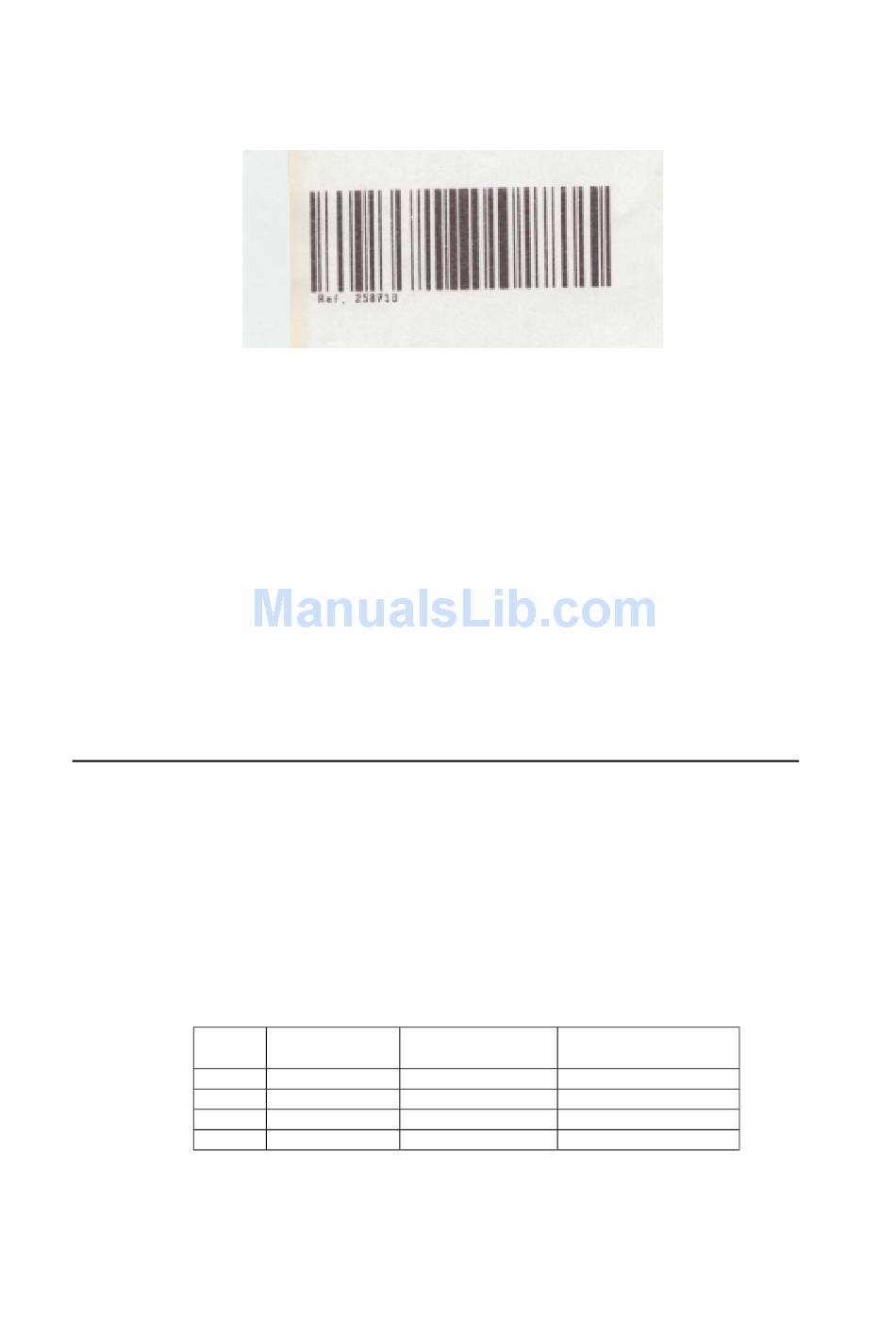

[Example] Example data for printing "Ref. 258710"
In this example, the printer first prints "Ref." using CODE B, then prints the following numbers
using CODE C.
GS k 73 11 123 66 82 101 102 46 123 67 25 87 10
1) If the top of the bar code data is not the code set selection character, the printer
stops command processing and processes the following data as normal data.
2) If combination of "{" and the following character does not apply any special
character, the printer stops command processing and processes the following data
as normal data.
3)
If the printer receives characters that cannot be used in the special code set, the
printer stops command processing and processes the following data as normal
data.
4) The printer does not print HRI characters that correspond to the shift characters or
code set selection characters.
5)
HRI character for the function character is space.
6) HRI characters for the control character (<00>H to <1F>H and <7F>H) are space.
<Others>
Be sure to keep spaces on both right and left sides of a bar code. (Spaces are different
depending on the types of the bar code.)
[Reference]
GS h, GS w
GS v 0 m xL xH yL yH d1 ... dk
[Name]
Print raster bit image
[Format]
ASCII
Hex
Decimal
0 ≤ m ≤ 3, 48 ≤ m ≤ 51
[Range]
0 ≤ xL ≤ 255
0 ≤ xH ≤ 255
0 ≤ yL ≤ 255
0 ≤ yH ≤ 8
0 ≤ d ≤ 255
k = (xL + xH x 256) x (yL + yH x 256) (k ≠ 0)
[Description]
Selects Raster bit-image mode. The value of m selects the mode, as follows:
m
0, 48
1, 49
2, 50
3, 51
[dpi : dots per 25.4 mm]
GS
v
0
1D
76
30
29
118
48
Vertical Dot
Mode
Normal
Double-width
Double-height
Quadruple
m
xL xH yL yH d1...dk
m
xL xH yL yH d1...dk
m
xL xH yL yH d1...dk
Horizontal Dot
Density
203.2 dpi
203.2 dpi
101.6 dpi
101.6 dpi
SM2000 OPERATION MANUAL
Density
203.2 dpi
101.1 dpi
203.2 dpi
101.6 dpi
47/65
