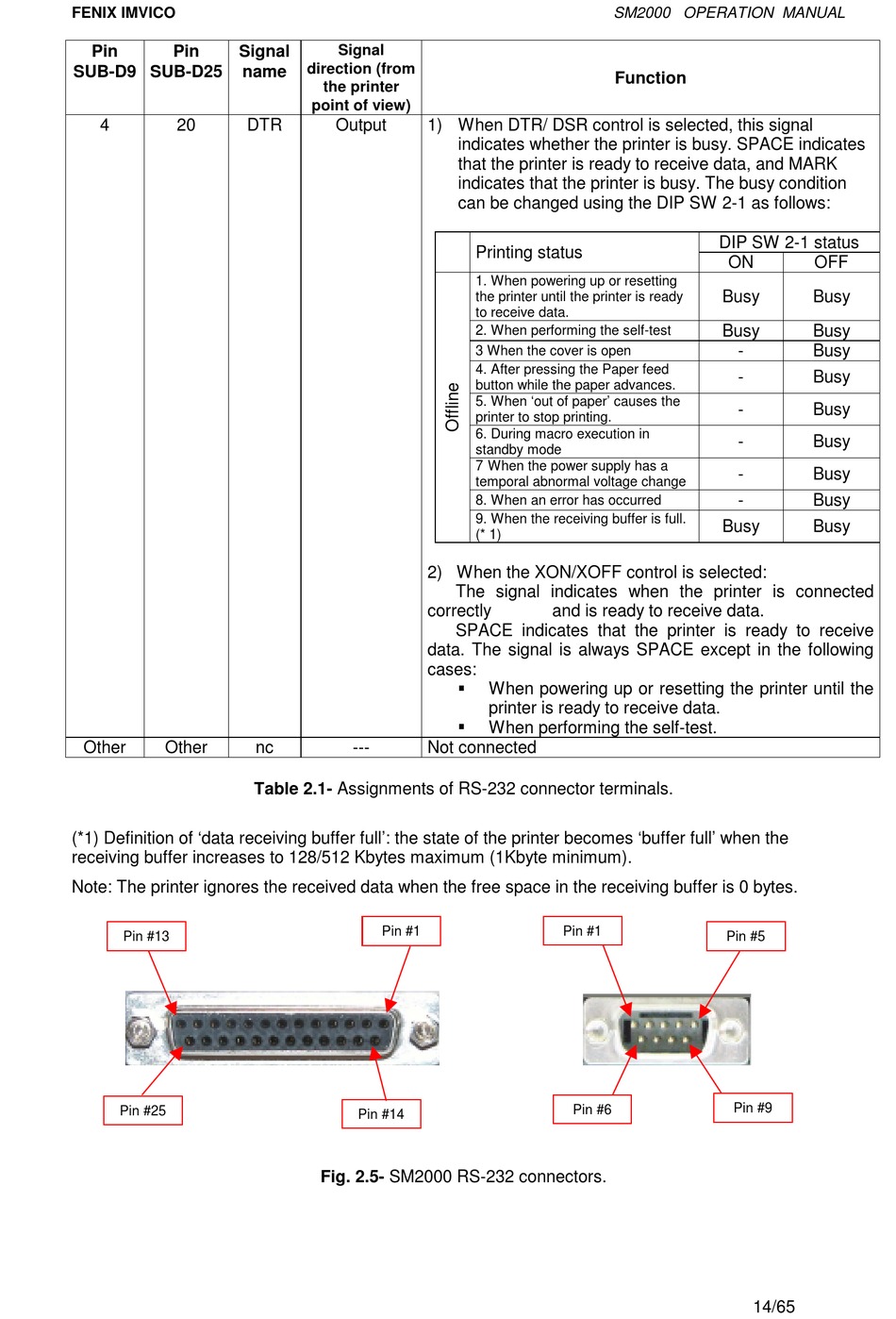

Fig. 2.5- Sm2000 Rs-232 Connectors - Fenix SM2000 Operation Manual

FENIX IMVICO
Pin Pin Signal
SUB-D9 SUB-D25
4 20
Other Other
(*1) Definition of 'data receiving buffer full': the state of the printer becomes 'buffer full' when the
receiving buffer increases to 128/512 Kbytes maximum (1Kbyte minimum).
Note: The printer ignores the received data when the free space in the receiving buffer is 0 bytes.
Pin #13
Pin #25
Signal
direction (from
name
the printer
point of view)
DTR Output
nc ---
Table 2.1- Assignments of RS-232 connector terminals.
Pin #1
Pin #14

Fig. 2.5- SM2000 RS-232 connectors.

1) When DTR/ DSR control is selected, this signal
indicates whether the printer is busy. SPACE indicates
that the printer is ready to receive data, and MARK
indicates that the printer is busy. The busy condition
can be changed using the DIP SW 2-1 as follows:
Printing status
1. When powering up or resetting
the printer until the printer is ready
to receive data.
2. When performing the self-test
3 When the cover is open
4. After pressing the Paper feed
button while the paper advances.
5. When 'out of paper' causes the
printer to stop printing.
6. During macro execution in
standby mode
7 When the power supply has a
temporal abnormal voltage change
8. When an error has occurred
9. When the receiving buffer is full.
(* 1)
2) When the XON/XOFF control is selected:
The signal indicates when the printer is connected
correctly and is ready to receive data.
SPACE indicates that the printer is ready to receive
data. The signal is always SPACE except in the following
cases:
#
When powering up or resetting the printer until the
printer is ready to receive data.
#
When performing the self-test.
Not connected
Pin #1
Pin #6
SM2000 OPERATION MANUAL
Function
DIP SW 2-1 status
ON
Busy
Busy
-
-
-
-
-
-
Busy
Pin #5
Pin #9
14/65
OFF
Busy
Busy
Busy
Busy
Busy
Busy
Busy
Busy
Busy
