2.6- DRAWER INTERFACE

The SM2000 allows controlling one or two coins drawers. Drawing opening is performed by means of
ESC p command, and drawer status (open/close) can be tested by means of DEL EOT command.
Pin nº1
Warning: DO NOT connect a telephone line to the coins drawer open connector, as it could
cause damage to the printer and to the telephone line.
The male connector that must be used in order to connect to the coins drawer to the SM2000 is
the 6 contacts RJ12 standard connector or compatible.
1) Pin assignment:
Pin number
1
2
3
4
5
6
2) Connector model (user side):
3) Open drawer signal:
•
Output signal:
Warning: In order to avoid over current and the SM2000 driver damage, the solenoid resistance
that opens the drawer must be > 24 Ω. The maximum current consumption of the SM2000 driver
for the drawer opening is 1 A (maximum 0.512 sec).
•
Output wave form:

Fig. 2.9- Output signal waveform for the drawer opening action.

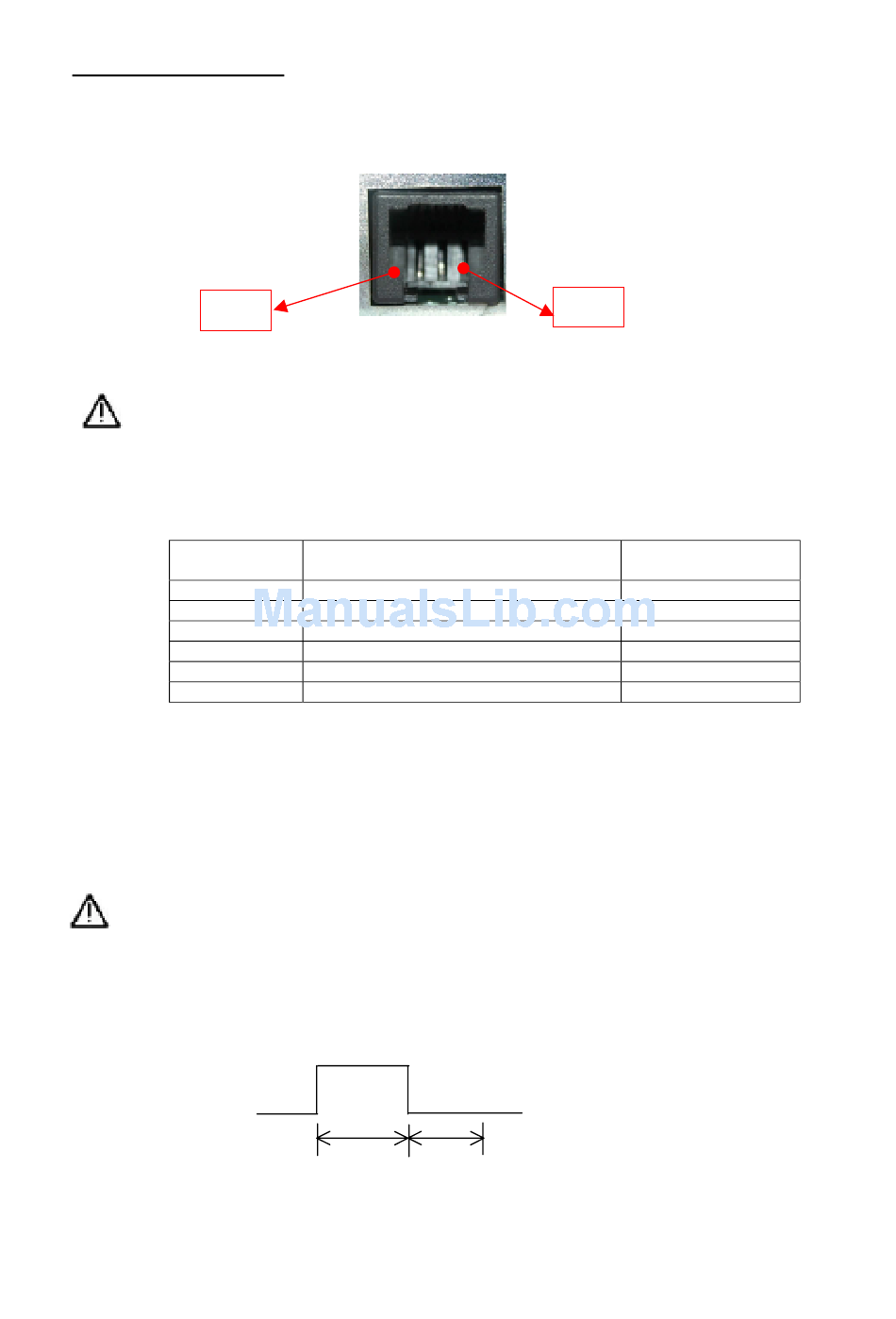

Fig. 2.8- SM2000 coins drawer connector.

Signal name
Ground GND
Open drawer 1 signal
Open/close drawer signal
+24 Vdc
Open drawer 2 signal
GND signal
Table 2.4- Drawer connector pins.
The t1 (ON) and t2 (OFF) times are specified by means of the ESC p command.
t1 x 2 ms
Pin nº6
6 positions, 6 contacts (RJ12 telephone jack)
Output voltage: 24 V approx.
Output current: 1 A or less.
t2 x 2 ms
SM2000 OPERATION MANUAL
Direction from the
SM2000
-
Output
Input
-
Output
-
