Wire Communication - Valcom V-WMCA Instruction Manual

Valcom Master Clock

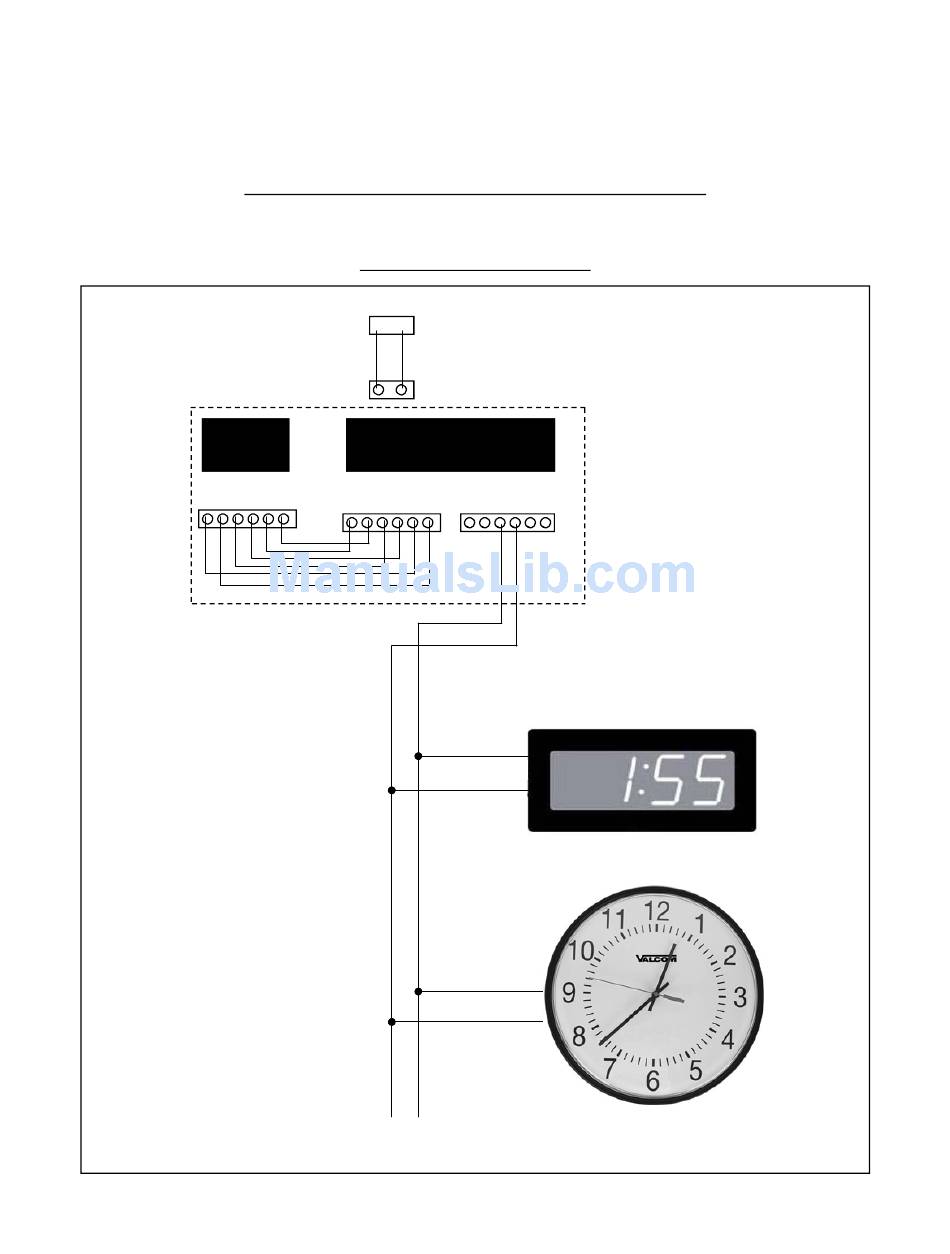

System Connections - Wired Systems
V-C6124P
24 volt outputs
+ - + -
(V2)

2 Wire Communication

19 18
DATA IN
V-CCU
24 VDC IN
+ -
+ - + - + -
Orange
Yellow
Black
White
V-C6124P and the V-CCU
are ordered as a V-VCU
2 Wire Digital
Output to Clocks
V-D2425 or V-D2440
V-A2412 or V-A2416
