Valcom Master Clock
(V2)

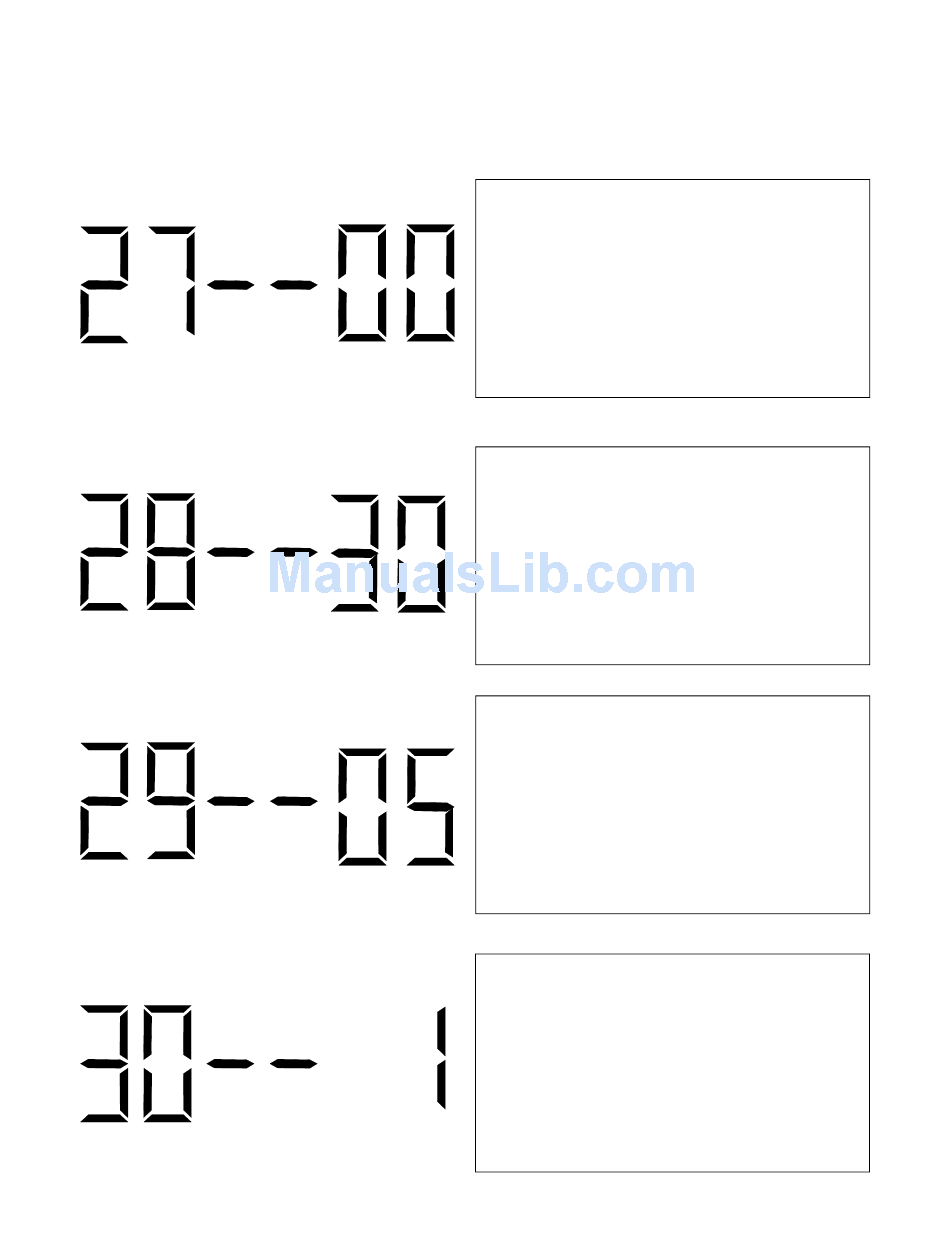

Press the top button to enter option 27. The num-
ber "27" will appear on the left side of the LED
display. This option allows the user to set the min-
utes at which the relay will close. Press the bottom
button to scroll through "00-59".
Press the top button to enter option 28. The num-
ber "28" will appear on the left side of the LED
display. This option allows the user to set the sec-
onds at which the relay will close. Press the bottom
button to scroll through "00-59".
Press the top button to enter option 29. The num-
ber "29" will appear on the left side of the LED
display. This option allows the user to set the dura-
tion (in seconds) that the user wishes the relay to
close. Press the bottom button to scroll through
"00-99".
Press the top button to enter option 30. The num-
ber "30" will appear on the left side of the LED
display. This option allows the user to select the
primary auxiliary input. Press the bottom button to
scroll between "1-13" to select the input.
00 - Real Time Clock
01 - SNTP
02 - 59 Minute Correction
03 - 58 Minute Correction (1)
04 - 58 Minute Correction (2)
05 - 58 Minute Correction (3)
06 - 58 Minute Correction (4)
07 - National Time/Rauland
08 - Dukane
09 - Rauland Digital
10 - Wireless Repeater
11 - Once a Day Pulse*
12 - GPS
13 - RS485
* - Selecting this allows access to options 34-36
Page 15
