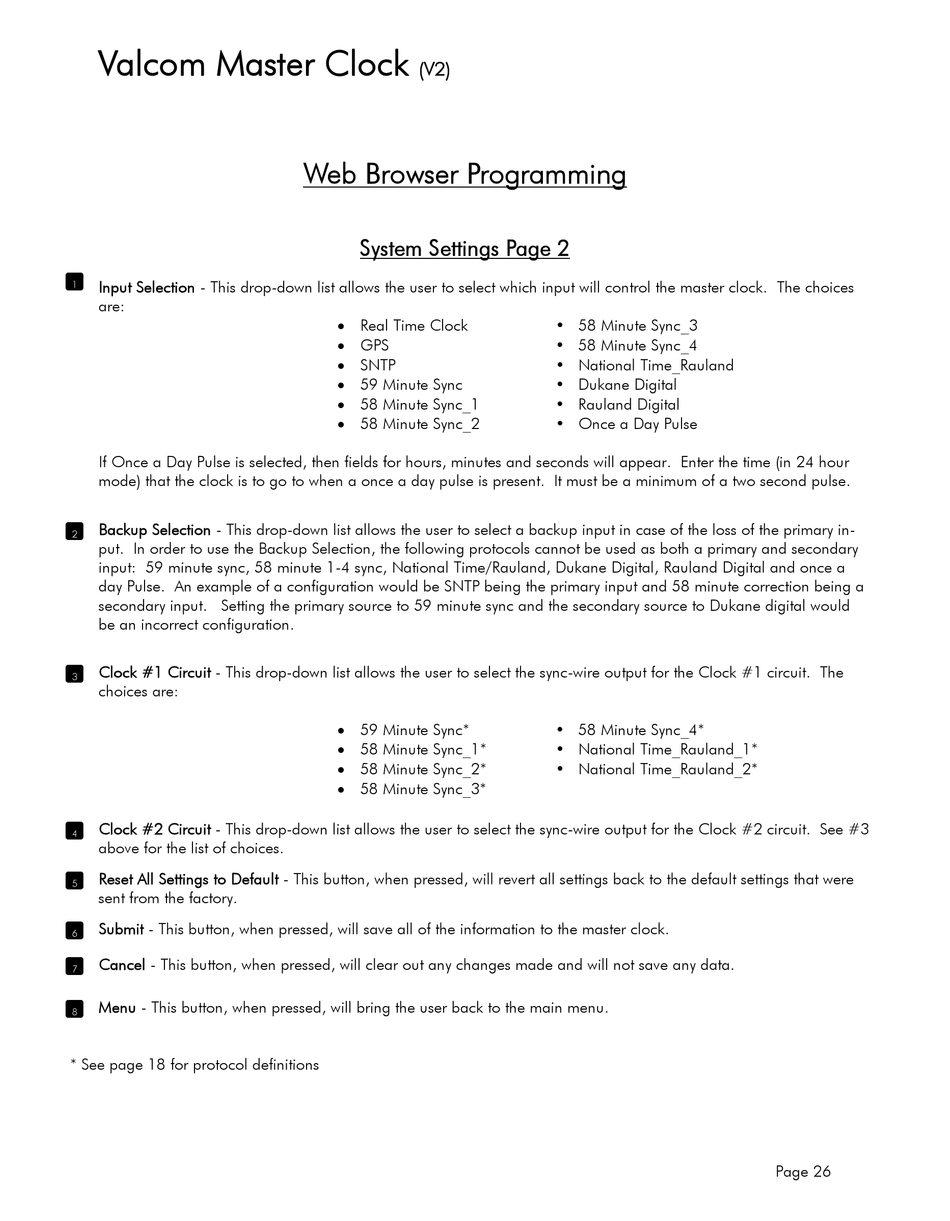

Valcom Master Clock
Input Selection - This drop-down list allows the user to select which input will control the master clock. The choices
1
are:
If Once a Day Pulse is selected, then fields for hours, minutes and seconds will appear. Enter the time (in 24 hour
mode) that the clock is to go to when a once a day pulse is present. It must be a minimum of a two second pulse.
Backup Selection - This drop-down list allows the user to select a backup input in case of the loss of the primary in-
2
put. In order to use the Backup Selection, the following protocols cannot be used as both a primary and secondary
input: 59 minute sync, 58 minute 1-4 sync, National Time/Rauland, Dukane Digital, Rauland Digital and once a
day Pulse. An example of a configuration would be SNTP being the primary input and 58 minute correction being a
secondary input. Setting the primary source to 59 minute sync and the secondary source to Dukane digital would
be an incorrect configuration.
Clock #1 Circuit - This drop-down list allows the user to select the sync-wire output for the Clock #1 circuit. The
3
choices are:
Clock #2 Circuit - This drop-down list allows the user to select the sync-wire output for the Clock #2 circuit. See #3
4
above for the list of choices.
Reset All Settings to Default - This button, when pressed, will revert all settings back to the default settings that were
5
sent from the factory.
Submit - This button, when pressed, will save all of the information to the master clock.
6
Cancel - This button, when pressed, will clear out any changes made and will not save any data.
7
Menu - This button, when pressed, will bring the user back to the main menu.
8
* See page 18 for protocol definitions
(V2)
Web Browser Programming
System Settings Page 2
 Real Time Clock
 GPS
 SNTP
 59 Minute Sync
 58 Minute Sync_1
 58 Minute Sync_2
 59 Minute Sync*
 58 Minute Sync_1*
 58 Minute Sync_2*
 58 Minute Sync_3*
• 58 Minute Sync_3
• 58 Minute Sync_4
• National Time_Rauland
• Dukane Digital
• Rauland Digital
• Once a Day Pulse
• 58 Minute Sync_4*
• National Time_Rauland_1*
• National Time_Rauland_2*
