Sending Diagnostics - Valcom V-WMCA Instruction Manual

Valcom Master Clock
(V2)

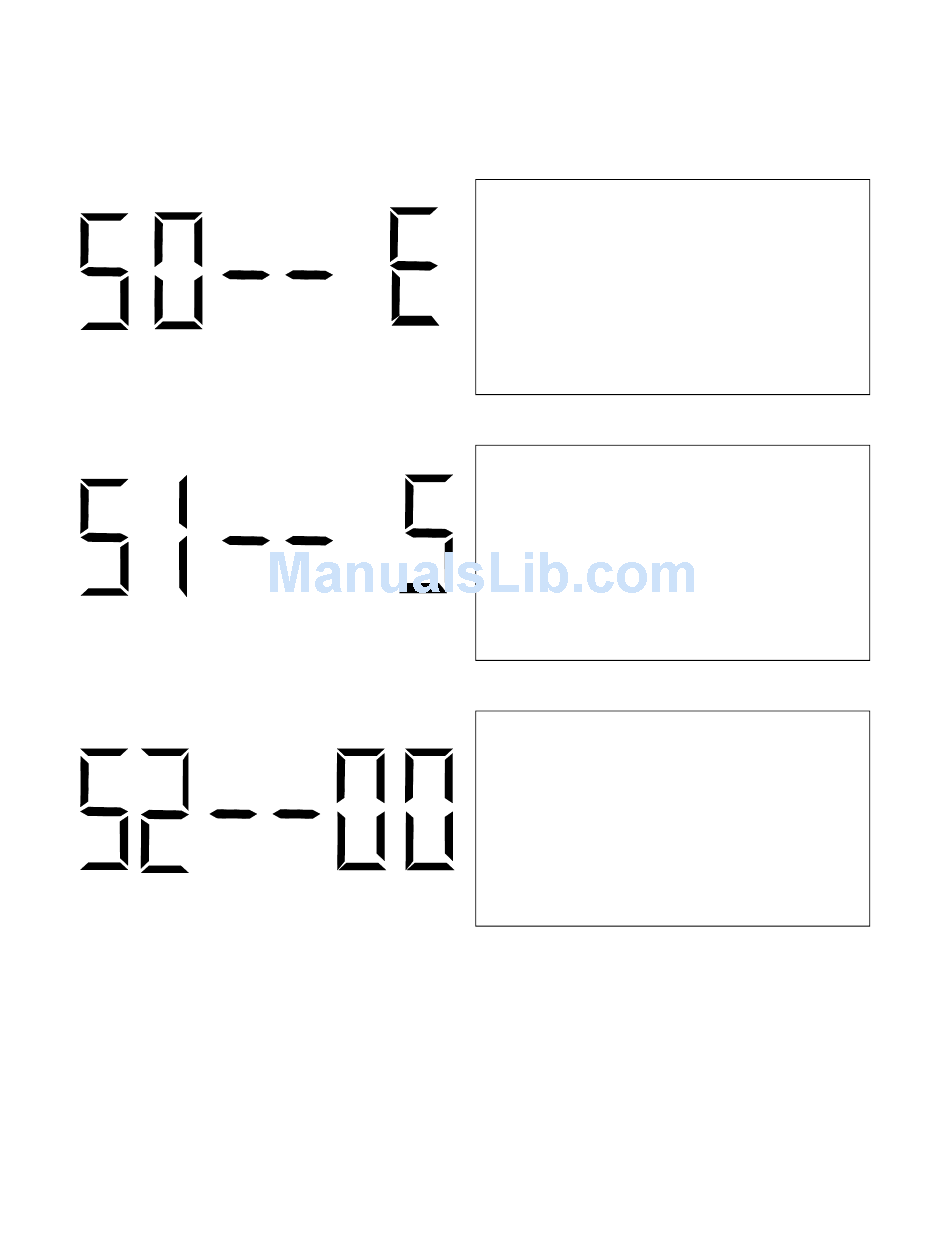

Press the top button to enter option 50. The num-
ber "50" will appear on the left side of the LED
display. This option allows the user to enter diag-
nostic mode. Press the bottom button to scroll be-
tween "E - d". Setting the option to "E" will enable
the option and will enter diagnostic mode. Setting
the option to "d" will disable the option and upon
depressing the top button, the clock will return to
the time.
Press the top button to enter option 51. The num-
ber "51" will appear on the left side of the LED
display. This option allows the user to send the
diagnostic to the slave clocks. Pressing the bottom
button will scroll from "1-5 and 9".
01 - Protocol Verification
02 - Comprehensive Test
03 - Manufacturer's Default
04 - Combination of 02 & 03 (button must be pressed on V-A2412/V-A2416)
05 - Combination of 02 & 03 (no need to press button on V-A2412/V-A2416)
09 - Overrides the Previous Diagnostic and Goes Back to the Time
Pressing the top button will advance to option 52.
The number "52" will appear on the left of the LED
display. This option allows the user to set how long
(in minutes) that the information display from the
diagnostic will stay on the clock. Pressing the bot-
tom button will scroll from "00-60". Pressing the
top button will go back to the displayed time.
