Setting Limits: via Transmitter
The GDO-11v1 has the unique ability to set travel
limits using the transmitter, allowing the installer to
move around the garage and door to better assess the
desired close and open limit positions.
Step 15.1 - Power Up and Set the Datum
a. Follow Steps 14.1 to 14.3 as outlined overleaf.
Observe all warnings!
Step 15.2 - Code a Transmitter for Limit Setting

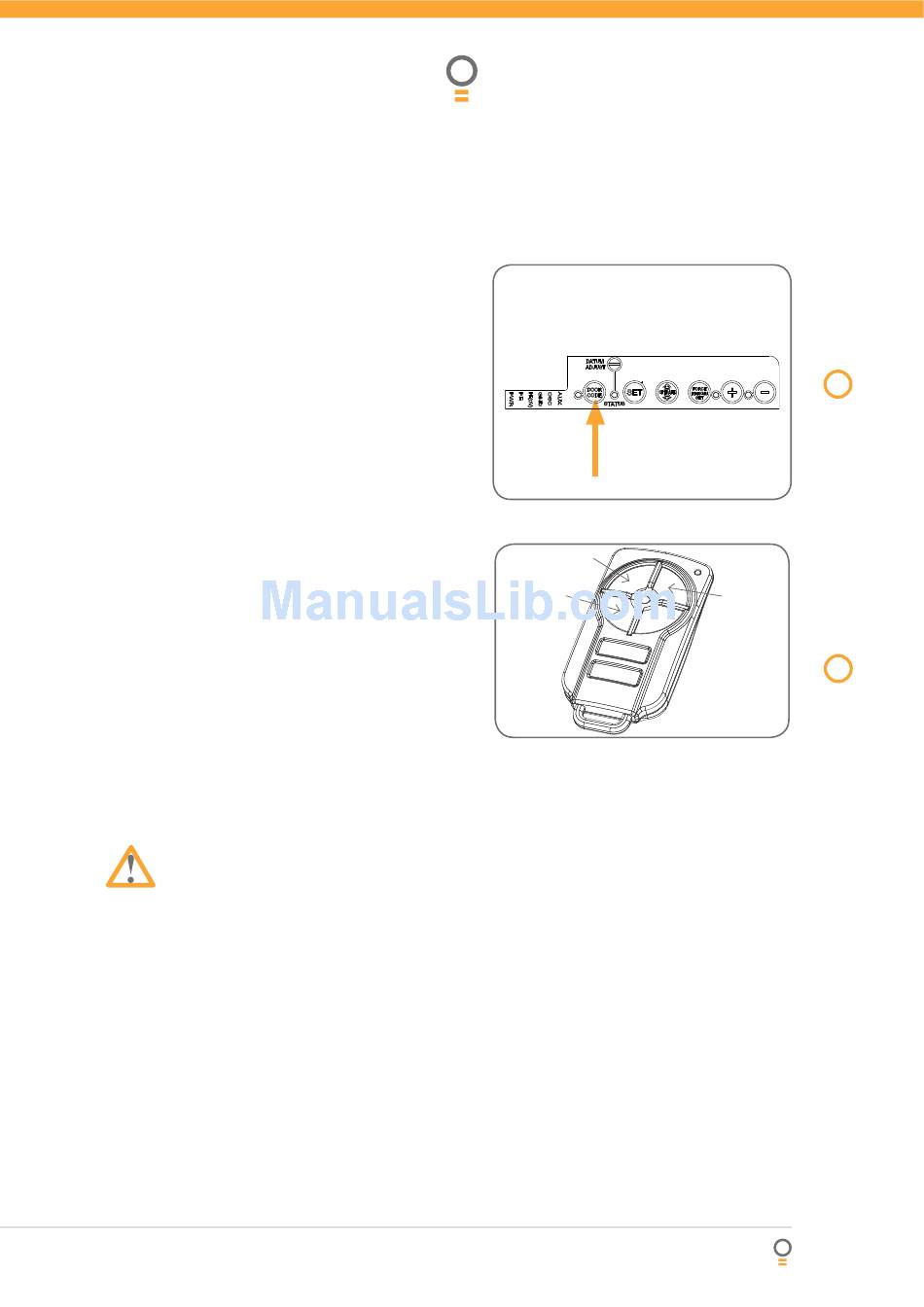

a. Press and hold the DOOR CODE button (Fig. 31).
b. Press Button 1 on the transmitter for two seconds
(Fig. 32). Release and pause for two seconds. Press
the same button again on the transmitter for two
seconds.
c. Release the DOOR CODE button.
Step 15.3 - Setting Limits via Transmitter
a. Press and hold Button 4 on the transmitter to close
the door. When the door is approx. 2 cm from the
ground, release button 4.
b. A brief press of Button 4 will allow you to "inch" the
door closed. Keep doing this until the door reaches
the desired close limit position.
If the door is closed too far, press Button 1
»
to "inch" the door towards open
c. When happy with the close limit position, press
Button 2 to store this in memory.
d. Press Button 1 to open the door. When approx. 2
cm from the desired open position, release button
1.
e. A brief press of Button 1 will allow you to "inch" the
door open. Keep doing this until the door reaches
the desired open limit position.
» If the door is opened too far, press Button
4 to "inch" the door towards close.
IMPORTANT WARNING:
automatically close, open and close again once
Step 15.3 (f) is performed. Ensure that no persons
or objects are in the door's path.
f. When happy with the open limit position, press
Button 2 on the transmitter to store into memory.
g. The door will now automatically close ,open and close
to calculate the safety obstruction settings.
this, the opener can be operated with the OPERATE
button.
Step 15.4 - Resetting the Door Limit Positions
Limit positions can be deleted by the following steps:
a. Follow Steps 14.5 (a) and (b), as outlined overleaf.
b. Repeat Steps 15.1 and 15.3 to set new travel limit
positions.
» There is no need to re-code the transmitter
(Step 15.2) upon resetting travel limits. The
transmitter will still be stored in memory.
Button 4
(Inch Close)
The door will
After
Owner Installation Instructions
Button 1
(Inch Open)
GDO-11v1 SecuraLift ®
fi g 31
Button 2
(Set)
fi g 32
19
