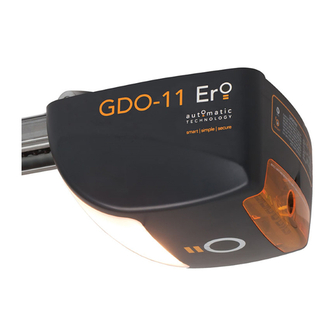

- Page 1 GDO-11v1 Ero™ Overhead Garage Door Opener Featuring TrioCode ™ Technology Technical Document Installation Manual 1.04 14 Dec 2011 English Part # 13246 (Manual)
- Page 2 Please save these instructions for future reference. Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an Automatic Technology (Australia) Pty Ltd Overhead Door Opener.
-
Page 3: Table Of Contents
Default Settings & Specifi cations Coding Transmitters Parameters Door Door Status Indicators Vacation Mode Auxiliary Out Put Button Functions Pet Mode Troubleshooting Guide Maintenance Courtesy Light Parts Listing Remotely Coding Transmitters Warranty Erasing Transmitter Codes GDO-11v1 Ero ® Owner Installation Instructions... -
Page 4: Important Safety Instructions

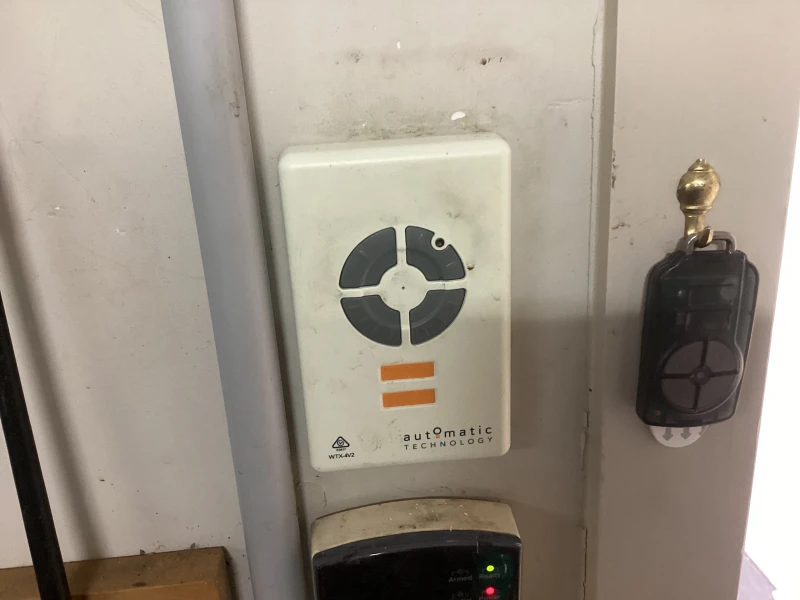

(PE) Beam. In most countries PE Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay Automatic Technology recommends that Photo Electric Beams be installed with the automatic opener ensuring additional safety and peace of mind. - Page 5 Install the (optional) wall switch or (optional) wall mounted transmitter in a location where the garage door is visible, but out of the reach of children at a height of at least 1.8 metres from the fl oor. GDO-11v1 Ero ® Owner Installation Instructions...
-
Page 6: Features
Features Thank you for purchasing the Automatic Technology GDO-11v1 Ero™ Overhead Garage Door Opener. Designed to suit sectional overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of smart, simple and secure operation. Listed below... - Page 7 This allows for manual operation of the door. To re-engage the opener, pull the string handle away from the door. GDO-11v1 Ero ® Owner Installation Instructions...
-
Page 8: Operating Controls
10A FUSE PROG INPUT is used to connect the Automatic Technology Handheld Programmer “PG-3” for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. - Page 9 fi g GDO-11v1 Ero ® Owner Installation Instructions...
-
Page 10: Kit Contents
Kit Contents GDO-11v1 Multipiece C Rail And Accessory 1 x GDO-11v1 Ero™ drive unit (Fig. 2) 1 x TrioCode™ Transmitter pack (Fig. 2) (Pack includes 1x four button keyring transmitter and 1x two button keyring transmitter with batteries) 2 x Door attachment arms (Fig. 2) fi... -
Page 11: Installation
Join to chain index with chain links ( supplied ) (Fig. 07). fi g Idler pulley Shuttle with hole side toward the door fi g GDO-11v1 Ero ® Owner Installation Instructions... - Page 12 Knockdown C-Rail Assembly Note: Use the 12 teeth sprocket with GDO-11v1 Ero™. Engage the shuttle with the chain index and move shuttle assembly to the centre of track. Make sure the chain is engaged into the sprocket and also wrapped around the centre of the pulley.
-
Page 13: C-Rail Attachment
Rail’s sprocket (Fig. 11). Fix the two track brackets with four screws supplied in accessory pack (Fig. 12). fi g Locate shaft into sprocket Mushroom Head Screw Taptite ‘S’ M4 x 8 Track bracket (x2) fi g GDO-11v1 Ero ® Owner Installation Instructions... -
Page 14: Determine Door Type
Step 4. fi g One piece door with track For a one-piece door without tracks (on springs) (Fig. 15) proceed with the installation from Step 8. Door fi g One piece door without track GDO-11v1 Ero ® Owner Installation Instructions... -
Page 15: Mounting On A Track Type Door
Connect the drive unit to the ceiling mounted perforated angle with M8x20mm screws and nuts. Strips should not extend more than 18mm below fi g centre of drive unit mounting holes. Go to Step 12 on page 17. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 16: Mounting - Spring Loaded Door
Steel Rail The opener can be fastened to the roof by driving a bolt through the C-Rail into a structural timber support. The Shuttle Assembly bolt head’s height must not exceed 6mm (Fig. 23). GDO-11v1 Ero ® Owner Installation Instructions... -
Page 17: Mounting Door Bracket & Arms
If installing on a door with a bad wave action, lengthening the arm will assist in reducing this effect. IMPORTANT NOTE: Adjust the length of the fi g cord so that its toggle is no more than 1.8m from the ground. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 18: Programming The Opener
Press and hold the MINUS (-) button for six (6) seconds until you hear three beeps and the CLOSE LIMIT LED starts to fl ash. Release the CLOSE button. Repeat Steps 14.1 to 14.4 to set new travel limit positions. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 19: Setting Travel Limits - Transmitter
Programming The Opener Setting Limits - Via Transmitter The GDO-11v1 Ero™ has the unique ability to set travel limits using the transmitter, allowing the installer to move around the garage and door to better assess the desired close and open limit positions. -
Page 20: Safety Obstruction Forces
DANGER! If the door fails these tests, put the opener into manual mode, only operate the door by hand and call for service. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 21: Adjusting Safety Obstruction Forces
fi g on the position of the door and the power up condition). A single beep will be heard once the process is complete. Test the force again as per Steps 16.1 and 16.2. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 22: Coding Transmitters
Press one of the four buttons on the transmitter for two (2) seconds, pause for two (2) seconds, then press the same button again for two (2) second. Release the DOOR CODE button. Press the transmitter button to test. fi g GDO-11v1 Ero ® Owner Installation Instructions... -
Page 23: Pet Mode
(2) seconds, pause for two (2) seconds, then press the same button again for two (2) seconds. Release the DOOR CODE button. Press the transmitter button to test the courtesy light. fi g GDO-11v1 Ero ® Owner Installation Instructions... -
Page 24: Remotely Coding Transmitters
CODING LED will illuminate. fi g Release the DOOR CODE BUTTON. All stored codes will now be deleted. Confi rm this pressing buttons on any previously coded transmitters - the opener should not respond. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 25: Accessories
fi g Step 21 - Key Switch Connection 30V PWR GDO-11v1 Ero™ has the input to connect bell PE (0V) switch or key switch to open or close the door. Connect the key/bell switch as per diagram (Fig. -
Page 26: Battery Backup Installation
Mount the brackets RA (item no 9) to Battery normal. Backup with item 7 and 8. Secure the Battery Backup to GDO-11v1 Ero™ with NOTE: Wait for the door to complete its travel. 2 screws item no 5. Feed the SBY-3 battery harness (item no 3 ) through... -
Page 27: Smartsolar™ Installation
Refi t the light diffuser and main cover. Step 24.4 - Re-setup and Test the Opener Setup travel limits and code transmitters as per the GDO-11v1 Ero™ instruction manual. Press either the OPERATE button or use a transmitter to operate the opener. -
Page 28: Final Setup
Press and hold the SET Button (Fig 56). Turn power on while holding the SET button. Continue to hold until all the LED’s are off. NOTE: This will not erase transmitter codes stored in the memory. fi g GDO-11v1 Ero ® Owner Installation Instructions... -
Page 29: Default Settings & Specifi Cations
NOTE: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure on the door and tracks which may in turn trigger the safety obstruction detection system intermittently. PE Beams should be fi tted as added safety in case of entrapment. GDO-11v1 Ero ® Owner Installation Instructions... -
Page 30: Parameters
Deletes all transmitter storage memory are off SET & DOOR CODE (the power on) and hold until all Deletes all control parameters and transmitter LED’s are off storage memory. Re-initialises the Opener to re-calculate force margin GDO-11v1 Ero ® Owner Installation Instructions... -
Page 31: Troubleshooting Guide
In such an instance please contact your Automatic Technology dealer for an alternative frequency replacement kit. As this is not a warrantable situation but an environmental issue. Charges may apply for the changeover. -
Page 32: Maintenance
Maintenance Yearly Whilst your opener does not require any periodic Automatic Technology suggests you contact your installer maintenance, the door that it is fi tted to, does. to perform an annual door service. Your garage door is a large, heavy, moving object... -
Page 33: Parts Listing
Parts Listing GDO-11v1 Ero ® Owner Installation Instructions... -
Page 34: Warranty
Warranty and Exclusion of Liability 1. This Warranty is given by Automatic Technology (Australia) (h) the operating force exceeding 15kg* (150 Newton) when moving Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, the door manually to the open or closed position;... - Page 35 GDO-11v1 Ero ® Owner Installation Instructions...
- Page 36 © December 2011 Automatic Technology (Australia) Pty Ltd. All rights reserved. TrioCode™ and Ero™ are trademarks of Automatic Technology (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE.
