Summary of Contents for Automatic Technology GDO-9v2 SecuraLift

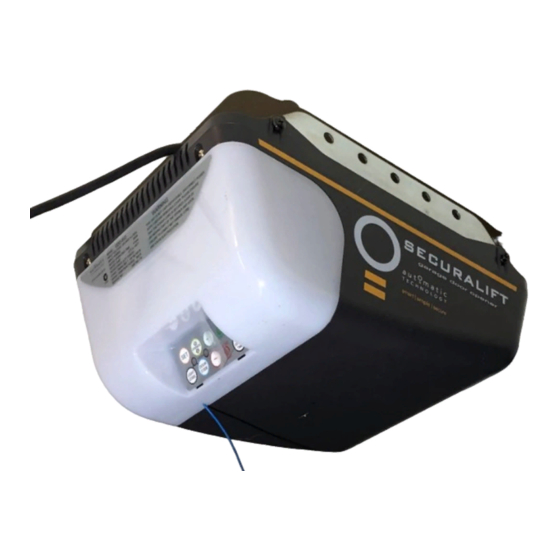

- Page 1 GDO-9v2 SecuraLift ® Overhead Garage Door Opener Featuring TrioCode ™ Technology Part # 13212 (Manual) INSTALLATION INSTRUCTIONS | OWNERS COPY...
- Page 2 Automatic Technology (Australia) Pty Ltd Garage Door Opener in accordance with these installation instructions.
-
Page 3: Table Of Contents
Adjusting Safety Obstruction Forces 20 Re-Initialising Coding Transmitters Parameters Door Default Settings & Specifi cations Courtesy Light Door Status Indicators Pet Mode Troubleshooting Guide Maintenance Record Vacation Mode Remotely Coding Transmitters Parts Listing Erasing Transmitter Codes Warranty GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 4: Important Safety Instructions
Beam. In most countries P.E. Beams are mandatory on all garage doors fi tted with automatic openers. For a small additional outlay Automatic Technology recommends that Photo Electric Beams be installed with the automatic opener ensuring additional safety and peace of mind. - Page 5 If the power supply cord is damaged, it must be replaced by an Automatic Technology service agent or suitably qualifi ed person. Make sure that the door is fully open before driving in or out of the garage and fully closed before leaving the driveway.
-
Page 6: Features
Features Thank you for purchasing the Automatic Technology ® GDO-9v2 SecuraLift Overhead Garage Door Opener. Designed to suit sectional overhead and one piece tilt up doors, the components and materials used ensure this opener will provide years of smart, simple and secure operation. Listed... - Page 7 This allows for manual operation of the door. To re-engage the opener pull the string handle away from the door. GDO-9v2 SecuraLift ® Owner Installation Instructions...
-
Page 8: Operating Controls
PLUS (+) or MINUS (-) buttons will increase or decrease the amount of force. The Force Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation. J13 CONNECTOR onto this the shunt supplied with SmartSolar™ kit must be fi tted for solar operation. GDO-9v2 SecuraLift ® Owner Installation Instructions... - Page 9 PROG INPUT is used to connect the Automatic Technology Handheld Programmer for editing control and receiver functions, accessing diagnostic tools, and activating special features and operating modes. SBY-3 CONNECTOR is used to connect both Battery Back Up Kits and SmartSolar™ kits.
-
Page 10: Kit Contents
Kit contents Drive Unit 1 x GDO-9v2 SecuraLift® Trio drive unit (Fig. 01) 1 x TrioCode™ Transmitter pack (Fig. 01) (Pack includes two keyring transmitters and batteries) 1 x Wall mount transmitter with battery (Fig. 01) 2 x Door attachment arms (Fig. 01) fi... -
Page 11: Installation
1/2” hex bolt to tension chain. Recommended pull force: 8kg (80N) Step 1 - Knockdown C-Rail Assembly Unpack and assemble the C-Rail as shown above in Fig 04. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 12: C-Rail Attachment
Fix the two track brackets with four screws supplied in accessory pack (Fig. 07). Shaft fi g Locate shaft into sprocket Hex fl ange screw taptite ‘S’ M4 x 10 Track bracket (x2) fi g GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 13: Determine Door Type
Step 5. fi g One piece door with track For a one-piece door without tracks (on springs) (Fig. 10) proceed with the installation from Step 9. Door fi g One piece door without track GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 14: Mounting On A Track Type Door
Connect the powerhead to the ceiling mounted perforated angle with M8x20mm screws and nuts. fi g Strips should not extend more than 18mm below centre of powerhead mounting holes. Go to Step 14 on page 14. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 15: Mounting - Spring Loaded Door
The opener can be fastened to the roof by driving a bolt Aluminium rail through the C-Rail into a structural timber support. The Shuttle VP2 assembly bolt head’s height must not exceed 6mm (Fig. 14). GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 16: Mounting Door Bracket & Arms
If installing on a door with a bad wave action, lengthening the arm will assist in reducing this effect. IMPORTANT NOTE: Adjust the length of the cord so that its toggle is no more than 1.8m from the ground. fi g GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 17: Programming The Opener
To reset the limits press and hold the MINUS (-) button for 6 seconds until the CLOSE LIMIT LED fl ashes quickly. If no action is taken within 30 seconds, the opener will return to normal operating mode and restore the original settings. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 18: Setting Travel Limits - Transmitter
Repeat Steps 16.1 and 16.3 to set new travel limit positions. » There is no need to re-code the transmitter (Step 16.2) upon resetting travel limits. The transmitter will still be stored in memory. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 19: Safety Obstruction Forces
DANGER! If the door fails these tests, put the fi g opener into manual mode, only operate the door by hand and call for service. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 20: Adjusting Safety Obstruction Forces
(4) times (depending on the position of the door and the power up condition). A single beep will be heard once the process is complete. Test the force again as per Steps 8.1 and 8.2. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 21: Coding Transmitters
Release LIGHT CODE and MINUS (-) buttons. To test, press and hold the transmitter button for fi ve seconds to set Vacation Mode. To reset Vacation Mode press the same button for two seconds. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 22: Remotely Coding Transmitters
These LED’s will turn off and the CODING LED will illuminate. Release the DOOR CODE BUTTON. All stored codes will now be deleted. Confi rm this pressing buttons on any previously coded transmitters - the opener should not respond. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 23: Accessories
OPEN LIMIT LED will fl ash to indicate that Auto- close mode is operational. Break the P.E. Beam’s path momentarily to initialise Auto-close. When the door reaches the fully opened position, the door will pause for the set Auto-close time and then close. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 24: Smartsolar™ Installation
Refi t the light diffuser and main cover. Step 24.4 - Re-setup and Test the Opener Setup travel limits and code transmitters as per the GDO-9 instruction manual. Press either the OPERATE button or use a transmitter to operate the opener. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 25: Battery Back Up Installation
Connect battery harnesses item 3 and 7 together charge. Connect mains power and allow the (Fig 46). batteries to charge. This may take 24 - 48 hours to Reconnect power. reach maximum charge capacity. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 26: Final Set Up
Press and hold the SET Button (Fig 50). Turn power on while holding the SET button. fi g Continue to hold until all LEDs are off. » This will not erase transmitter codes stored in memory. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 27: Parameters
NOTE: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure on the door and tracks which may in turn trigger the safety obstruction detection system intermittently. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 28: Door Status Indicators
Beeps as door moves Opener overloaded Alternating fl ashes Alternating fl ashes Door in open position with Auto- One second fl ashes Close mode selected Pet Mode Engaged Mains power interrupted Rapid fl ashes GDO-9v2 SecuraLift ® Owner Installation Instructions... - Page 29 Deletes all transmitter storage memory are off SET & DOOR CODE (the power on) and hold until all Deletes all control parameters and transmitter LEDs are off storage memory. Re-initialises the Opener to re-calculate force margin GDO-9v2 SecuraLift ® Owner Installation Instructions...
-
Page 30: Troubleshooting Guide
In such an instance please contact your ATA dealer for an alternative frequency replacement kit. As this is not a warrantable situation but an environmental issue charges may apply for the changeover. GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 31: Maintenance Record
• NOTE: If the door does not operate smoothly, call your installer. Service Record Record any maintenance in the following table to assist in any warranty service. Date Service by Signature Invoice No. Amount GDO-9v2 SecuraLift ® Owner Installation Instructions... -
Page 32: Parts Listing
Parts Listing GDO-9v2 SecuraLift ® Owner Installation Instructions... - Page 33 GDO-9v2 SecuraLift ® Owner Installation Instructions...
-
Page 34: Warranty
Trade Practices Act 1974 (Cwth). 2. Subject to all of the matters set out below, Automatic Technology Australia Pty Ltd (“ATA”) warrants: (a) overhead door opener drive units for twenty four (24) months or 5000 cycles, whichever occurs fi rst; and (b) all components and accessories for twelve (12) months, from the date of purchase (specifi... - Page 35 GDO-9v2 SecuraLift ® Owner Installation Instructions...
- Page 36 ® are trademarks of Automatic Technology (Australia) Pty Ltd. No part of this document may be reproduced without prior permission. In an ongoing commitment to product quality we reserve the right to change specifi cation without notice. E&OE. Automatic Technololgy (Australia) Pty Ltd...
